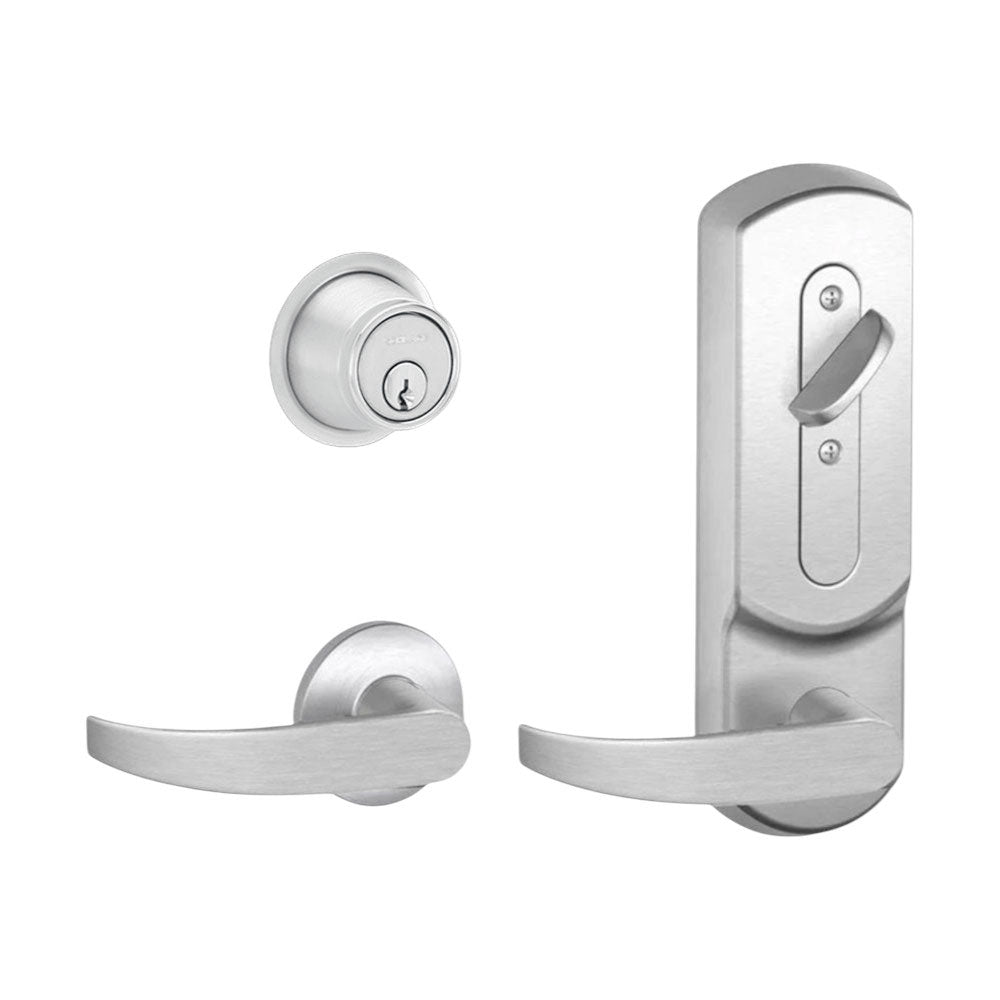

Schlage - CS210-B500PD - Entrance Single Locking Interconnected Lock Conventional 6-pin Cylinder with 1 3/4" Door Thickness - Right Handed - Grade 2 - US26D - Satin Chromium Plated (626)

Schlage - CS210-B500PD - Entrance Single Locking Interconnected Lock Conventional 6-pin Cylinder with 1 3/4" Door Thickness - Right Handed - Grade 2 - US26D - Satin Chromium Plated (626)

The CS210 interconnected lock provides exceptional performance, aesthetics, and flexibility for both residential and commercial applications. The CS210 features single motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish. Eighteen lever designs, two outside deadbolt designs and two inside escutcheon designs - each in a choice of seven finishes - ensure the right aesthetics for whatever type of project. The adjustable escutcheon allows each lock to easily support either 4" or 5-1/2" door preps, eliminating any job-site surprises.

Features and Benefits:

Security:

• Exceeds ANSI/BHMA Grade 2 requirements
• UL listed 3-hour door

Function availability and compatibility:

• Entrance function
• Field configurable for 4" or 5-1/2" door prep
• Compatible with interchangeable core and standard cylinders

Aesthetics:

• 18 lever styles
• 2 deadbolt and escutcheon designs
• 7 available finishes
• Suites with F Series and S Series tubular locks

Certifications:

• Meets BAA (Buy American Act)
• Tested and certified under ANSI/BHMA A156.12, Grade 2
• 3 hour UL fire rating
• Meets ADA requirements

Specifications:

Downloads:

• Specifications Sheet
