Schlage

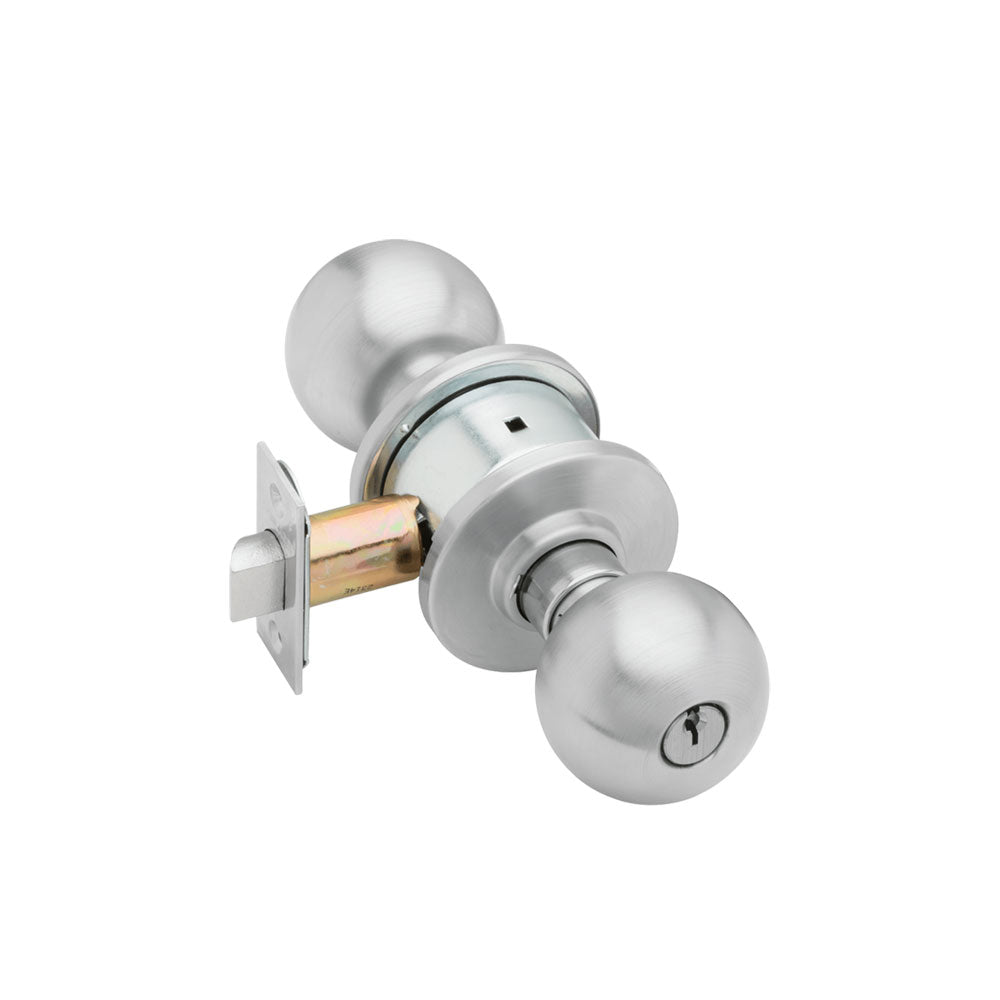

Schlage - A80PD - Storeroom Cylindrical Lock with 6 Pin Conventional Cylinder & Deadlatch - Grade 2
Schlage - A80PD - Storeroom Cylindrical Lock with 6 Pin Conventional Cylinder & Deadlatch - Grade 2
Regular price
$220.15 USD
Regular price
$285.91 USD
Sale price
$220.15 USD
Unit price
per
Couldn't load pickup availability
Schlage - A80PD - Storeroom Cylindrical Lock with 6 Pin Conventional Cylinder & Deadlatch - Grade 2
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | A80PD ORB 626 |
| UID | SCH100A80PDORB626 |
| Unit of Measure | Each |
| Limited Warranty | 3 Years |
| Burglar Rated | No |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| Origin | Mexico |
| Base Material | Brass, Bronze |
| ANSI | F86 |
| Grade | Grade 2 |
| UL Listing | ANSI A156.2-2011, Series 4000, Grade 2, UL Listed |
Technical Specifications:
| Handing | Non-handed |
| Bolt Projection | 1/2" |
| Cylinder Type | Conventional Cylinder |
| # Pins | 6 |
| # of Keys | 2 |
| Key(s) | Cut |
| Std. Latch Type | Deadlatch |
| Bore Hole Diameter | 2-1/8" |
| Function Family | Storeroom |
| ANSI Function | F86 - Storeroom |
| Latch Bore Diameter | 7/8" |
| Std. Latch Backset Dim | 2-3/8" |
| Std. Strike Height | 2-3/4" |
| Std. Strike Width | 1-1/8" |
| Lever/Knob Design Family | Ball Knob |
| Dust Box | Plastic |
| Rose/Escutcheon Dimensions | 2-9/16" |
| Door Thickness | 1-3/8" to 1-7/8" |
| Function | 80-Storeroom Lock |
| Rose/Escutcheon Design | 2-9/16" Rose Diameter |
| Lock Face Size | 2-1/4" x 1" |
| Std. Strike Type | T-Strike |
| Screws | Wood/Metal Screws |
| Lever/Knob Design | ORB - Orbit Knob |
| Std. Latch Number | 11-085 |
| Std. Strike Number | 10-001 |
Download:
