Sargent

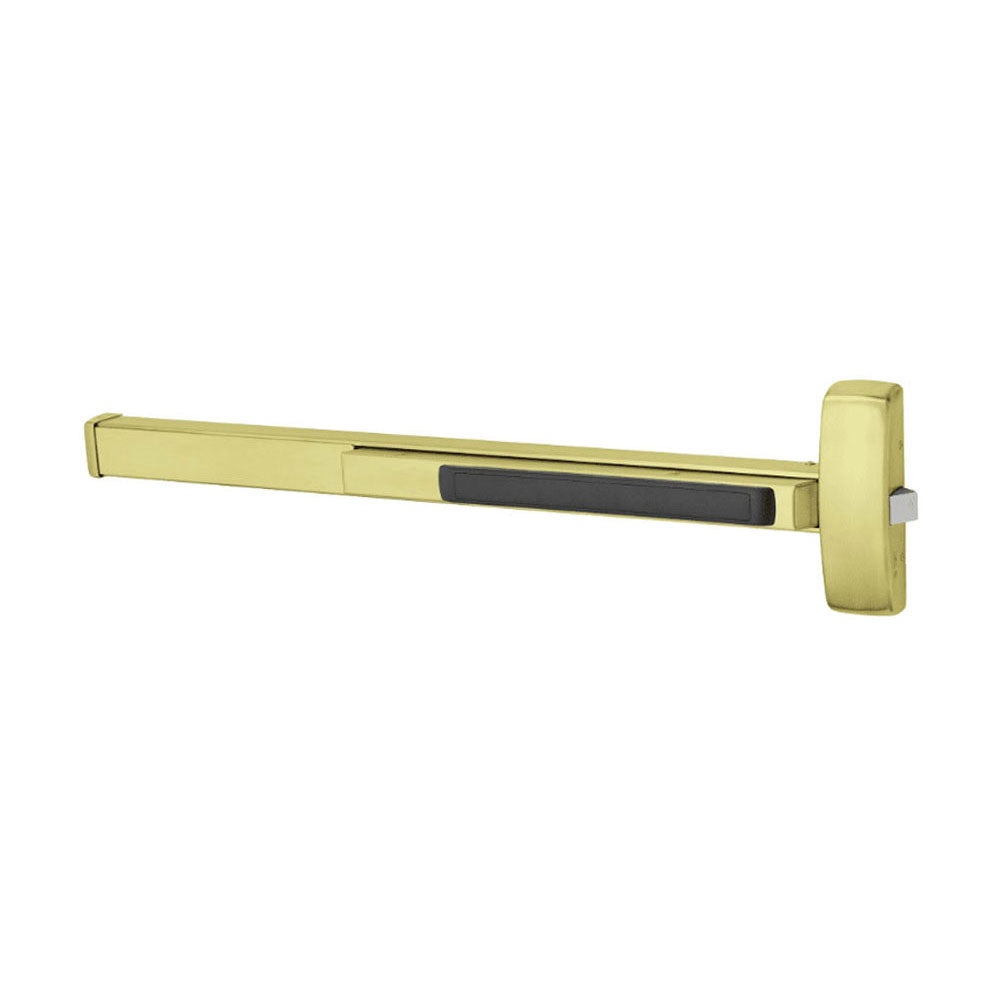

Sargent - 8888F - Multi-Function Rim Exit Devices - Wide Stile Pushpad - Exit Only - Less Dogging - Fire-Rated - 36"- Grade 1

Sargent - 8888F - Multi-Function Rim Exit Devices - Wide Stile Pushpad - Exit Only - Less Dogging - Fire-Rated - 36"- Grade 1

$1,843.47 USD
$2,267.47 USD $1,843.47 USD
Sale Sold out
Color
Cylinder
Handed

Sargent - 8888F - Multi-Function Rim Exit Devices - Wide Stile Pushpad - Exit Only - Less Dogging - Fire-Rated - 36"- Grade 1

The 8800 series is designed for standard width stile applications on wood and metal doors. The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.

Features:
  • Single point rim latching device
  • Single door and double door applications with mullions
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - Grade 1
  • UL Fire and Panic listed
Product Specifications:
Manufacturer Sargent
Grade Grade 1
ADA Compliance No
BAA Qualified Yes
Fire Rating 3 Hours {A}
ANSI ANSI/BHMA A156.3
UL Listing UL10C and UL305
Technical Specifications:
Mechanical Function Exit Only, Accepts Various Trim
Cylinder Cylinder not Included
Physical Appearance Wide Stile Pushpad
Door Thickness 1-3/4" - 2-1/4"
Door Material Metal or Wood
Includes Trim No
Device Length 36"
Minimum Stile Size 4-3/4"
Door Width 33" to 36"
