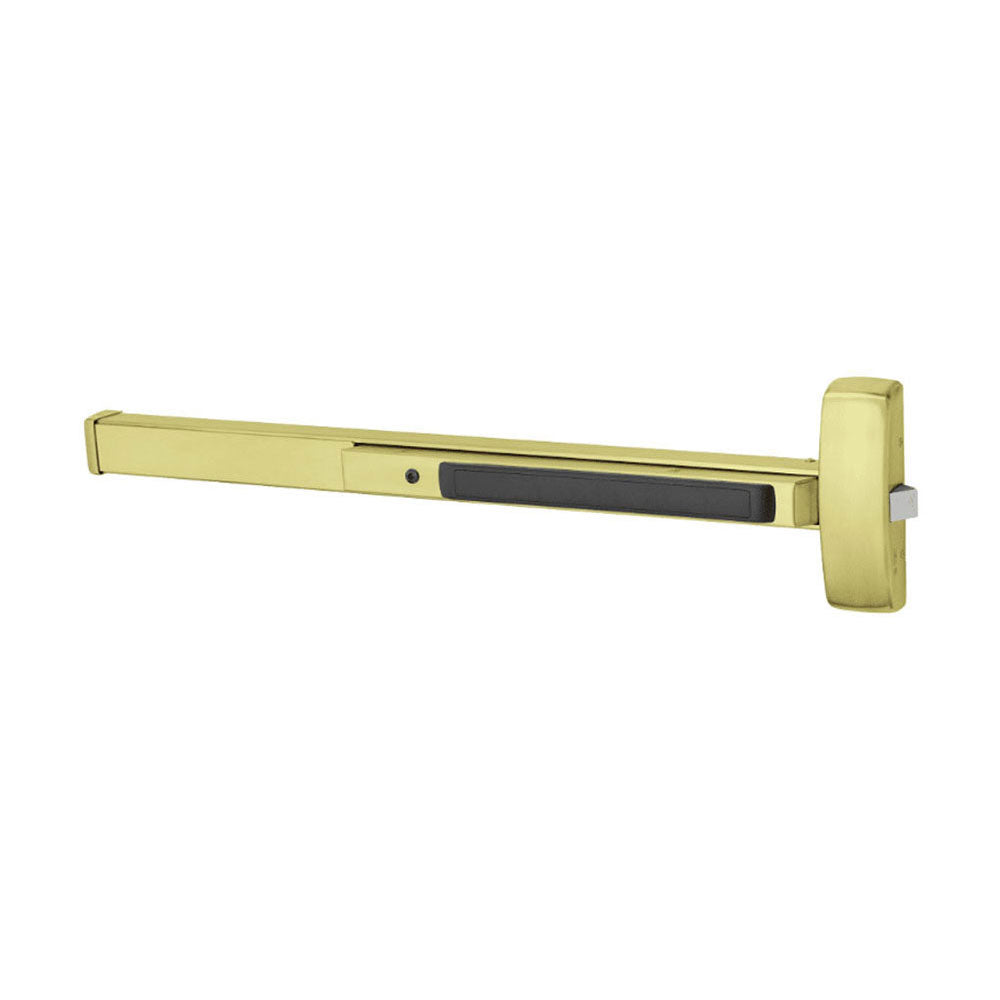

Sargent - 8888F - Multi-Function Rim Exit Devices - Wide Stile Pushpad - Exit Only - Flush End Cap, Hex Key Dogging - 36"- Grade 1
Sargent - 8888F - Multi-Function Rim Exit Devices - Wide Stile Pushpad - Exit Only - Flush End Cap, Hex Key Dogging - 36"- Grade 1
Regular price
$1,512.07 USD
Regular price
$1,859.85 USD
Sale price
$1,512.07 USD
Unit price
per
Couldn't load pickup availability
Sargent - 8888F - Multi-Function Rim Exit Devices - Wide Stile Pushpad - Exit Only - Flush End Cap, Hex Key Dogging - 36"- Grade 1
The 8800 series is designed for standard width stile applications on wood and metal doors. The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Features:
- Single point rim latching device
- Single door and double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
Product Specifications:
| Manufacturer | Sargent |
| Grade | Grade 1 |
| ADA Compliance | No |
| BAA Qualified | Yes |
| Fire Rating | No |
| ANSI | ANSI/BHMA A156.3 |
| UL Listing | UL10C and UL305 |
Technical Specifications:
| Mechanical Function | Exit Only, Accepts Various Trim |
| Cylinder | Cylinder not Included |
| Physical Appearance | Wide Stile Pushpad |
| Door Thickness | 1-3/4" - 2-1/4" |
| Door Material | Metal or Wood |
| Includes Trim | No |
| Device Length | 36" |
| Minimum Stile Size | 4-3/4" |
| Door Width | 33" to 36" |
| Mechanical Options | Flush End Cap |
| Dogging Options | Hex Key Dogging |
Download:
