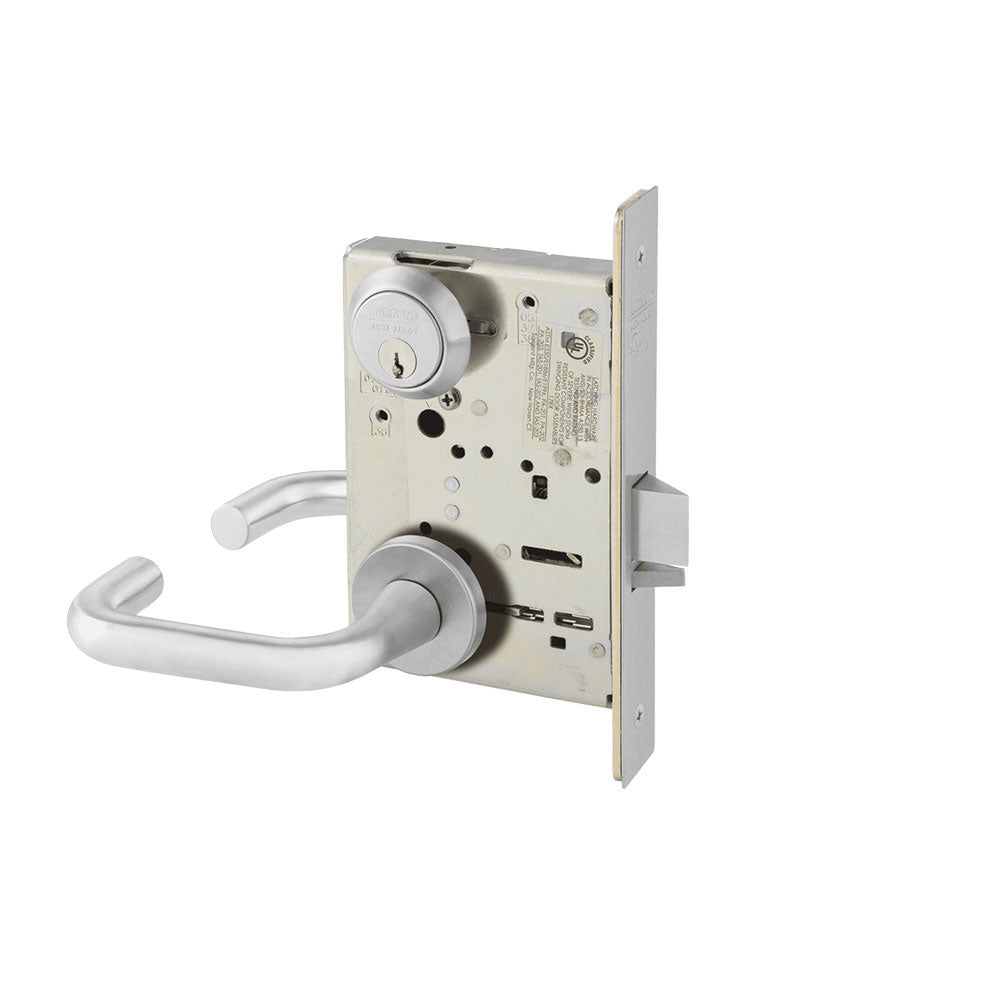

Sargent - 8272 - 12V Electrified Mortise Lock - Double Cylinder - Fail-Safe - Keyed Different - Rose Trim Function - Grade 1

Sargent - 8272 - 12V Electrified Mortise Lock - Double Cylinder - Fail-Safe - Keyed Different - Rose Trim Function - Grade 1

8272 Series Electrified Lever Mortise Locks designed and constructed with high quality components to provide maximum security. The Sargent electrified 8272 series locks represent over a century of innovation and experience in manufacturing hardware and are the industry's benchmark for mortise locks: Strong - Durable - Flexible - Innovative and Secure.

Features:

• Latchbolt retracts in 1/2 of a second with applied power. Removing power allows latch to be projected back to the extended position.
• No heating detectable with extended latch holdback.
• Field reversible for handing.
• Can be used in conjunction with any access control application using standard mortise locks.
• Creates a push/pull operation that satisfies both in-swing and out-swing doors.
• Access controlled via an access control system or by physical key override.
• Environmentally friendly with low power requirements.
• Motorized latch retraction and spring back extension provides quiet operation.
• Smooth latch retraction with applied pressure of over 50lbs to the door.
• Provided with Electrolynx connectors for ease of installation.

Product Specifications:

Technical Specifications:

Download:

• Installation Instruction
