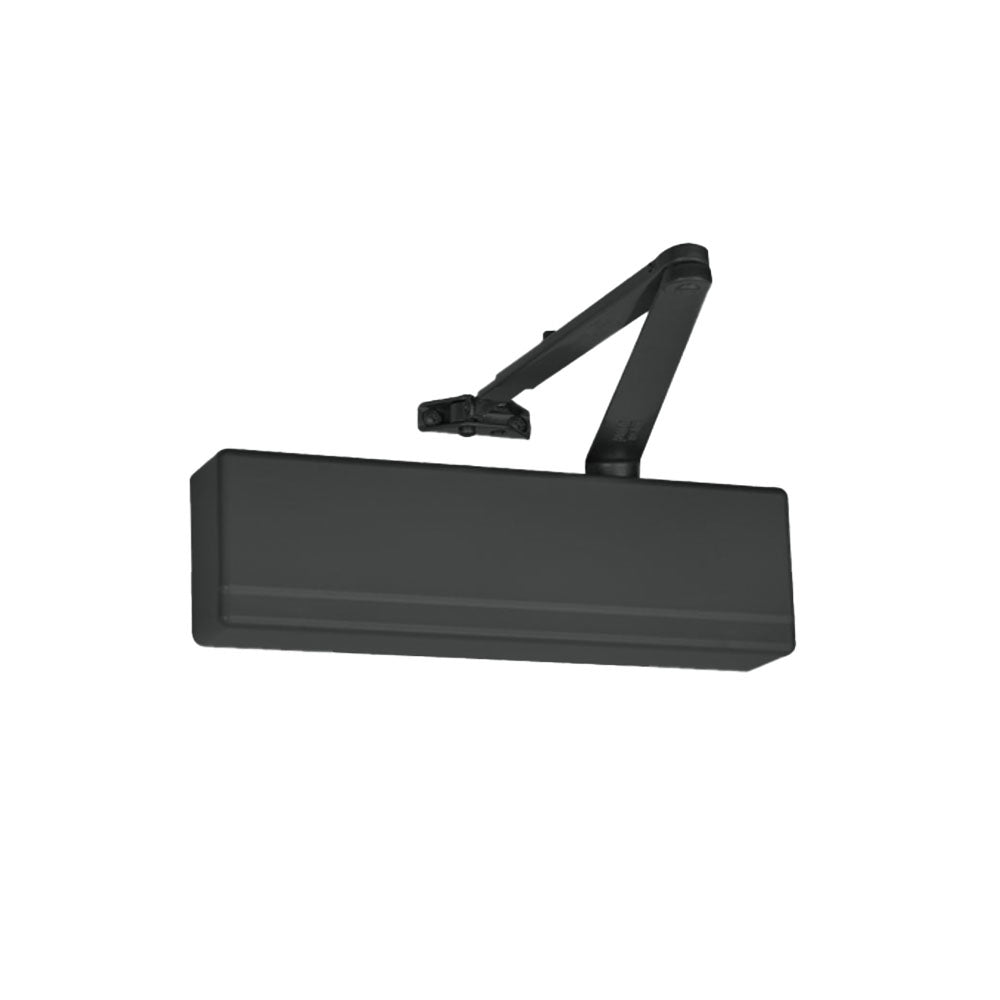

Sargent - 351 - Powerglide Cast Iron Surface Door Closer - Standard and Top Jamb Applications - Plastic Cover - Grade 1 - BSP (Black Suede Powder Coat)

Sargent - 351 - Powerglide Cast Iron Surface Door Closer - Standard and Top Jamb Applications - Plastic Cover - Grade 1 - BSP (Black Suede Powder Coat)

Featuring heavy-duty construction for superior strength and wear resistance, the 351 Series Powerglide Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With a full complement of arm types and front-facing valves, the 351 series can be easily installed and maintained for interior and exterior applications.

• Exceeds 15 Million cycles
• Certified ANSI/BHMA A156.4 Grade 1
• UL 10C listed for positive pressure fire test
• UL / cUL listed for use on fire rated doors
• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
• Self sticking templates supplied for most applications

Benefits:

• Operates effectively in extreme heat and cold without readjustment
• Meets ADA requirements in all applications except push-side track applications
• Versatile mounting permits standard, top jamb, parallel and track installations

Arm Types:

• O - Standard Arm
• RO - Regular Arm
• H - Hold Open Arm
• O8 - Mortise Foot Arm
• H8 - Mortise Foot Hold Open Arm
• OLC - Standard Arm for Low Ceiling
• UH - Universal Hold Arm
• UO - Universal Standard Arm
• ROU - Universal Regular Arm
• OZ - Standard Arm Deep Reveals
• HZ - Hold Open Arm for Deep Reveals
• OZA - Standard Arm for Extra Deep Reveal
• HZA - Hold Open Arm for Extra Deep Reveal

Finish:

• 10BE - Dark Anodized, Satin Bronze
• EB - Sprayed Bronze Enamel to match Dark Satin Bronze
• ED - Sprayed Bronze Enamel to match Dark Statuary Bronze
• EN - Sprayed Aluminum Enamel
• EP - Sprayed Bronze Enamel to match Satin Bronze
• EAB - Sprayed Brass Enamel
• BSP - Black Suede Powder Coat
• WSP - White Suede Powder Coat

Product Specifications:
