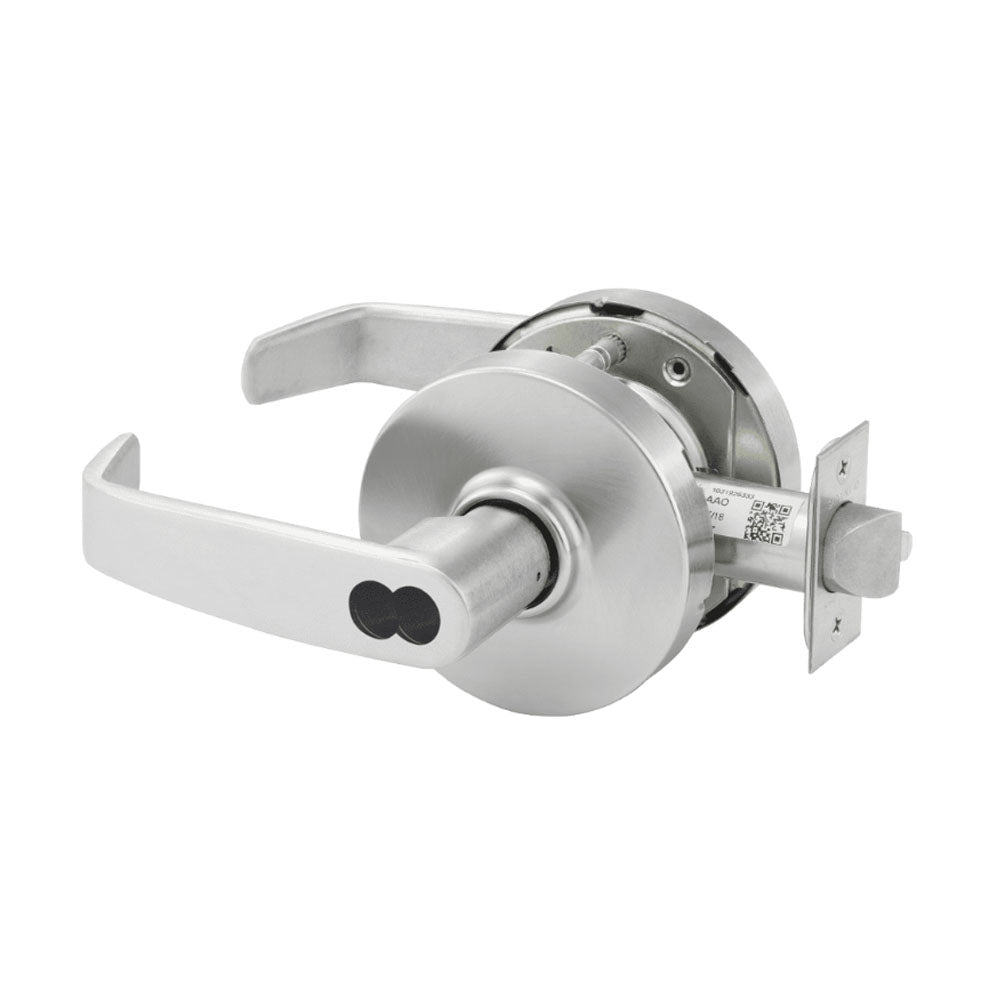

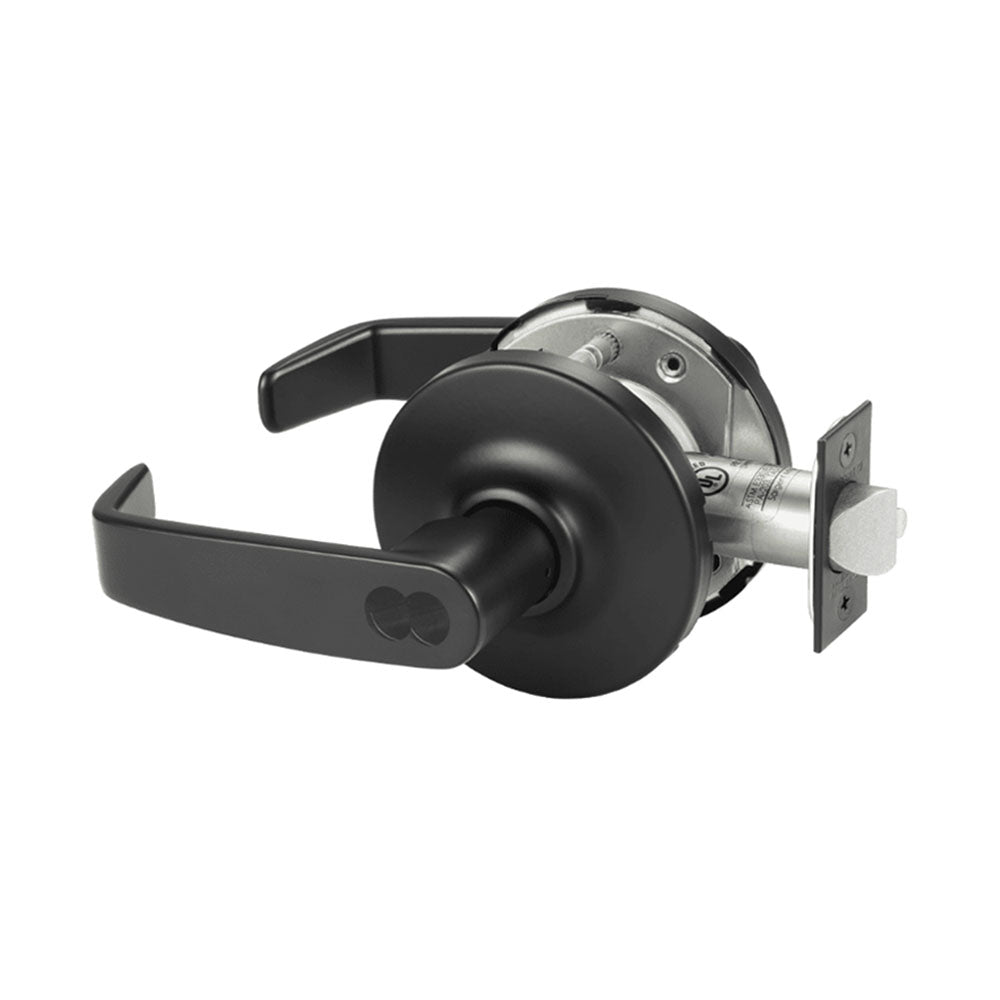

Sargent - 10XG37 - Classroom Cylindrical Lock - L Lever - Grade 1
Engineered to secure and protect high traffic, high abuse spaces, the 10X Line doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its entire lifecycle. EcoFlex technology is now available and represents a significant advancement in sustainability for electrified door openings. With 92% energy savings, the electrified 10X Line bored lock is ideal for electromechanical applications, whether it's used with a Wave to Open, Request to Exit, or Door Position Switches.
Features:
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above and beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility's key systems
Product Specifications:
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| ANSI Number | F84 |
| Manufacturer Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
Technical Specifications:
| Function | 37-Classroom |
| Function Family | Classroom |
| ANSI Function | F37-Classroom |
| Lever/Knob Design | L Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | L Rose G Rose |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 10-2000 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 808 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
