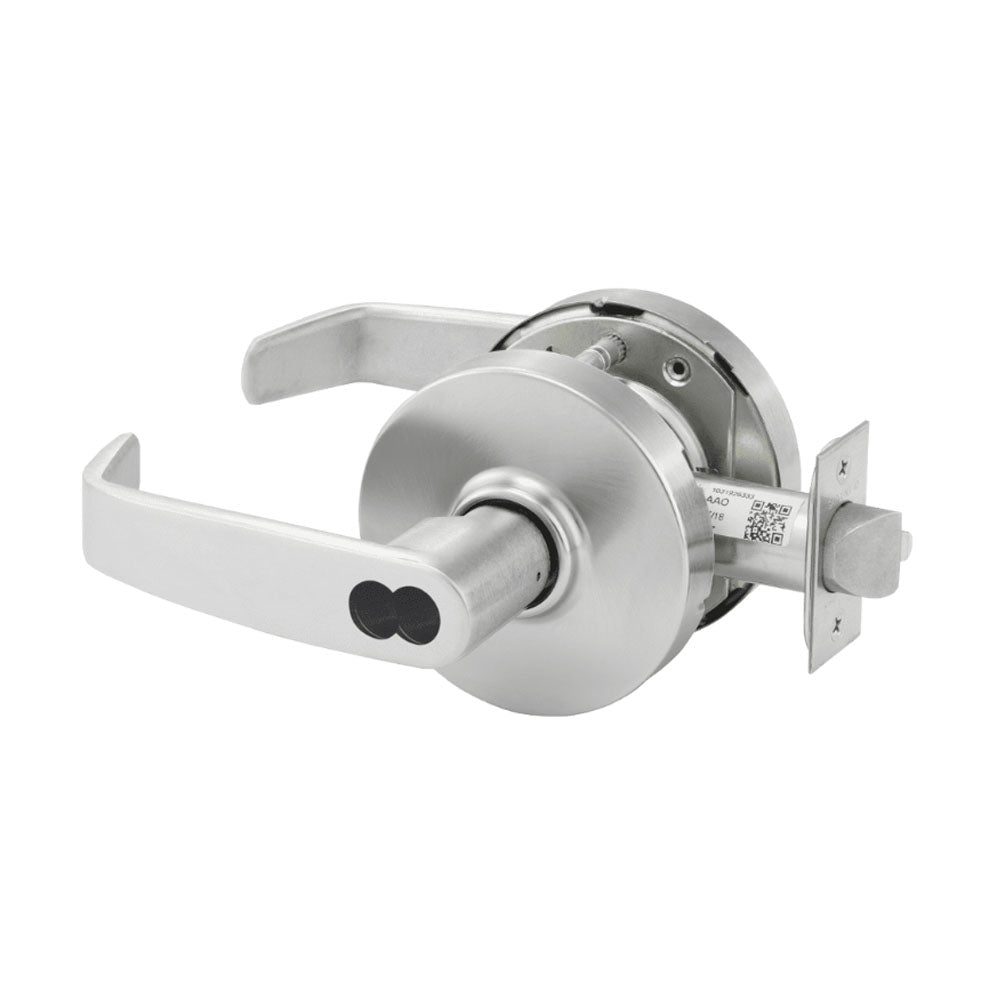

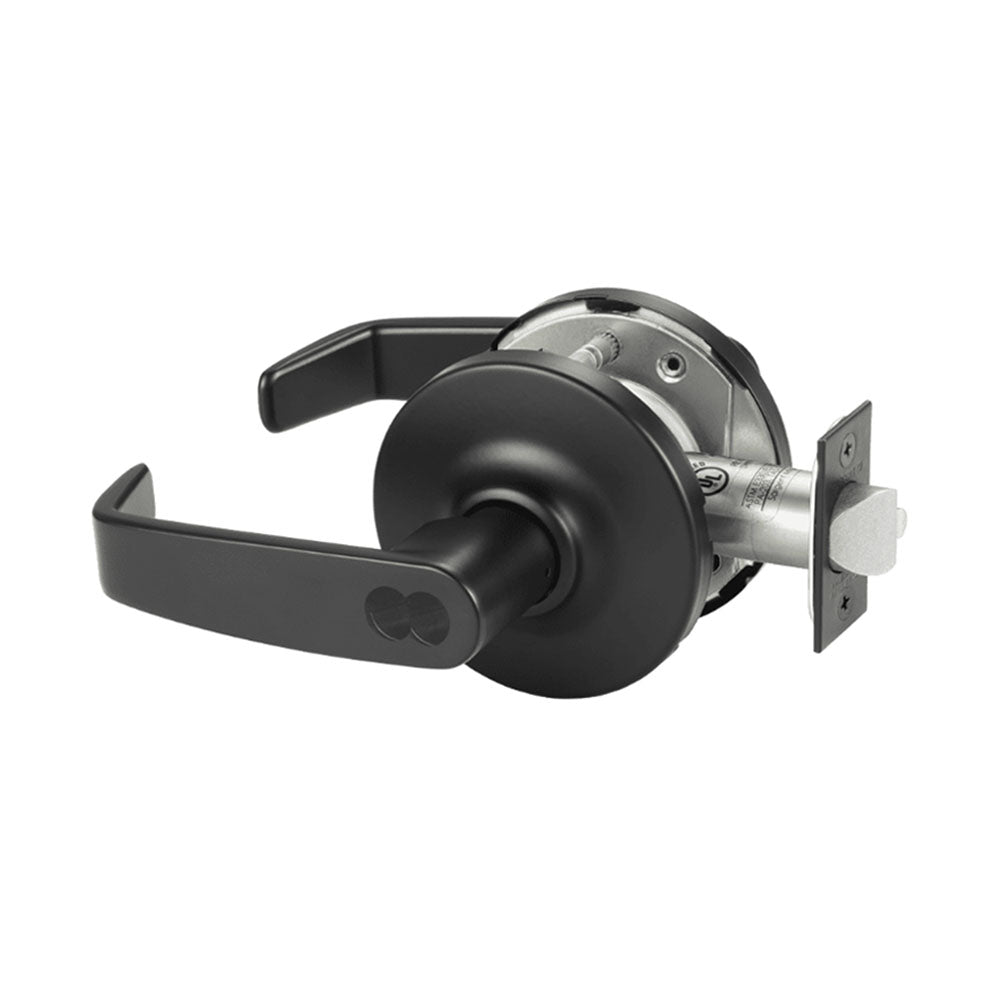

Sargent - 10XG05 - Entrance/Office Cylindrical Lock - L Lever - Grade 1

Sargent - 10XG05 - Entrance/Office Cylindrical Lock - L Lever - Grade 1

$597.91 USD
$735.43 USD $597.91 USD
Sale Sold out
Color
Cylinder
Rose/Escutcheon

Sargent - 10XG05 - Entrance/Office Cylindrical Lock - L Lever - Grade 1

Engineered to secure and protect high traffic, high abuse spaces, the 10X Line doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its entire lifecycle. EcoFlex technology is now available and represents a significant advancement in sustainability for electrified door openings. With 92% energy savings, the electrified 10X Line bored lock is ideal for electromechanical applications, whether it's used with a Wave to Open, Request to Exit, or Door Position Switches.

Features:
  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above and beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility's key systems
Product Specifications:
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
ANSI Number F109
Manufacturer Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Technical Specifications:
Function 05-Entrance or Office
Function Family Entrance
ANSI Function F109 - Entry/Office
Lever/Knob Design L Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design L Rose
G Rose
Rose/Escutcheon Dimensions 3-1/2"
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 10-2000
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 808
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
