Rosslare

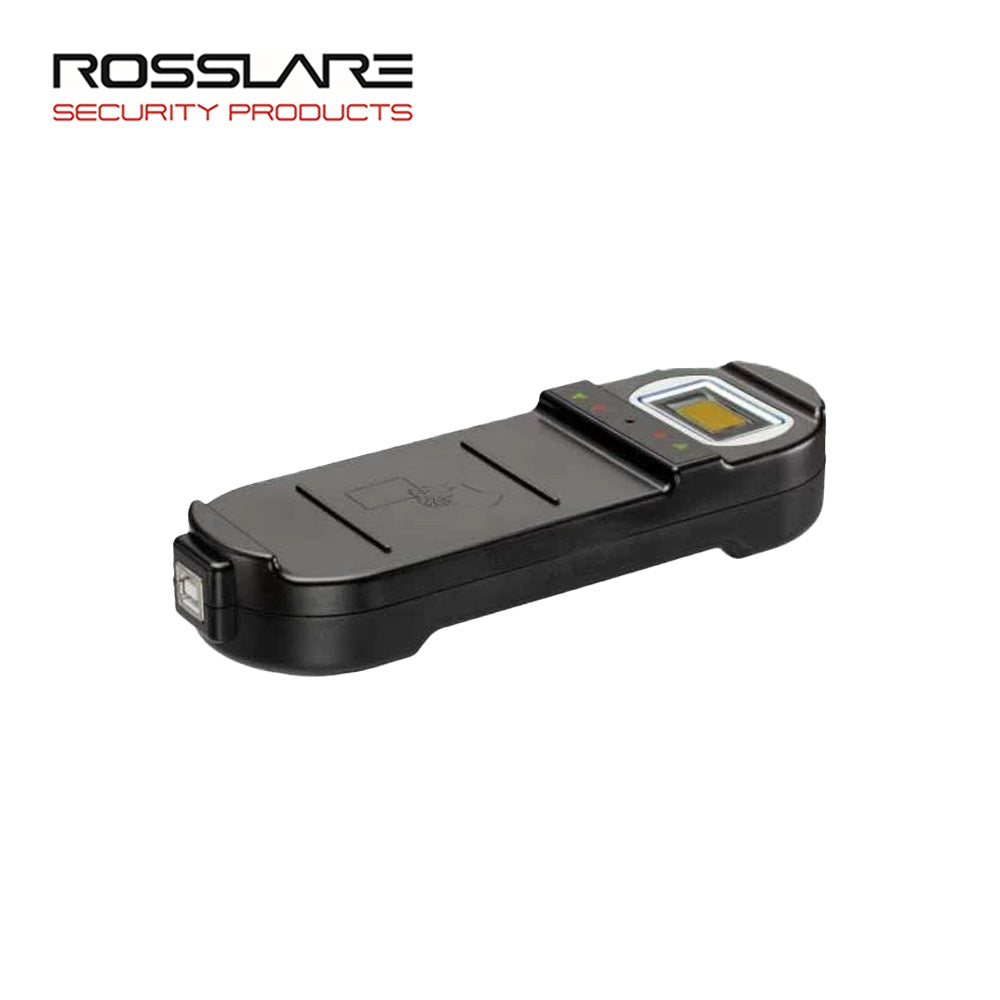

Rosslare - CP-R26 - MIFARE Classic EV1 Card and Fingerprint Desktop Programmer

Rosslare - CP-R26 - MIFARE Classic EV1 Card and Fingerprint Desktop Programmer

$625.06 USD
$1,031.35 USD $625.06 USD
Sale Sold out

Rosslare - CP-R26 - MIFARE Classic EV1 Card and Fingerprint Desktop Programmer

Rosslare's CP-R26 is a sophisticated high-security desktop programmer unit for custom MIFARE Classic EV1 ISO 14443A contactless card applications. This lightweight, sleek designed desktop unit offers high flexibility, easy to use, card programming, fingerprint enrollment and management via Rosslare's PC software AS-B01. CP-R26 is compatible with Rosslare's Sector and Full Fingerprint biometric readers. For best performance we recommend using Rosslare accessories.

Features:
  • Provides content and writing definitions for the sectors.
  • Creates master cards for easy and fast reader configuration.
  • Allows the user to read, program, and verify cards quickly and easily.
  • USB 2.0 computer connection (identified automatically, no drivers needed).
  • LEDs and sounder indicate different activities, including user guidance and success or error indications.
  • Cards types supported: MIFARE Classic EV1 ISO 14443A.
  • Slim and lightweight design, small desktop footprint.
Specifications:
Operating Voltage Range 12 VDC from a USB
Input Current Standby: 155 mA
Maximum: 230 mA
Indicators Card green/red LED: Provides visual feedback on card reading and writing as well as success or fail indication
Fingerprint green/red: Provides visual feedback on card reading and writing as well as success or fail indication
Fingerprint three blue small LEDs: indication for the user to swipe a finger when needed
Sounder: Provides audible indication for guidance as well as
operation success or failure
Operating System Windows xP SP2, Windows Server 2003, Windows Server 2008,
Windows Vista, Windows 7, Windows 8, Windows 10
Processor Minimum 400 MHz Pentium or equivalent
RAM Memory: 512MB
Free Hard Disk space 1 GB
USB One USB 2.0 port
Fingerprint Sensor Type Capacitive type CS
RF Frequency MIFARE Classic EV1 Compatible 1K and 4K ISO-14443A-3
13.56 MHz Card
Dimensions 6.2 x 2.3 x 1.3 in.
Weight 309 g (10.9 oz)
Downloads:
