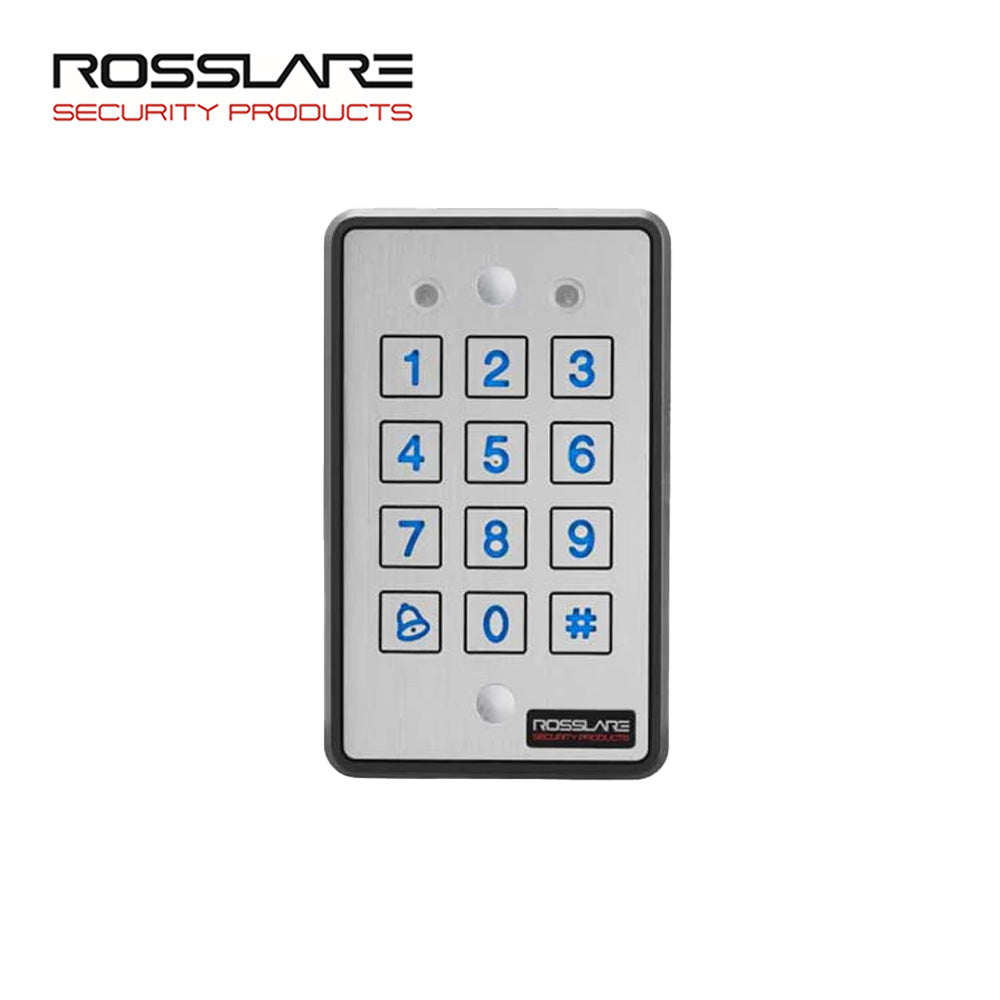

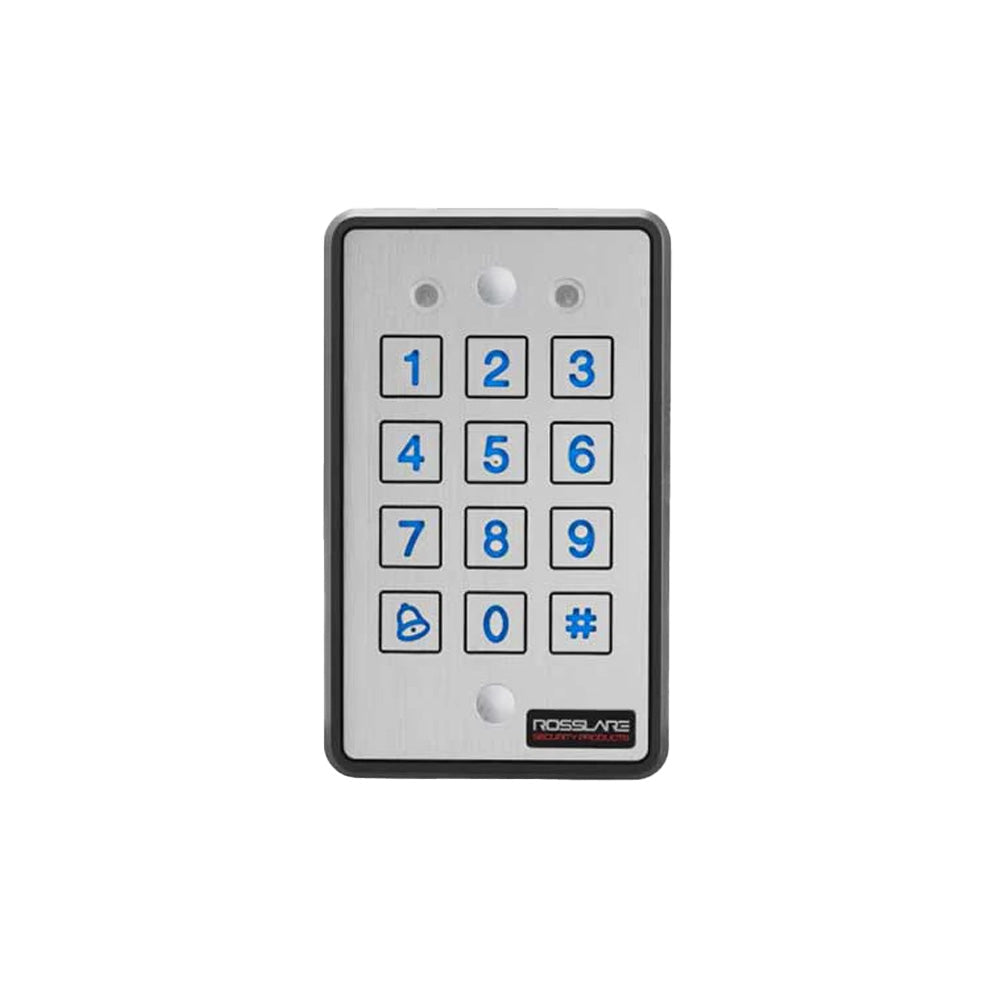

Rosslare - AYC-T65N - Convertible Piezoelectric Proximity & PIN Reader - 5-16VDC - IP68 - Natural

Rosslare - AYC-T65N - Convertible Piezoelectric Proximity & PIN Reader - 5-16VDC - IP68 - Natural

Regular price $233.14 USD
Regular price $384.68 USD Sale price $233.14 USD
Sale Sold out

Rosslare - AYC-T65N - Convertible Piezoelectric Proximity & PIN Reader - 5-16VDC - IP68 - Natural

The AYC-T65N has a smooth metallic surface and high sensitive piezoelectric keys, now combined with illuminated digits and a proximity card reader makes this unit highly attractive for all-weather PIN & PROx access applications. Fully potted in a metal housing, the AYC-T65 offers an attractive yet durable solution for any need This unit can be operated as a keypad reader with any standard controller, and converts into a secure 500-user controller when connected to the PS-x25T intelligent power supply/relay unit.

Features:
  • Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags.
  • Smooth, attractive design, with all-weather indoor and outdoor operation.
  • Large, highly-visible unique illuminated piezoelectric keypad.
  • Optical back tamper detection output.
  • 2 tri-colored LEDs and an integral sounder for programming and operation.
  • User-friendly menu, based on LED and sounder indicators.
  • Back and cover optical tamper detection and output.
  • Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays.
Specifications:
Operating Voltage Range 5-16 VDC
Input Current 92 mA @ 12 VDC,
Input Current Max 105 mA @ 16 VDC
Max Read Range 40 mm
Modulation ASK at 125 kHz
Compatibility All 26-Bit EM Cards
Tamper Open collector, active low, 30 mA max sink current
Keypad 3x4 blue illuminated keys for local programming and 4- to 8-digit PIN codes entry
Design Epoxy-potted, fully-sealed in a rugged thin metal enclosure, highly strong construction and high sensitive piezoelectric keys. Suitable for extremely harsh environments.
LED Control Dry Contact N.O.
Facility Code Programmable
Read Card Format Selectable Wiegand 26-Bit, Clock & Data
PIN Code Formats 8 selectable formats, from 1- to 8-digit length PIN Codes
Controller Capacity 500 users, single/dual PIN code each
User Levels Normal, Secure and Master
Security Modes Normal, Bypass and Secure
Rating Meets IP68
Dimensions 121 x 70 x 8 mm (4.77 x 2.76 x 0.31 in.)
Weight 121 g (0.27 lb)
