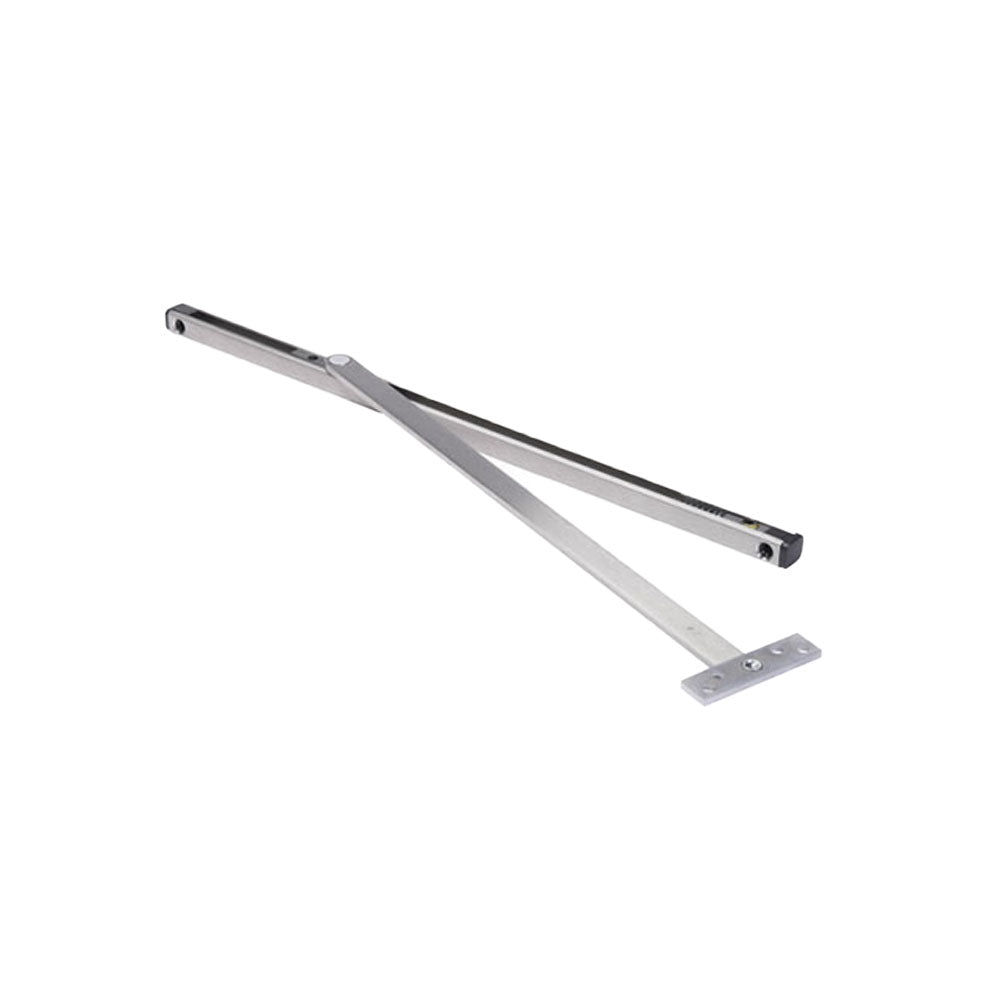

RIXSON - 10-346 - Multi Function Stop / Holder 10 Series with Standard Duty - Aluminum Painted

RIXSON - 10-346 - Multi Function Stop / Holder 10 Series with Standard Duty - Aluminum Painted

Application:

• Interior doors
• Single acting doors
• Non-handed
• Recommended for moderate traffic, medium weight doors

Features:

• Standard duty, adjustable
• Slide track design
• Degree of opening is fully adjustable and can be adapted to changing needs
• Heavy shock absorber spring provides compression before dead stop
• Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in the field. 5012- PKG (Adapter kit) included
• Complete screw packet kit for installation in wood or metal door and frame
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel

Compliance:

• ANSI/BHMA A156.8, Grade 1 Certified
