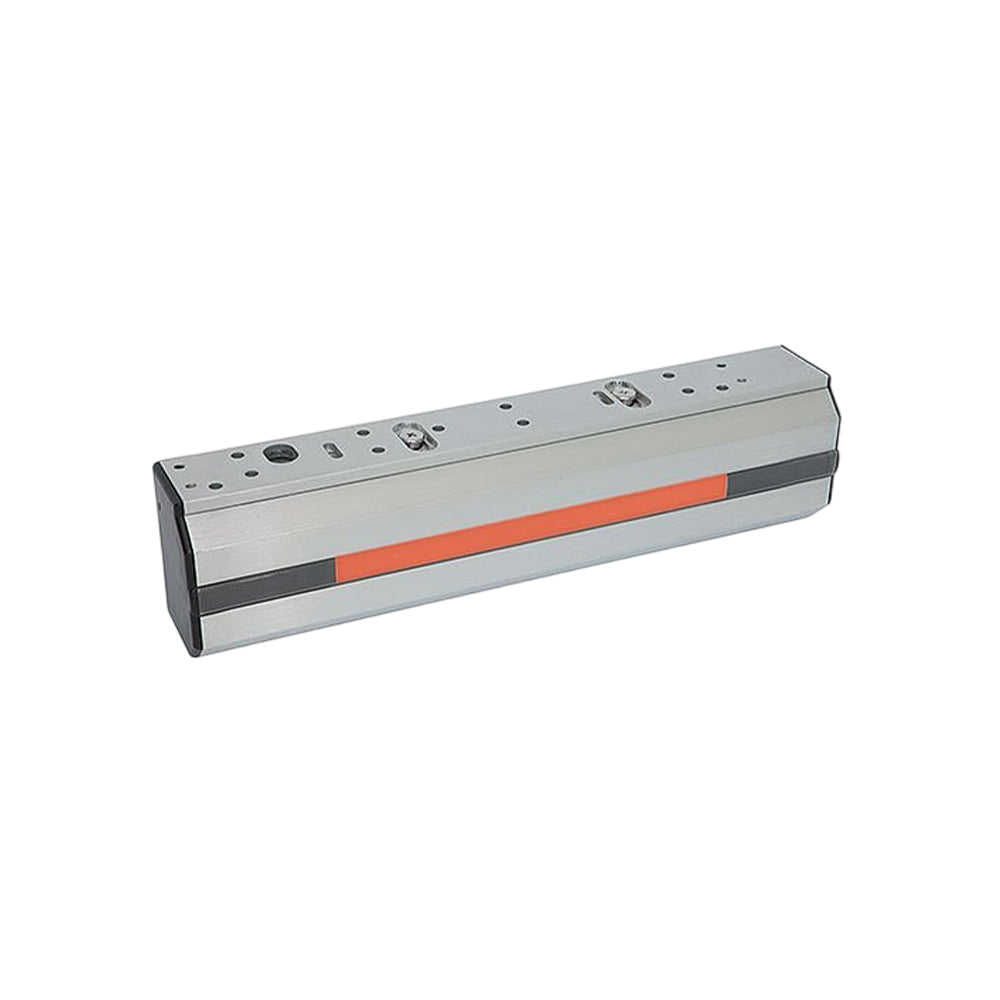

RCI DE8310S Delayed Egress Electromagnetic Lock with Built-in Sounder for Single Door - 12/24VDC - 28 (Brushed Aluminum-689)

RCI DE8310S-28 - Delayed Egress Electromagnetic Lock with Built-In Sounder for Single Door - 12/24VDC - Brushed Aluminum-689

The RCI DE8310 Series Delayed Egress Electromagnetic Locks offer a complete access control solution for single out swinging doors. Featuring a 15 or 30-second release delay and pressure-detection capability, these locks require no modification to existing door hardware. The DE8310 model includes an external sounder, while the DE8310-S features a built-in sounder. Both models support local and remote monitoring via relay outputs and are ideal for loss prevention, life safety, and controlled egress applications.

Features:

• Built-in sensor detects when pressure is applied to outward swinging doors - no need to replace existing door hardware
• Field-selectable 15 or 30 second release delay with field-selectable 0 to 3 second nuisance delay
• Unique highly visible red/green light panel indicates status of door (local)
• Includes 960 Keyswitch for reset and override, Building Code Sign, and base unit (DE8310) includes a 914 External Sounder
• Dry contact SPDT and DPDT relays provided for local and/or remote monitoring
• Keyhole mounting for ease of installation
• Convenient plug-in wiring harnesses
• Easy-access wiring cavity
• Stabilizing 4-bolt "drop stop" mounting
• Surge protection

S - Built-In Sounder:

The built-in sounder emits a slow pulsing tone during the nuisance delay, followed by a continuous tone throughout the release delay. If the door is forced open before the delay period ends, the sounder will continue to sound and cannot be silenced without cutting system power.

Specifications:

Applications:

• Health Care Facilities
• Retail and Wholesale Centers
• Airports
• Public Transit Buildings
• Museums and Galleries

Downloads:

• RCI EC Product Catalog
