PDQ - 6W14 - Wide Stile Escutcheon Exit Device Trim - Passage with Lever and 6300R - Rim Exit Device with Wide Stile and SNB Included - 36" - Grade 1

PDQ - 6W14 - Wide Stile Escutcheon Exit Device Trim - Passage with Lever and 6300R - Rim Exit Device with Wide Stile and SNB Included - 36" - Grade 1

$624.97 USD
$811.65 USD $624.97 USD
Sale Sold out

PDQ - 6W14 - Wide Stile Escutcheon Exit Device Trim - Passage with Lever and 6300R - Rim Exit Device with Wide Stile and SNB Included - 36" - Grade 1

Includes:

PDQ 6300R - Rim Exit Device with Wide Stile and SNB Included - 36" - Grade 1

The 6300R Wide Stile Rim Exit Device, a top-tier solution for secure egress. Engineered with a robust 3/4" Pullman latch, this 6300R rim panic device is ideal for high-traffic areas requiring reliable performance. Perfect for wide stile single door setups or for enhancing security in double door configurations with a mullion, this exit device ensures safety and ease of use.

Designed for seamless integration, the 6300R exit device combines durability with effortless operation, making it the go-to choice for commercial buildings. Its advanced construction provides superior strength and longevity, meeting rigorous safety standards while maintaining an unobtrusive aesthetic.

Features & Benefits:
  • Features cast chassis support to enhances strength
  • The cush spring ensures quiet operation in both directions
  • The compression spring guarantees smooth touch bar return
  • The heavy-duty flush end cap provides superior pry resistance
  • Includes a standard roller strike for seamless functionality
  • Available in 6 finishes: 605(US3), 606(US4), 613(US10B), 622(US19), 626(US26D), 630(US32D)
  • The exit device is Patent Pending
Certifications:
  • It's UL 305 certified
  • It's UL 10C and CAN/ULC-S104 listed for 3-hour fire doors attest to its safety in both single doors up to 4' x 10' and double doors with mullions up to 8' x 8' (single egress pair).
  • Certified to ANSI/BHMA A156.3 Grade 1 standards, this 6300R rim panic device surpasses industry expectations.
  • Its FL #40297 ratings- +60/-65 psf for 16ga Single and +50/-50 psf for 18ga Single-underscore its structural integrity.
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 regulations, ensuring accessibility and usability in diverse building environments.
Specification:
Rail Extruded aluminum
Specify 630F for full stainless surfaces (roll formed)
Latch Stainless steel dead locking with 3/4" throw
Hand Device is non-handed
Trim is non-handed or field reversible
Dogging Hex key dogging standard
Cylinder dogging optional
Dogging not available for fire labeled devices
Minimum Stile Width 6300 - 3-1/2"
6400 - 2-1/8"
Door Thickness 1-3/4" - 2" (Consult factory for other)
Door Width 24", 36", 48" standard
Door Height Panic - Up to 10'
Fire - See fire ratings charts in Product Digest
Strike Default roller
Blade stop
Double door
Windstorm/Fire Mullion - Panic Mullion uses standard roller strike
Finishes 605 - Polished Brass
606 - Satin Brass
613E - Dark Oxidized Satin Bronze (Equivalent)
622 - Flat Black
626 - Satin Chrome
630 - Satin Stainless Steel
630F - Full Stainless Steel
Optional Anti Microbial Coating available on 626 and 630
Fasteners Includes machine and wood screws
SNB - Sex Nuts & Bolts Optional
Warranty Ten (10) year limited warranty
Electrified Option Motorized Latch Retraction
Request to Exit/Signal Switch
Alarmed Exit
Latch Bolt Monitor
ISMC Connectors
Delayed Egress
Certifications, Listings, Compliances Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 3 hours.
Certified to ANSI/BHMA A156.3 Grade 1
FL #40297 +60/-65 psf 4080 16ga Single Compliances, Listings:
FL #+50/-50 psf 4080 18ga Single
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
Meets requirements of the BAA as a COTS product manufactured in the United States
Download:

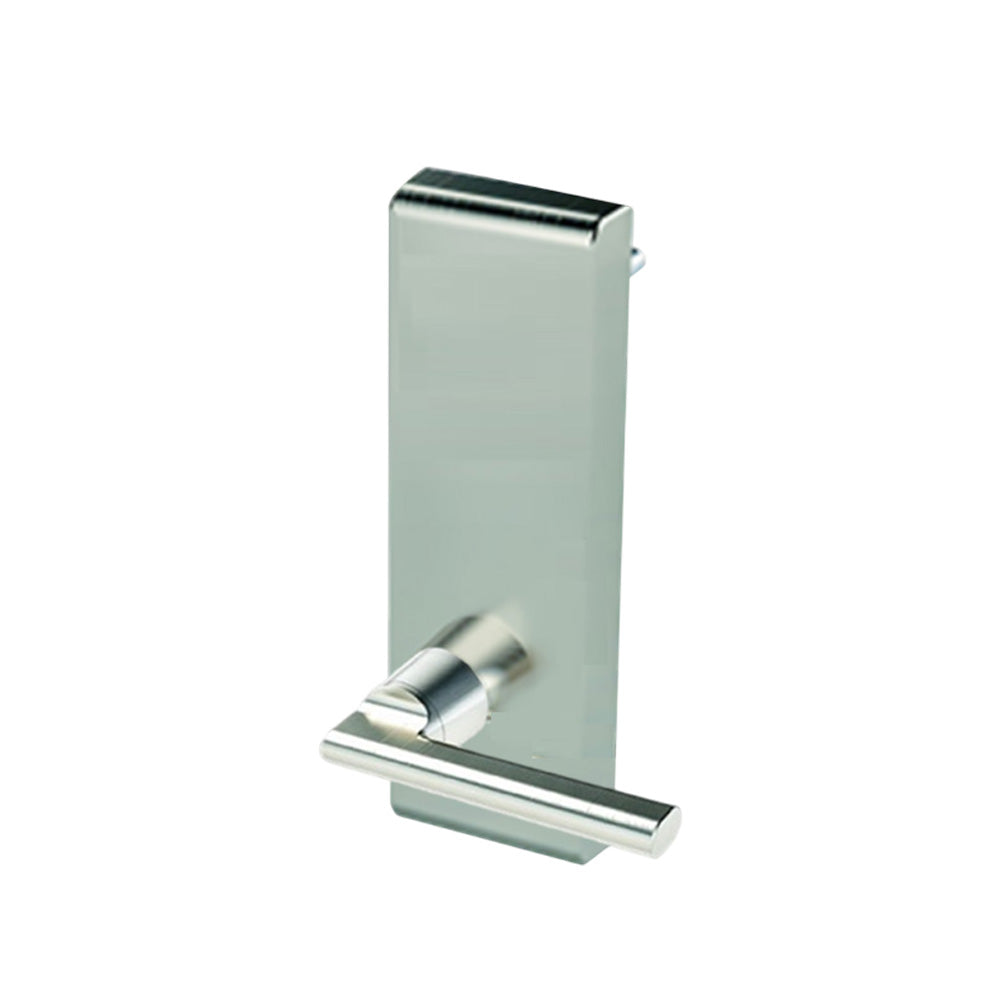

PDQ - 6W14 - Wide Stile Escutcheon Exit Device Trim - Passage with Lever

Designed for use with PDQ's 6300 series Rim, Concealed Vertical Rod and Surface Vertical Rod, Mortise exit devices, Lever remains rigid when locked - Simple installation.

Function 6W14 - Entrance by lever, always unlocked.

Features:
  • Works only with 6300 wide device.
  • Uses standard 1-1/8" mortise cylinder.
  • Standard, SFIC, and other cylinders available.
  • 6 Available lever styles.
  • 08/09 Function conversion kit factory installed.
  • Finishes: 605, 606, 613, 622, 625, 626, 630.
  • Escutcheon Size - 3" x 9".
  • ADA Compliant.
Applicable Devices:
  • 6300R Wide Stile Rim Device.
  • 6300V Wide Surface Vertical Device.
  • 6300C Wide Concealed Vertical Device.
  • 6300M Wide Mortise Device (Except 03 function).
Downloads:
