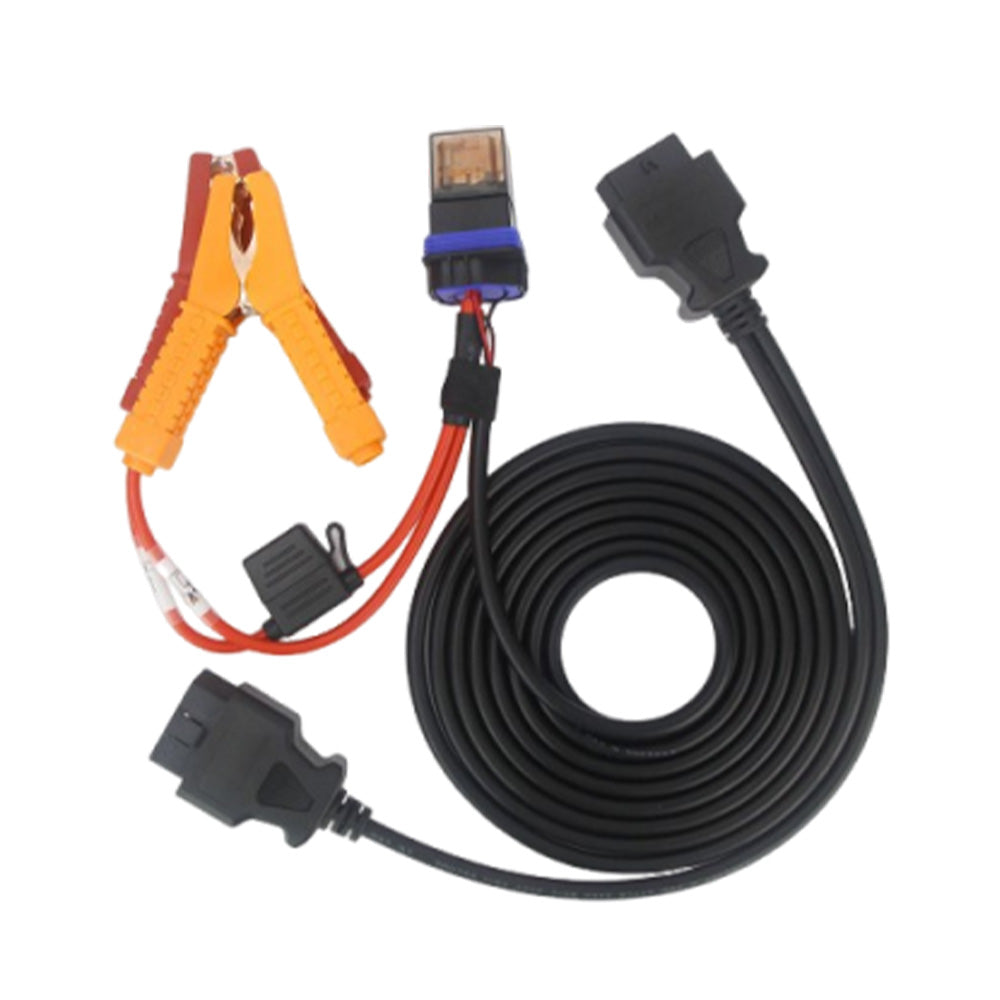

OBDSTAR Ford Lincoln Mustang All Keys Lost Adapter for X300 DP Plus/ X300 PRO4/ X300 DP - AKL Bypass Alarm Cable

OBDSTAR Ford Lincoln Mustang All Keys Lost Adapter for X300 DP Plus/ X300 PRO4/ X300 DP - AKL Bypass Alarm Cable

The OBDSTAR Ford Lincoln Mustang All Keys Lost Bypass Alarm Adapter enables fast AKL programming on 2016+ Ford proximity smart key vehicles. It bypasses active alarms without keypad codes or extra steps, allowing X300 DP Plus and compatible OBDSTAR tools to read IMMO data and add new keys quickly and reliably.

Specifications:

Supported Car Models:

• Ford: ECOSPORT 2018-, EDGE 2017-, ESCAPE 2020-2021, ESCORT 2018-, EXPEDITION 2020, EVEREST 2017-, EXPLORER 2017-, F-150 2017-, F-250 2017-, FOCUS 2018-, MUSTANG 2017-, TAURUS 2017-, MONDEO 2017-, FUSION 2017-, RANGER 2017-
• Lincoln: AVIATOR 2020, CONTINENTAL 2016-, CORSAIR 2020, MKC 2015-, MKT 2020, MKX 2015-, MKZ 2015-, NAUTILUS 2018-, NAVIGATOR 2018-
• Covers Ford & Lincoln 2015+ proximity smart key vehicles
• Supports All Keys Lost programming situations
• Compatible with OBDSTAR X300 DP Plus, X300 PRO4, and other supported tools

Equipment Overview:

• Diag cable OBD connector (male)
• P002 adapter
• Connect P002 connector (female)
• Connect vehicle OBD diagnostic connector (male)
• Lock plug
• Relay plug
• Battery clip (positive pole)
• Jumper plug (relay)
• Jumper plug (fuse - blue)
• Jumper plug (fuse - brown)
• Connect P002 connector TOYOTA-1 (female, BENCH)
• Connect ECU connector TOYOTA-1 (female, BENCH)
• TOYOTA-1 cable 12V power supply (BENCH)

Instructions to Use the Cable:

• Disconnect the negative battery cable from the vehicle.
• Insert the bolt through the negative cable and secure it with the thumb nut.
• Attach the black clamp to the negative terminal of the battery.
• Attach the red clamp to the positive terminal of the battery.
• Ensure the LED indicator on the cable is lit.
• Open the "Add Key" software and read the vehicle VIN.
• Turn the FLP switch off, then back on.
• The tool will read the ECU flash automatically.
• Follow all on-screen prompts provided by the tool to complete the process.

Package Includes:

• 1pc x OBDSTAR Ford AKL All Keys Lost Adapter
