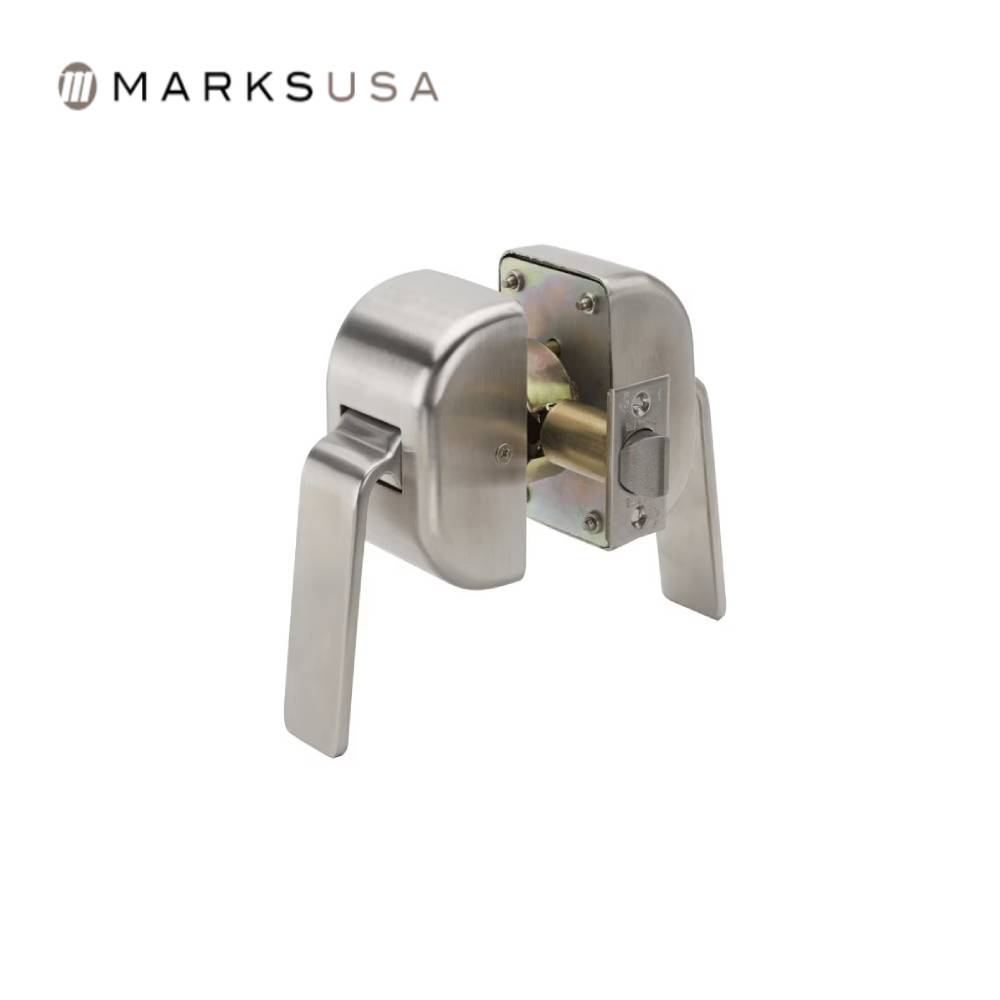

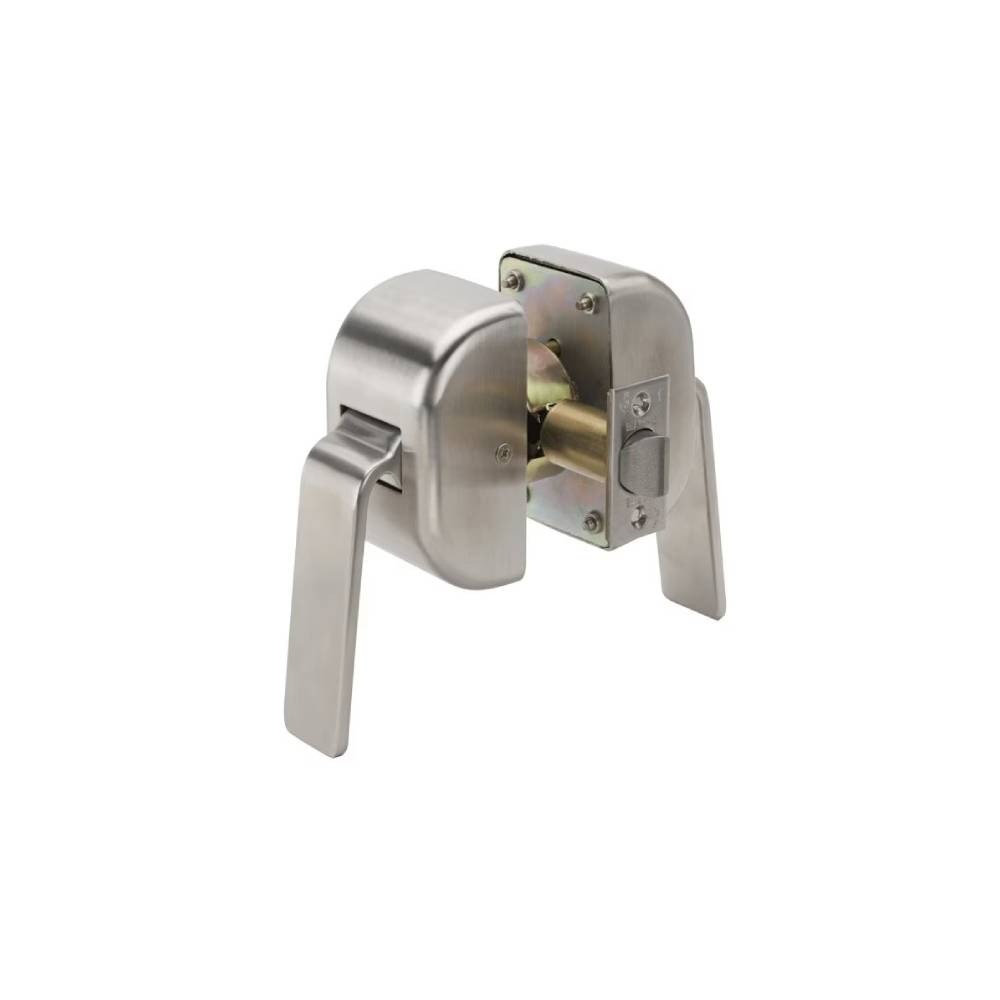

Marks USA - 180PDN -Passage Hospital Push/Pull Latch - Non-Keyed - Push/Pull Paddle - 3-7/16 Diameter Rose - Non-Handed - Grade 1 - Satin Stainless Steel
Marks USA - 180PDN -Passage Hospital Push/Pull Latch - Non-Keyed - Push/Pull Paddle - 3-7/16 Diameter Rose - Non-Handed - Grade 1 - Satin Stainless Steel
Regular price
$174.88 USD
Regular price
$209.86 USD
Sale price
$174.88 USD
Unit price
per
Couldn't load pickup availability
Marks USA - 180PDN -Passage Hospital Push/Pull Latch - Non-Keyed - Push/Pull Paddle - 3-7/16" Diameter Rose - Non-Handed - Grade 1 - Satin Stainless Steel
Product Specification:
Vendor | Napco Security Technologies |
Manufacturer | Marks |
SKU | 180PDN/32D |
UID | MAR180PDN32D |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL 10C |
ANSI Number | A156.13 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | Lifetime |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
ADA Compliance | Yes |
Technical Specification:
Function | N-Passage |
ANSI Function | F01 |
Lever/Knob Design | PD-Push/Pull Paddle |
Lever/Knob Design Family | Hospital Paddle |
Rose/Escutcheon Design | 3-7/16" Rose Diameter |
Cylinder Type | Non-Keyed |
Handing | Non-Handed |
Door Thickness | 1-3/4" |
Latch Bore Diameter | 1" |
Bore Hole Diameter | 2-1/8" |
Std. Strike Number | 1136 |
Std. Strike Type | T-Standard Strike |
Std. Strike Height | 2-3/4" |
Std. Strike Width | 1-1/8" |
Screws | Combination |
Product Type | Hospital Push/Pull Latch |
