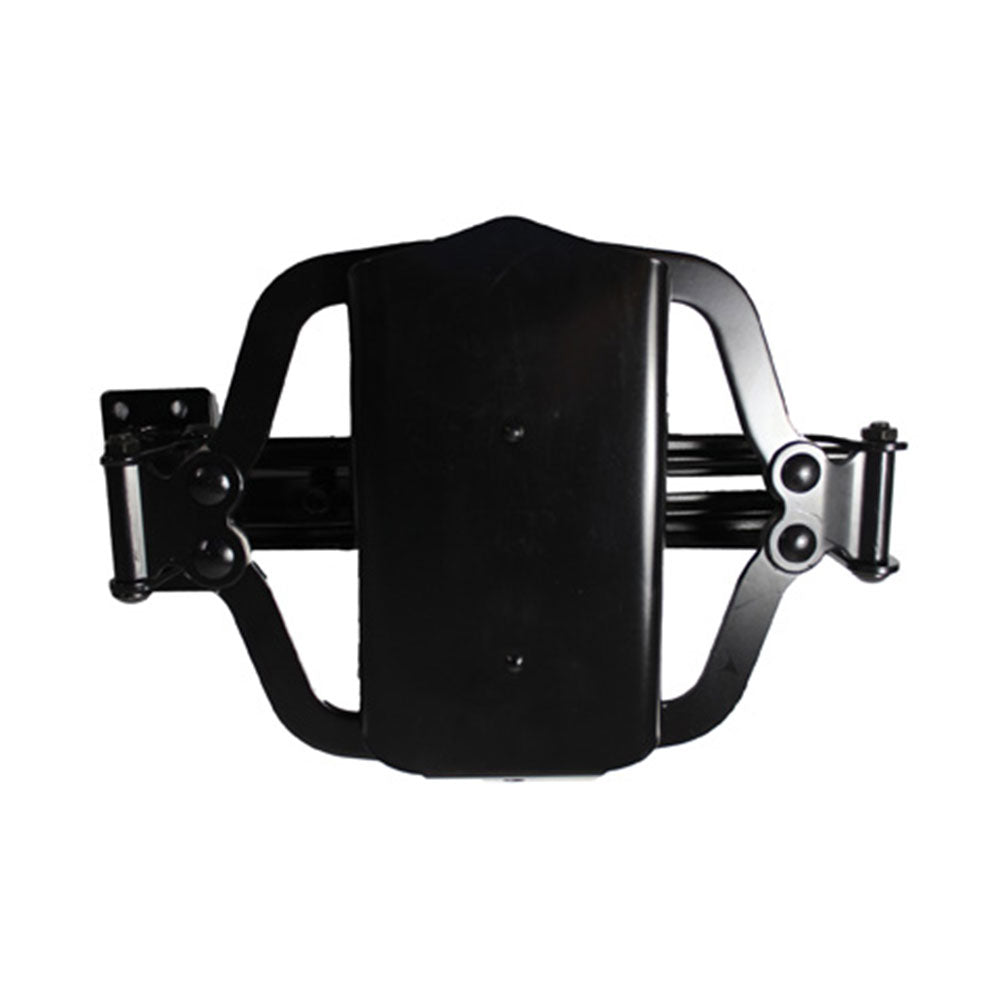

Lockey - TB100 - Turtleback Gate Closer

Lockey - TB100 - Turtleback Gate Closer

Features:

• Gently closes both small and large gates up to 125lbs.
• Pushes gate closed
• Adjustable closing speed
• Can be installed on top, bottom or middle of gate
• Recommended for pool, garden and barrier gates
• Can be used on lightweight (non fire-rated) doors
• Works best on gates with in-line/flush hinges
  To retain product warranty and restrict gate opening angle, a gate stop must be installed
• The LockeyUSA Turtle Back TB100 Hydraulic Gate closer must mount on the hinge side/pull side of the gate in order to push the gate closed.
• The TB100 works best if the gate has in-line/flush hinges flush with the gate post with 1" or less gap

Specifications:

• Dimensions: 7 1/2" L x 13" W x 2 1/2" D
• Mounting Bracket: 3 1/4" x 1 3/4"
• Max. Gate Weight: 125 lbs.
• Max. Gate Width: 54"
• Max. Opening Angle: 90 degrees
• Min. Operating Temperature: 10 degrees
• Max. Operating Temperature: 110 degrees
• Type of Gate Material: Vinyl, Wood, Steel, Chain Link
• Closing/Latching Method: Hydraulic
• Material: Steel
• Finish: Powder-Coated
• Color: Black
• Hinge Arrangements: In-line/flush hinges
• Opening Pressure: Variable, depending on gate size

Compatible With:

• GS-90 Gate Stop
• GS-LINX Gate Stop
