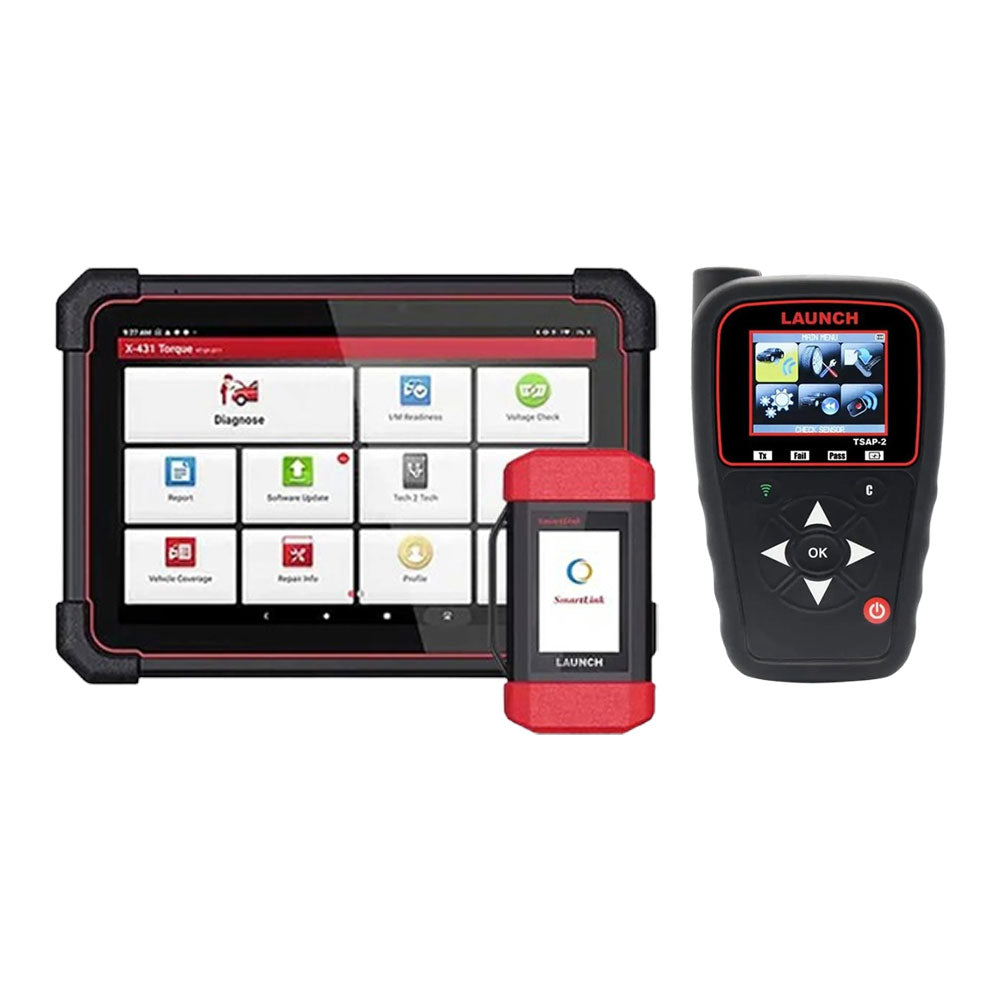

Launch - X-431 Torque Link Diagnostic Device with Free TSAP-2 TPMS Tool and 10 LTR TPMS Sensors

Launch - X-431 Torque Link Diagnostic Device with Free TSAP-2 TPMS Tool and 10 LTR TPMS Sensors

Includes:

• X-431 Torque Link Diagnostic Device
• TSAP-2 TPMS Tool
• LTR TPMS sensors

X-431 Torque LINK is an advanced intelligent car diagnostic device which is developed based on Android 10.0 system. Using 2.0Ghz 4-core high-efficiency processor, 10.1-inch color display, 4GB RAM+128GB ROM large storage, equipped with high-endurance battery, running faster, more stable and longer.

X-431 Torque LINK supports full system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD / DOIP diagnosis protocol.

Features:

• Full System & Full Function Diagnosis
• Auto Detect Vins in Minutes
• Bi-Directional Control / Remote Diagnostic Function
• Dual Band 5G & 2.4 G Wireless Connection with Ultra-Fast Speeds
• Advanced Vehicle protocols including DOIP, CANFD ETC
• Support X431 Fix Repair Information. Driven By Motor
• Code Assist Databse By Identifix
• SGW Security Gateway Approved By FCA
• Pin detection function to detect Pin volt, Data Rate and protocols
• More available software can be purchased via In-APP mall
• Build-in passenger car software, truck software purchase alone
• One-click upgrade for car models software
• Non-16 pin passenger car adapter cable kit covered
• Support USB Type C, USD Type A interface, Etc

Product Specifications:

• Android 10.0
• 10.1 inch touch screen 1280*800
• Rear 8 MP, Front 5 MP
• Battery: 47880mWh (7.6V, 6300mAh)
• CPU 2.0 GHz Quad-core
• Memory:4GB+ Storage :128GB
• Connectivity:WiFI/Bluetooth
• Dimensions: 274 x 190 x 40.5 mm / 10.79 x 7.48 x 1.59 inches
• Weight:1.45 kg

Contents:

• Power adapter, 5V / 5A
• USB A-type to B-type cable
• Six Kinds of Gigabit Networks (Blue)
• Type A to type C USB data cable
• OBD16 male to HDB15F test main line (with DC)
• HD15M to OBDII 16 male integrated test connector
• Multilingual quick start
• Universal PIN envelope
• SmartLink C Diagnostic Connector
• Front camera host 4 +128

Download:

• Quick Start Guide
• X431 Scan Tool Comparision Chart

Launch TSAP-2 TPMS Tool Tire Pressure Monitor Tool (302020528) offers a comprehensive solution for tire pressure monitoring and maintenance. This advanced tool is capable of interacting with TPMS sensors across a broad spectrum of vehicles, providing accurate data display and versatile programming options.
The TSAP-2 is equipped with state-of-the-art technology that supports both 315 & 433 Mhz sensors, making it adaptable to a wide range of vehicle types, including motorcycles and dual-wheel vehicles.

Features:

• Displays TPMS sensor data on screen for all connected sensors
• Programs over 20 types of aftermarket sensors
• Reads and activates TPMS sensors efficiently
• Performs over 200 manual relearns
• Includes capabilities for testing and diagnosing vehicle keyfobs

Specifications:

• Frequency: Activates both 315 & 433 MHz sensors
• Languages: Supports over 23 language options
• Compatibility: Suitable for motorcycles, dual-wheel vehicles, and TPMS retrofit kits

Benefits:

• Enhances the accuracy of tire pressure monitoring, supporting optimal tire maintenance
• Facilitates quick and efficient setup with multi-language support and easy sensor activation
• Improves workshop efficiency with comprehensive sensor programming and diagnostic functions
