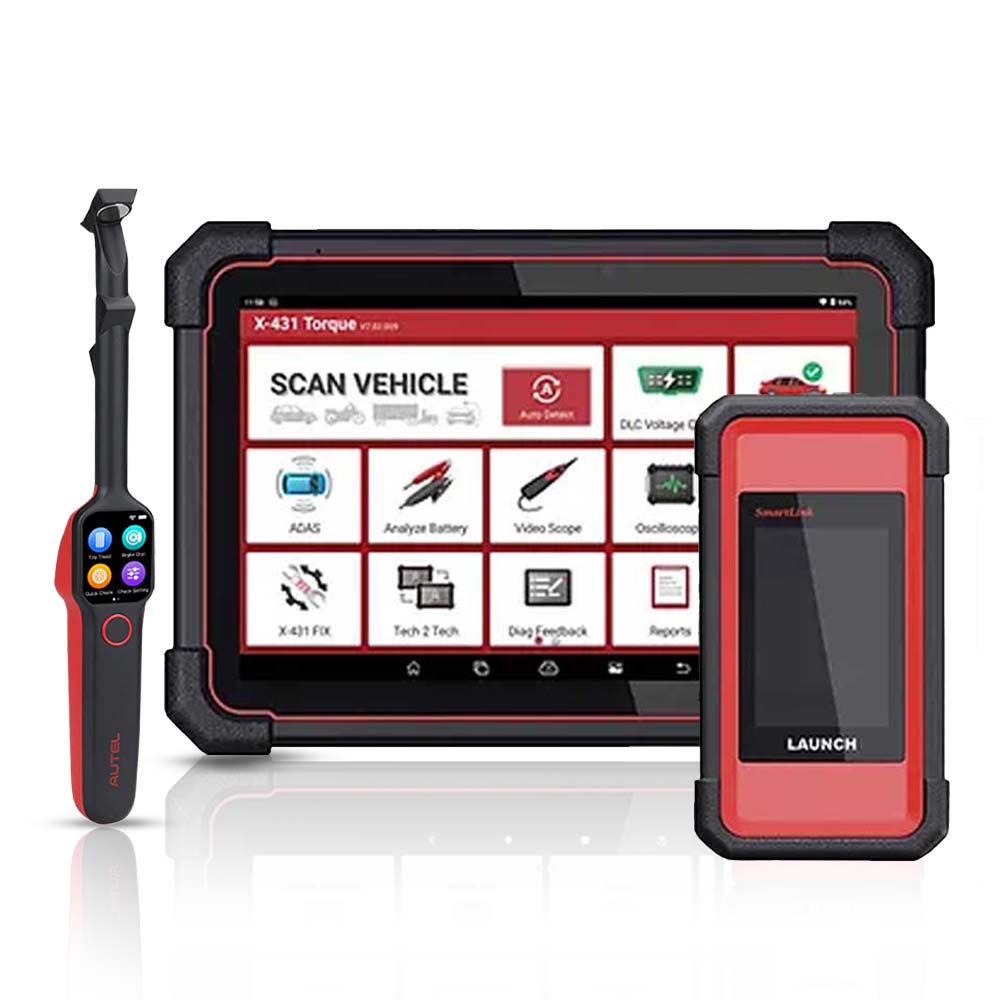

Launch - X-431 Torque AutoHD PRO Heavy-Duty Vehicle Diagnostic Tool with Autel MaxiTPMS TBE200 Laser Tread Depth and Brake Disc Examiner

Launch - X-431 Torque AutoHD PRO Heavy-Duty Vehicle Diagnostic Tool with Autel MaxiTPMS TBE200 Laser Tread Depth and Brake Disc Examiner

Includes:

• Launch - X-431 Torque AutoHD PRO Vehicle Diagnostic Tool
• Autel MaxiTPMS TBE200

Launch - X-431 Torque AutoHD PRO Automotive and Heavy-Duty Diagnostic Tool

The X-431 Torque AUTOHD PRO is a diagnostic solution that supports Auto and commercial Heavy Duty Truck Diagnostics. The featured service and calibration functions allow for growing the HD truck segment.

Features:

• Integrated with new powerful hardware X-431 Torque Auto HD Pro tablet, and Smartlink VCI,maximum the ability to faster diagnosis
• OE-level U.S. vehicle coverage as well as Asian, European coverage from 1996 and newer
• Read and erase DTCs of light, medium and heavy-duty vehicles (Class 4 through 8)
• Wireless and wired communicates via Bluetooth and USB
• Works on various systems, including Engine, Transmissions, ABS, and Auxiliary from manufacturers such as Wabco, Bendex, and Allison
• Support Cummins, Detroit, Freightliner, Fuso, Hino, International, Isuzu, KW, Peterbilt, Sterling, and Volvo
• Multilingual menu and data display: English, Spanish, French
• Optional ADAS calibration application to calibrate LOW, RCW, AVM, NV, BSD and ACC system accurately.
• Guided VW & AUDI functions/OE vehicle approved Security Gateway access by FCA ce (NEW)
• Code Assist by IDENTIFIX, access most common fixes and repair solutions with corresponding DTC's. (NEW)
• Monitor the vehicle's voltage in real lime during live dia (NEW)

Functions (Heavy-Duty Only):

• Dpf Regeneration
• Injection Quantity Adjustment
• Bleeding The Adblue Circuit
• Parked Scr Efficiency Test
• Injector Coding
• Reset Service (Mil)
• Maintenance Confirmation
• Reset Pressure Limiting Valve And Calibration
• Participate Filter Replacement Reset
• Trip Reset
• Dpf Ash Accumulator Reset
• Reset Pressure Differential Sensor
• Vgt Electronic Actuator Installation
• Parked Scr Efficiency Test

Calibration (Heavy-Duty Only):

• Idle Speed Adjustment
• Speed Limit
• Cruise Control
• Idle-Stop System
• PTO
• Coolant Level Switch
• Exhaust Brake Valve
• Intake Air Preheating
• Vehicle Speed Controller
• Air Conditioner
• Oil Pressure Sensor
• Electronic Fan
• ABS
• Automatic Transmission

Torque AutoHD PRO Specifications:

• CPU 2.0GHz 4-core
• Display: 10.1 inch touch screen
• Memory: 4GB
• Storage: 128GB
• Android 10.0
• Camera: Rear 8MP, Front 5MP
• Battery: 47.88Wh (7.6V, 6300mAh)
• Dimension: 200*110*47 (mm)

SmartLink C Heavy-Duty Module Specifications:

• Display: 3.95", 320*480
• Wi-Fi: 2.4ghz/5ghz
• Communication: Wi-Fi & Bluetooth & Ethernet
• Ram: 256gb
• Storage: 8gb
• Working Voltage: 9v Dc-36v Dc
• Dimension: |200*110*47 (Mm)

ERP Code: 301190908

Software Subscription ERP Code: 307010014

Autel MaxiTPMS TBE200 Laser Tread Depth & Brake Disc Examiner

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.

Laser Measurement:

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc

Real Time Tire Health Analysis:

• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage

Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
