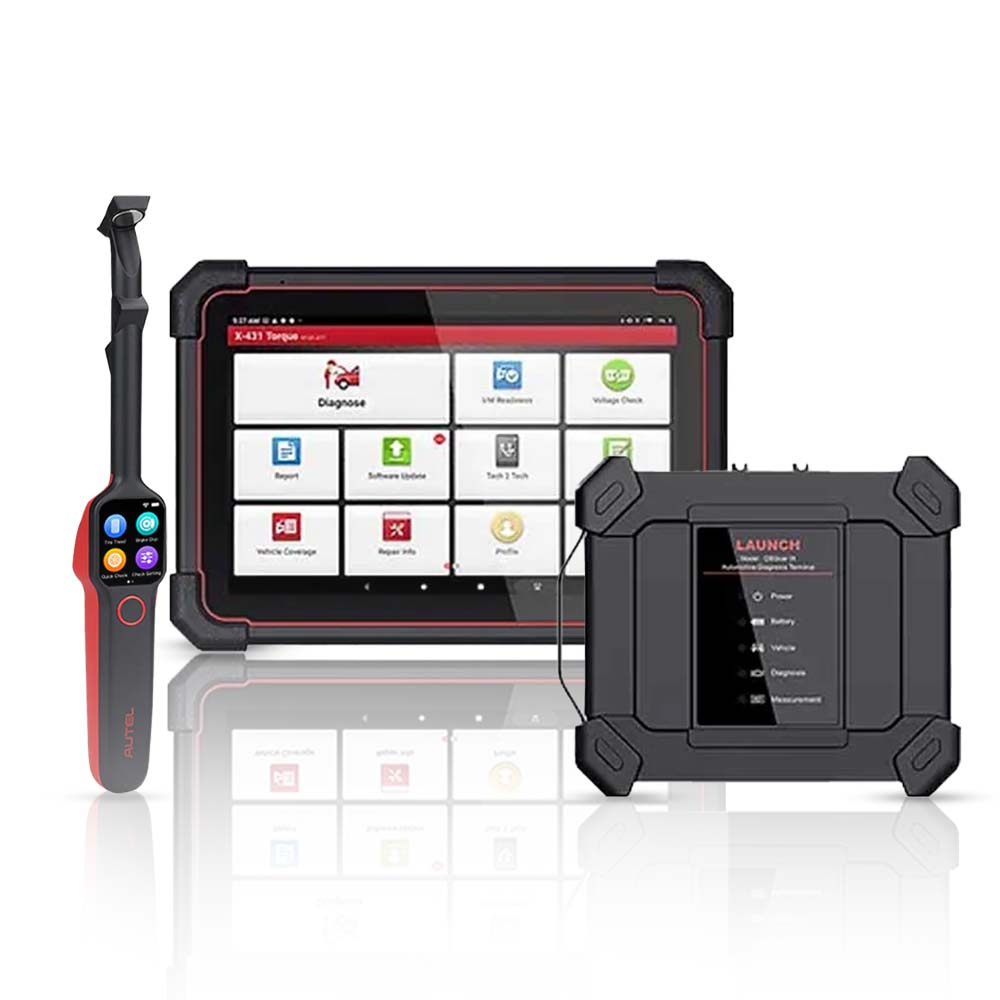

Launch - X-431 Torque 5 Vehicle Diagnostic Device with Autel MaxiTPMS TBE200 Laser Tread Depth and Brake Disc Examiner

Launch - X-431 Torque 5 Vehicle Diagnostic Device with Autel MaxiTPMS TBE200 Laser Tread Depth and Brake Disc Examiner

Includes:

• Launch - X-431 Torque 5 Vehicle Diagnostic Device
• Autel MaxiTPMS TBE200

Launch - X-431 Torque 5 Advanced Intelligent Vehicle Diagnostic Device

X-431 Torque 5 is an advanced intelligent vehicle diagnostic device developed based on Android 10.0 system. It adopts 2.0GHz 4-core high-efficiency processor, 10.1-inch color display, 4GB ram + 128GB ROM large storage, and is equipped with high endurance battery to run faster, more stable and longer.

X-431 Torque 5 supports full-system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD/DOIP diagnostic protocol.

Features:

• Full system & full function diagnosis
• Auto Detect VINs in minutes
• Bi-Directional Control/ Remote Diagnostic Function
• Dual band 5G & 2.4 G wireless connection with ultra-fast speeds
• Advanced vehicle protocols including Doip (external diagnostic cable) CAN FD etc.
• Code Assist Database by identifix
• Support X431 Fix repair information, driven by motor
• SGW Security gateway approved by FCA
• Supports 2-channel oscilloscope and multimeter functions
• More available software can be purchased via in-app Mall
• One-click upgrade for car models software
• Support USB Type C, USB Type A interface, etc
• OE Level U.S vehicle coverage as well as Asian, European coverage from 1996 and newer

Product Specifications:

• Android 10.0
• 10.1 inch touch screen 1280*800
• Rear 8 MP, Front 5 MP
• Battery: 47880mWh (7.6V, 6300mAh)
• CPU 2.0 GHz Quad-core
• Memory and Storage:4GB+128GB
• StorageTemperature: -20℃--70℃-
• Working Temperature: 0℃--50℃
• Connectivity：WiFI/Bluetooth
• Size: 274*190*40.5 (mm)/ 10.79*7.48*1.59 (inch)
• Weight 1.45 kg

Contents:

• Front camera host 4 + 128
• HD15F to OBDII 16 male integrated test connector
• HDB15F to HDB15F test main line (with DC)
• X431 DBSCAR IX diagnostic connector
• HT30 test line
• Needle Set (Colored 4mm Female+20 needle+2 screw head)
• Crocodile clip，black
• Crocodile clip，red
• Multimeter probe black
• Multimeter probe red
• Power adapter
• Universal PIN envelope
• Multilingual Quick Start
• Type A to type C USB data cable

ERP Code: 301190794

Software Subscription ERP Code: 307010011

Product SN First 5 PreFix: 98813

Download:

• Quick Start Guide
• X431 Scan Tool Comparision Chart

Autel MaxiTPMS TBE200 Laser Tread Depth & Brake Disc Examiner

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.

Laser Measurement:

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc

Real Time Tire Health Analysis:

• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage

Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
