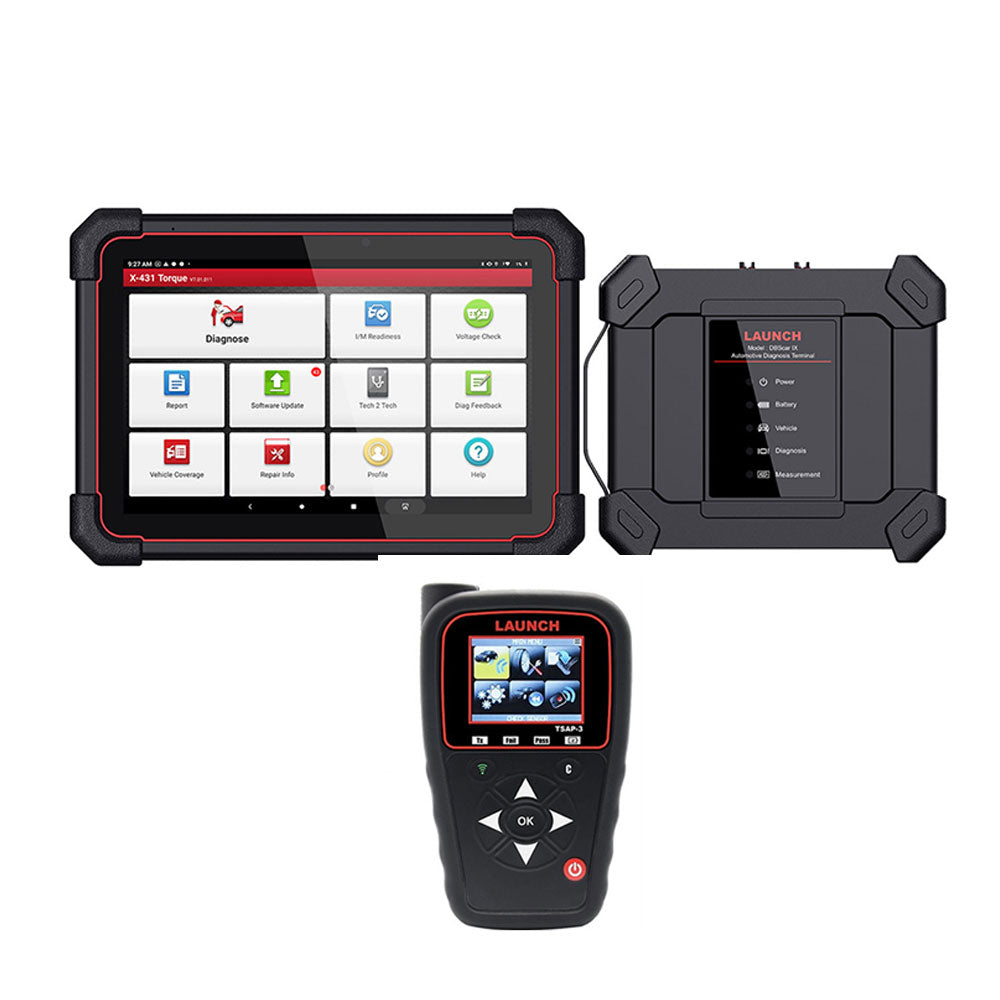

Launch - X-431 Torque 5 Advanced Intelligent Vehicle Diagnostic Device with Free TSAP-3 TPMS Tool and 20 LTR TPMS Sensors

Launch - X-431 Torque 5 Advanced Intelligent Vehicle Diagnostic Device with Free TSAP-3 TPMS Tool and 20 LTR TPMS Sensors

• X-431 Torque 5 Advanced Intelligent Diagnostic Device
• TSAP-3 TPMS Tool
• LTR TPMS sensors

X-431 Torque 5 is an advanced intelligent vehicle diagnostic device developed based on Android 10.0 system. It adopts 2.0GHz 4-core high-efficiency processor, 10.1-inch color display, 4GB ram + 128GB ROM large storage, and is equipped with high endurance battery to run faster, more stable and longer.

X-431 Torque 5 supports full-system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD/DOIP diagnostic protocol.

Features:

• Full system & full function diagnosis
• Auto Detect VINs in minutes
• Bi-Directional Control/ Remote Diagnostic Function
• Dual band 5G & 2.4 G wireless connection with ultra-fast speeds
• Advanced vehicle protocols including Doip (external diagnostic cable) CAN FD etc.
• Code Assist Database by identifix
• Support X431 Fix repair information, driven by motor
• SGW Security gateway approved by FCA
• Supports 2-channel oscilloscope and multimeter functions
• More available software can be purchased via in-app Mall
• One-click upgrade for car models software
• Support USB Type C, USB Type A interface, etc
• OE Level U.S vehicle coverage as well as Asian, European coverage from 1996 and newer

Product Specifications:

• Android 10.0
• 10.1 inch touch screen 1280*800
• Rear 8 MP, Front 5 MP
• Battery: 47880mWh (7.6V, 6300mAh)
• CPU 2.0 GHz Quad-core
• Memory and Storage:4GB+128GB
• Connectivity:WiFI/Bluetooth
• Size: 274*190*40.5 (mm)/ 10.79*7.48*1.59 (inch)
• Weight 1.45 kg

Contents:

• Front camera host 4 + 128
• HD15F to OBDII 16 male integrated test connector
• HDB15F to HDB15F test main line (with DC)
• X431 DBSCAR IX diagnostic connector
• HT30 test line
• Needle Set (Colored 4mm Female+20 needle+2 screw head)
• Crocodile clipblack
• Crocodile clipred
• Multimeter probe black
• Multimeter probe red
• Power adapter
• Universal PIN envelope
• Multilingual Quick Start
• Type A to type C USB data cable

Download:

• Quick Start Guide
• X431 Scan Tool Comparision Chart

The TSAP-3 is the ideal TPMS tool for DIYers, Technicians and front counter workers. The tool is designed to activate, read and service major OEM and aftermarket sensors. It is capable of updating wirelessly via Wi-Fi, allowing the newest TPMS sensors to be added to the tool.

Features:

• Display all TPMS sensors data on screen
• Program over 20 aftermarket sensors
• Update wirelessly via Wi-Fi
• Activates both 315 & 433 Mhz sensors
• Read and activate TPMS sensors
• Perform 200+ manual & OBDII relearns
• Install & service TPMS retrofit kits
• Service motorcycles & dually vehicles
• Lookup TPMS sensor part number
• Test/ Diagnose vehicle keyfob

Specifications:

• Screen Size: 2.8 Inch
• Make, Model, Year Look-Up: Yes
• Activate 100% Of Oem Sensors: Yes
• Programs Multiple Brands Of Aftermarket Sensors: Yes
• Wi-Fi Updatable: Yes
