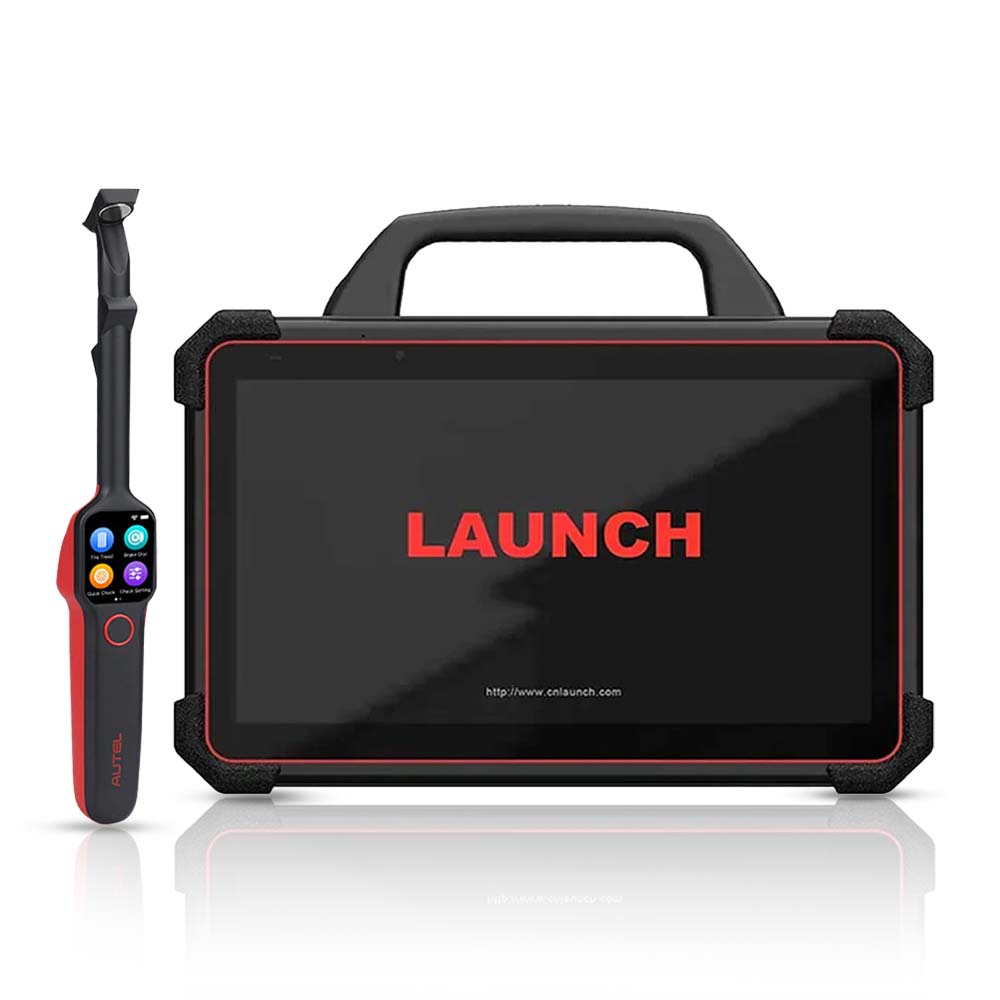

Launch - X-431 Throttle III Professional Diagnostic Scan Tool with Autel MaxiTPMS TBE200 Laser Tread Depth and Brake Disc Examiner

Launch - X-431 Throttle III Diagnostic Scan Tool with Autel MaxiTPMS TBE200 Laser Tread Depth and Brake Disc Examiner

Includes:

• Launch - X-431 Throttle III Professional Diagnostic Scan Tool
• Autel MaxiTPMS TBE200

Launch - X-431 Throttle III Professional Diagnostic Scan Tool

Launch X-431 Throttle III is a Wi-Fi enabled and super advanced scan tool with upgraded all-in-one Smartlink VCI. One is enough for most of repair shops who has business in relation with ADAS calibration, Commercial and Medium Duty Truck diagnosis, Remote diagnostic, OE-level vehicle diagnosis, IMMO functions and more.

Features:

• OE-level U.S. vehicle coverage as well as Asian, European coverage from 1996 and newer
• Smartlink allows for rapid diagnostics of light, medium and heavy-duty vehicles
• QC quick charge technology(Battery Charges Fully in 2.5 to 3 hours)
• Optional ADAS calibration application to calibrate LDW, RCW, AVM, NV, BSD and ACC system accurately.
• Guided VW & AUDI functions
• OE-Level bi-directional functionality
• Support communication protocols CAN/CAFD/DoIP and automotive communication standards J/D-PDU/RP1210
• TECH 2 TECH remote diagnosis and technician collaboration
• Vehicle health report feature gives comprehensive status on all onboard systems of vehicle
• Auto Detect VIN to access to vehicle info within seconds
• OE vehicle approved Security Gateway access by FCA certified (NEW)
• Code Assist by Identifix, access most common fixed and repair solutions with corresponding DTC (NEW)
• Monitors vehicle’s voltage by real-time displaying the data during diagnosing（NEW)
• Topology module mapping overview virtually the all-systems communication status(NEW)
• "NEW" Pin detection function to detect pin volt, data rate and protocols.

X-431 Throttle III Specifications:

• Operation System Android 9.0
• CPU 2.0GHz Octa-core
• Display 13.3-inch touch screen
• Memory 8GB
• Storage 256GB
• Camera Front 8 MP, Rear 13 MP
• Working Temperature 32℉-122℉
• Dimension ：12.9"*8.7"*1.75"

SmartLink Specifications:

• 3.5-inch touch screen
• Memory 8GB
• Working Temperature 32℉-122℉
• Dimension ：8.03"*4.33"*1.77"

Contents:

• X-431 Throttle III Tablet
• 02-2 4-Channel Scope Box
• Smartlink C Device
• Power Adapter
• Type A to Type B Data Cable
• Type A to Type C USB Cable
• HDMI Cable
• OBD I Adapter Cable
• Cigarette Lighter Cable
• Battery Clamps Cable
• Private & Confidential Paper
• X431 FIX Auto Software (MotorRepair Information) Oneyear

ERP Code: 301180833

Software Subscription ERP Code: 301180865

Product SN First 5 PreFix: 98801

Download:

• Quick Start Guide
• X431 Scan Tool Comparision Chart

Autel MaxiTPMS TBE200 Laser Tread Depth & Brake Disc Examiner

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.

Laser Measurement:

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc

Real Time Tire Health Analysis:

• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage

Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
