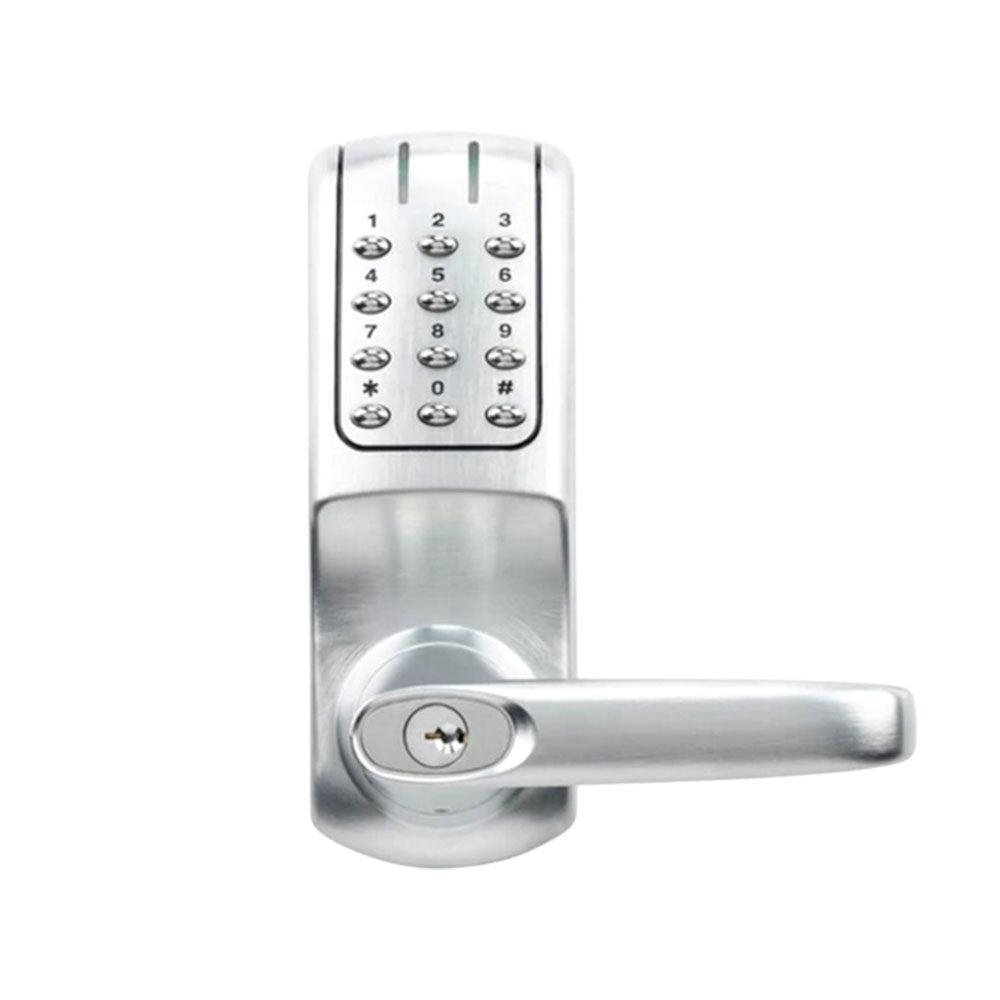

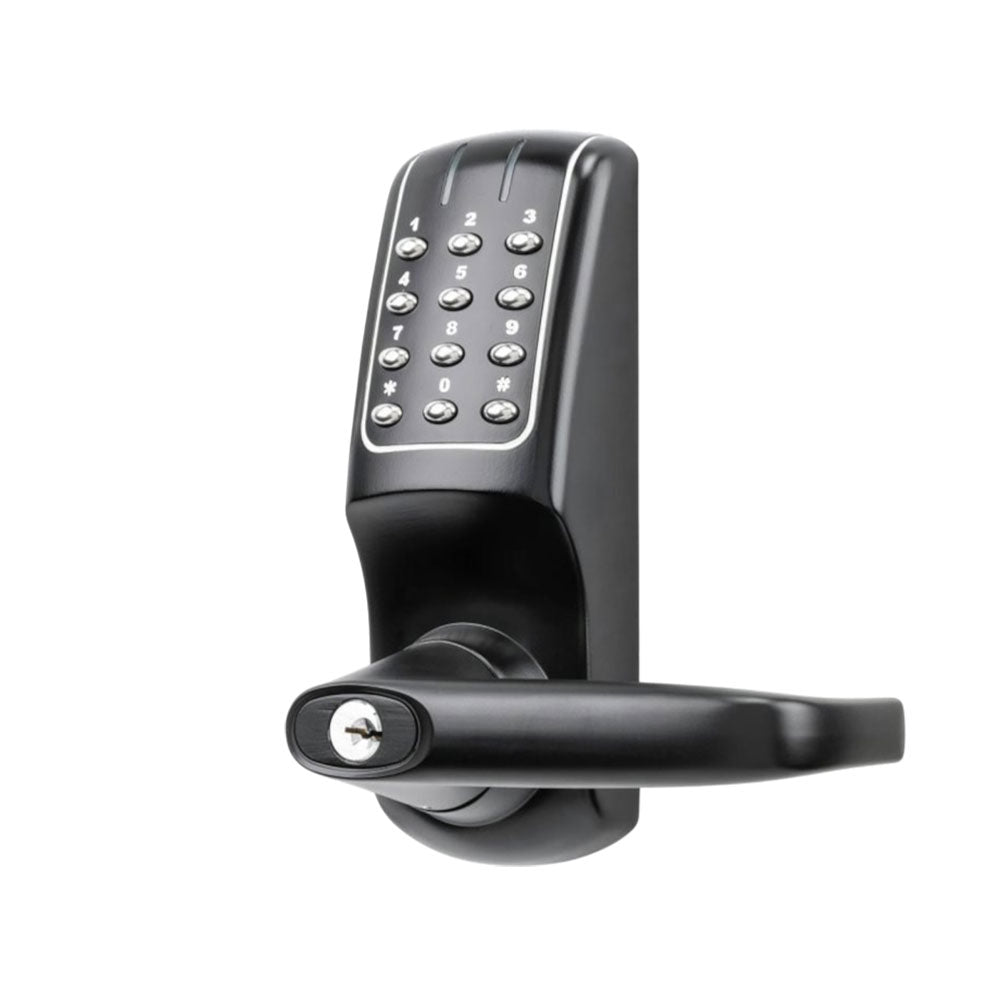

KeyInCode KIC5210 PIN Code Only Keyless Electronic Keypad Lever Lock - Grade 2
KeyInCode KIC5210 PIN Code Only Keyless Electronic Keypad Lever Lock - Grade 2
Regular price
$565.00 USD
Regular price
$807.14 USD
Sale price
$565.00 USD
Unit price
per
Couldn't load pickup availability
KeyInCode KIC5210 PIN Code Only Keyless Electronic Keypad Lever Lock - Grade 2
The KIC5210 is a standard duty ANSI Grade 2, keyless pin only access lock. It incorporates electronic and mechanical methods to control access via stainless steel electronic keypad or key and is designed to withstand moderate daily traffic in a businesses or commercial setting.
Features:
- 80 users + 10 one-time user codes
- Electronic keypad with 12-button LED interface
- Mechanical key override with 6-pin C keyway (SFIC option available)
- Non-handed design, field reversible for left or right doors
- Includes storeroom and classroom function (conversion tailpiece included)
Specifications:
| Users | 80 users, 10 one-time codes |
| Body Material | Zinc Alloy |
| Grade | ANSI/BHMA A156.2/25, Grade 2 |
| Power | 4 x AA 1.5 volt batteries (supplied) |
| Keypad | 12-button LED keypad |
| Latch Type | Cylindrical tubular latch, adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-3/8" to 2" |
| Backset | 2-3/8" (60 mm) and 2-3/4" (70 mm) |
| Handing | Non-handed, field reversible |
| Keying Alike and Master-keyed | Yes |
| Key Override | 6-pin C keyway, screw-cap type KIK cylinder |
| SFIC Prepped | Small Format Interchangeable Core option (fits 6-7 pin, core not included) |
| Storeroom Function | Standard |
| Classroom Function | Conversion tailpiece included |
| Environment | For normal internal and external use |
| Certifications | UL 3-hour fire rated, ANSI/BHMA certified |
| Finish | Satin Chrome (626), Black (676) |
