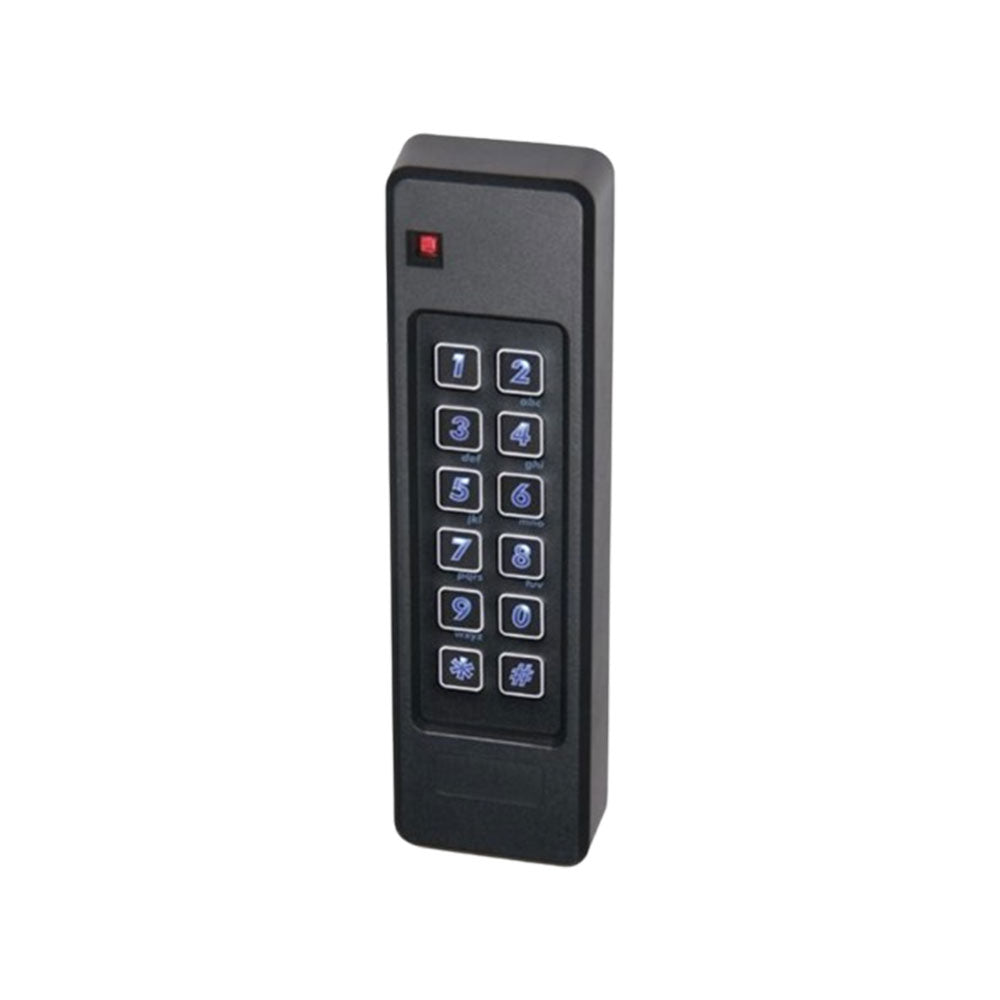

KeyInCode KIC2500-NSR Narrow Stile MiFare Card Reader 6.2
Mobile-ready Contactless Smart Card Keypad & Reader.
The KIC2500 Narrow Stile MiFare Card Reader 6.2 is engineered specifically for slim-profile installations on aluminum storefronts and mullion-style door frames. Its compact design delivers reliable MiFare card reading performance in a durable, weather-resistant housing - ideal for access control applications where space is limited but security is essential.
Specifications:
| Supported Technologies | Contactless smartcard and Bluetooth Low Energy (BLE) |
| Mounting | Fits narrow stile (mullion) surfaces including metal door/window frames and flat surfaces |
| Dimensions | 1.78" W x 6.1" H x 0.91" D (45 mm x 155 mm x 23 mm) |
| Voltage Range | +8 to 14 VDC |
| Current Draw | 60 mA typical, 250 mA peak @ 12 VDC |
| Read Range | Physical Credentials: Up to 2" (51 mm), Mobile Credentials: Up to 15 ft (4.6 m) |
| LED Indicators | Four-state (Red, Green, Amber, Off) |
| Audio | Built-in beeper |
| Environmental Ratings | IP67 rated (dust and water-resistant) |
| Operating Temperature | -31 F to 140 F (-35 C to +60 C) |
| Operating Humidity | 0% to 90% RH |
| Color | Black (snap-on cover included) |
| Certifications | FCC, IC, CE, UL294, ULC 60839-11-13 |
| Cabling Requirements | 24 AWG minimum, multi-conductor stranded, foil shielded |
