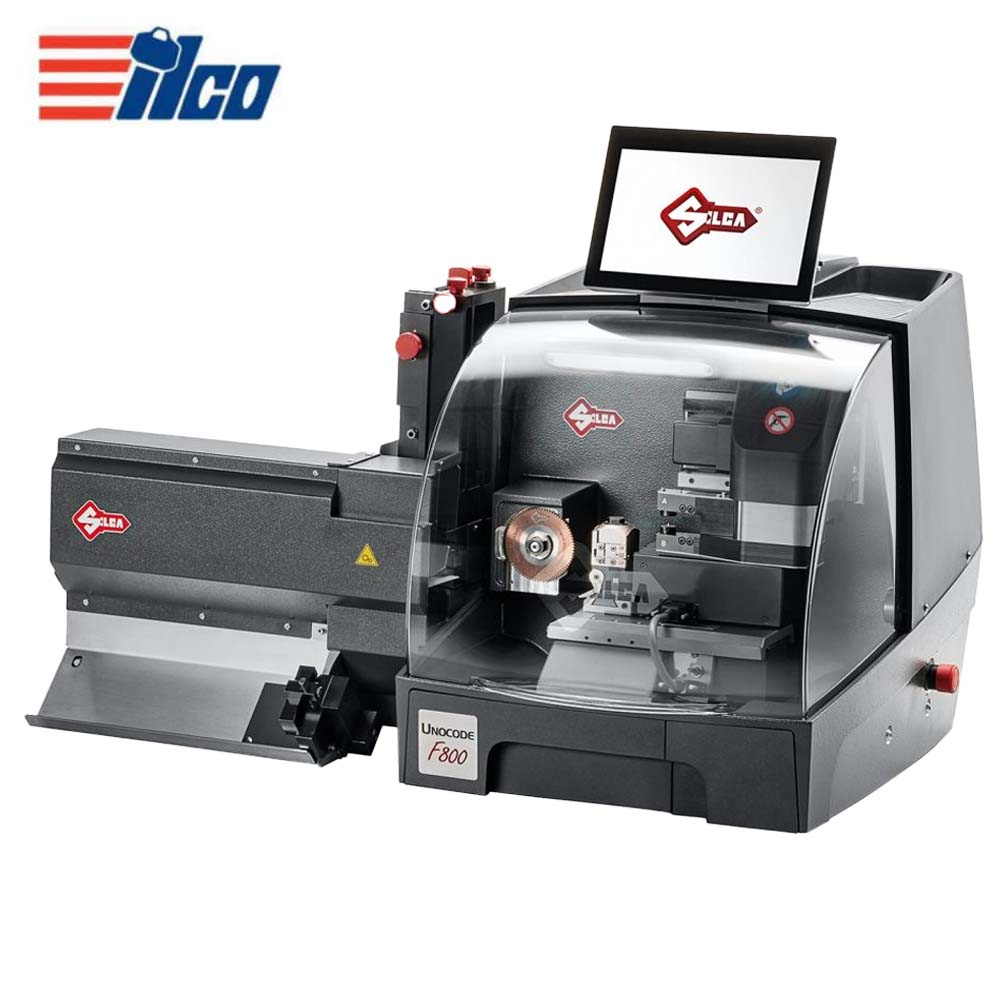

ILCO Unocode F800 All-in-one Automatic Flat Key Cutter, Duplicator, and Engraver
ILCO Unocode F800 All-in-one Automatic Flat Key Cutter, Duplicator, and Engraver
Regular price
$39,328.31 USD
Regular price
$44,650.00 USD
Sale price
$39,328.31 USD
Unit price
per
Couldn't load pickup availability
ILCO Unocode F800 All-in-one Automatic Flat Key Cutter, Duplicator, and Engraver
The exclusive UNOCODE F800 is the truly all-in-one solution for duplicating by code flat keys, automating the key feeding, engraving, cutting and sorting leaving you free to manage your next customer.
The exclusive UNOCODE F800 is the truly all-in-one solution for duplicating by code flat keys, automating the key feeding, engraving, cutting and sorting leaving you free to manage your next customer.
Technical Specifications:
| Electricity Supply: | 100-240V - 50/60Hz |
| Cutter Motor: | 48VDC |
| Engraving Motor: | 24VDC |
| Key Cutter: | Prismatic in coated hard metal (widia) |
| Engraving Cutters: | Upper cutter 'A’ in coated hard metal (widia), Lower cutter 'B’ in hard metal |
| Tool Speed: | Prismatic cutter: 1070 rpm, Engraving cutters: 14500 rpm |
| Movement: | On 2 axes with ball screws activated by step motors on ground roller runners. Rotating axis available with optional clamp |
| V4 Clamp: | With 4 standard sides for gripping keys with different thicknesses < 2.7: for thicknesses 1 mm to 2.7 mm > 2.5: for thicknesses 2.5 mm to 4 mm |
| Runs: | With clamp: axis: 30 mm, Y axis: 72 mm, Keys with head stop: Y axis: max. 45 mm (by code) and Y axis: max. 42 mm (with feeder), Keys with tip stop: Y axis: max. 45 mm (by code) |
| Max Dimensions: | Width: 921 mm - Depth: 740 mm - Height: 680 mm |
| Weight: | Without feeder: 61.7 Kg - With feeder: 87.7 Kg |
Cleaner, safer and more comfortable working area with automated moving shield
 |
 |
 |
 |
Robotized feeding, processing and sorting
 |
 |
 |
 |
Customizable clamp
 |
 |
Duplicated Key Types
 |
 |
 |
