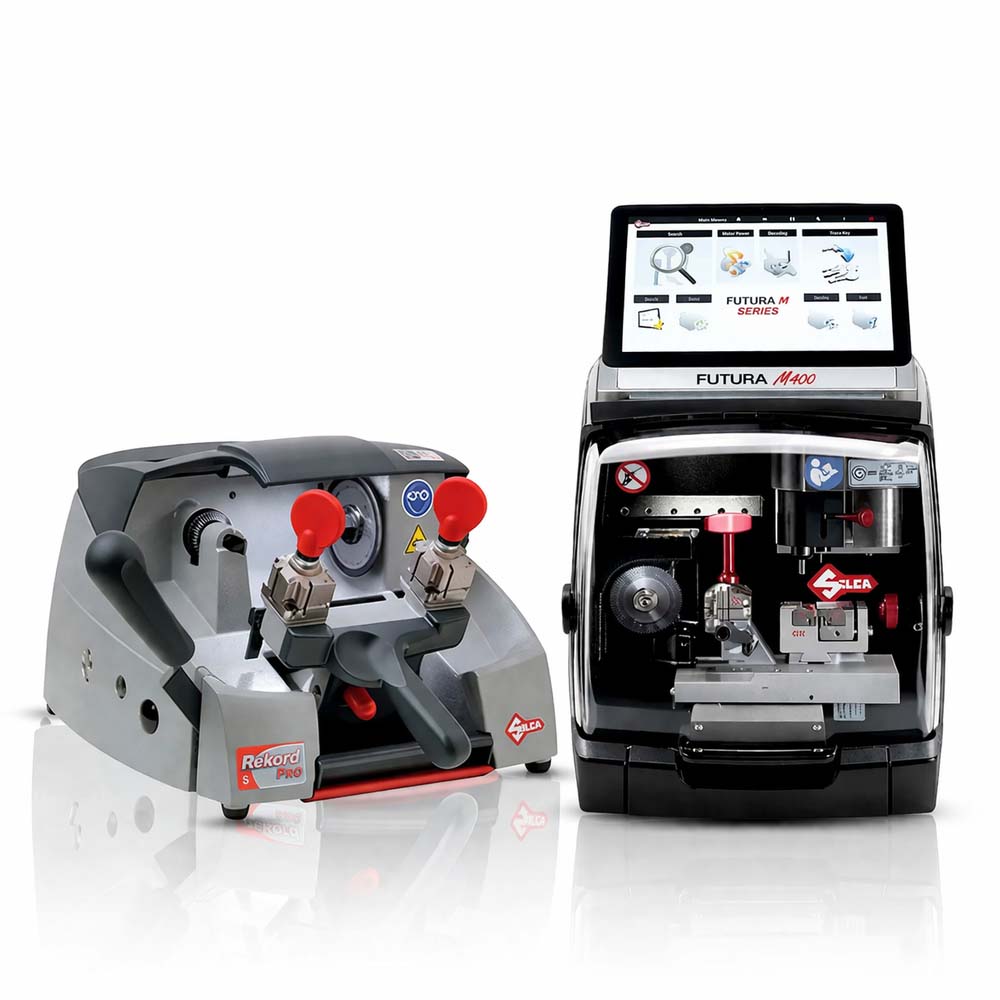

ILCO Futura M400 New Gen Electronic Key Cutting Machine Bundle with Rekord Pro S Key Cutting Machine for Flat and Cruciform Keys
ILCO Futura M400 New Gen Electronic Key Cutting Machine Bundle with Rekord Pro S Key Cutting Machine for Flat and Cruciform Keys
Couldn't load pickup availability
ILCO Futura M400 New Gen Electronic Key Cutting Machine Bundle with Rekord Pro S Key Cutting Machine for Flat and Cruciform Keys
Includes:
ILCO Futura M400 New Generation Electronic Key Cutting Machine for Residential, Automotive and Special Keys
ILCO Futura M400 is a next-generation electronic key cutting machine built with Silca's advanced technology and years of expertise. Designed for maximum versatility, it can duplicate a wide range of residential, automotive, and special keys, including flat and dimple keys with flat or inclined keyways.
Faster, quieter, and easier to operate than previous models, the Futura M400 features powerful yet user-friendly software that simplifies the key cutting process while delivering precise and reliable results. Ideal for professional locksmiths who need efficiency, accuracy, and flexibility in a single machine.
Features:
- Decoding via optical reader
- Copy by code and by original key
- Four-sided rotating clamp
- Long life widia cutter
- Gauge for precise key installation
- Decoding by electrical contact
- Easy to install clamp
- Interchangeable jaws
- Automatic calibration of decoder and cutting station
- Pull out tracer point
Specifications:
| Power Supply | Machine: 24V d.c. - 5.5 Amp - 130W |
| Power Pack | 90/264V a.c. - 50/60Hz - 220W |
| Cutter Motor (Flat Cuts) | 24V d.c. |
| Axes Run | X axis: 30 mm, Y axis: 50 mm, Z axis: 27 mm |
| Movements | 3 axes movement with special bushes, driven by step motors on rectified roller guides |
| Flat Cuts | Prismatic Cutter: U01W, Hard Metal with Coating, Clamp: 01V, Removable, Four universal sides for flat, vehicle, and cruciform keys |
| Dimple Cuts | Cutter: 01D in HSS Super Rapid Steel , Clamp: 01R, Removable, with interchangeable jaws |
| Laser Cuts | Cutter: 01LW in Carbide AlCrN Coated , Clamp: 01R, Removable, with interchangeable jaws |
| Dimensions | Width: 318 mm, Depth: 413 mm, Height: 530 mm (with tablet and stand), 365 mm (display closed) |
| Weight | 20 kg |
Download:
ILCO Rekord Pro S User-friendly Key Machine for Flat and Cruciform Keys
Rekord Pro S is the mechanical key cutting machine for flat cylinder and vehicle keys and cruciform keys. It features quick-rotation, four-sided clamps with ergonomic handles, a mechanical tracer point with micrometric adjustment and automatic cutter starting.
Technical Specifications:
- Power Supply: 230V-50/60Hz - 440W 2A
- Cutter Motor: single phase
- Prismatic Cutter: HSS (Super Rapid Steel), TiAIN coated
- Cutter Speed: 1350/1620 rpm
- Clamp: rotating, 4-sided
- Movements: by gear on rectified carriage
- Carriage Runs: 43 mm (max length of cuts)
- Dimensions: Width 330 mm (including lever 510 mm), Depth 430 mm, Height 270 mm
- Weight: 19 Kg
Download:
Video:
