ILCO

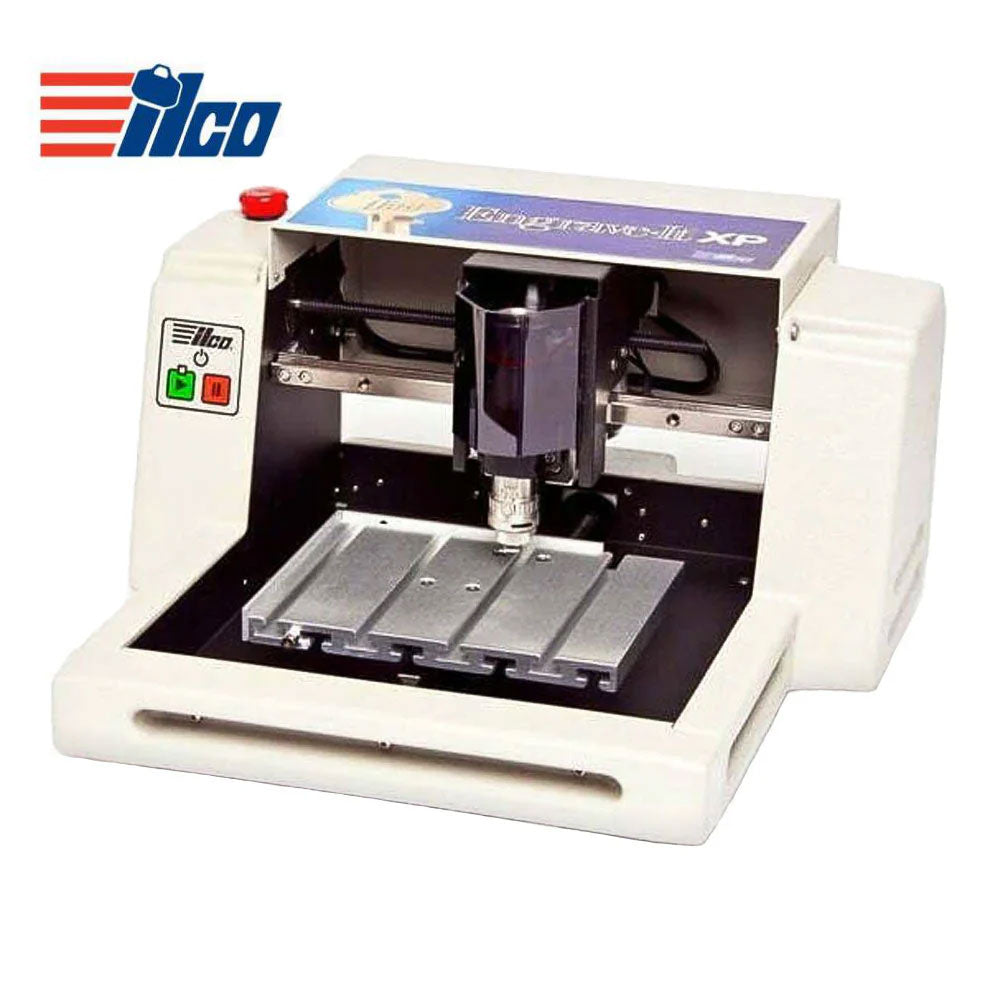

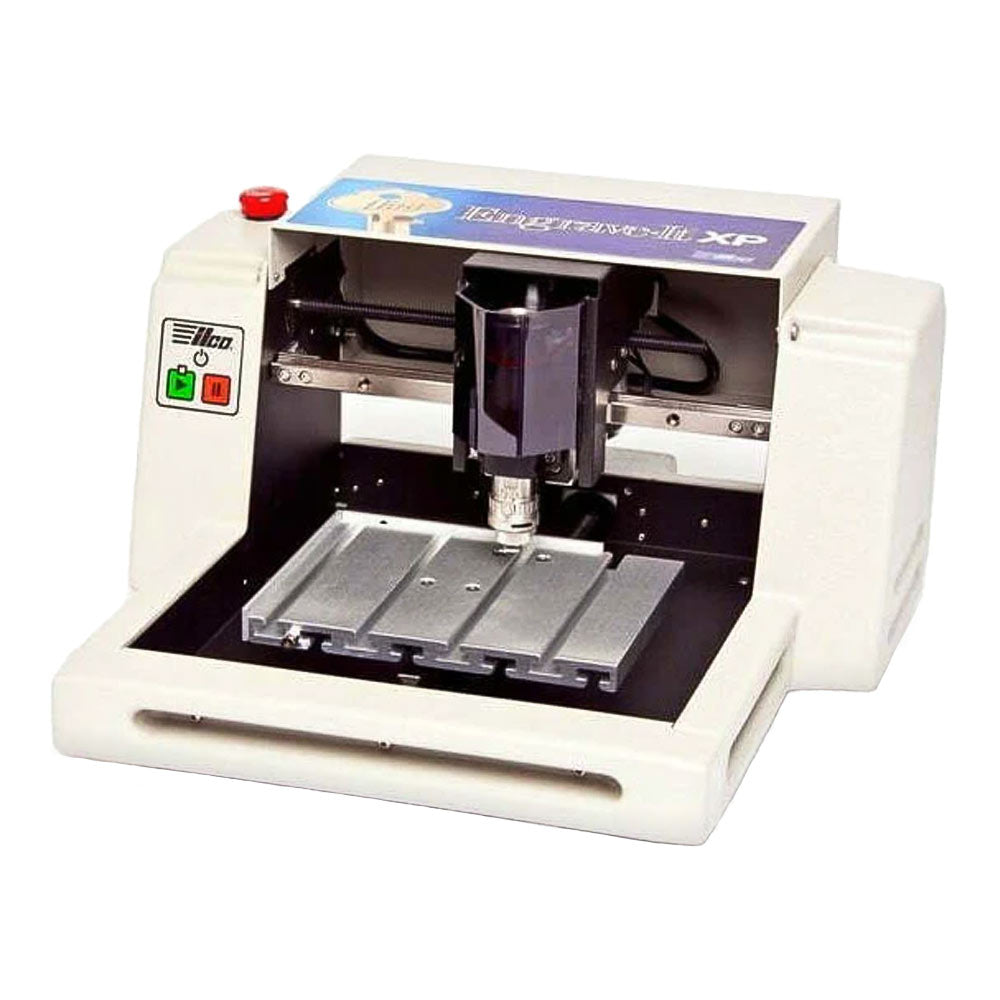

Ilco Engrave It XP Electronic Engraving Machine

Ilco Engrave It XP Electronic Engraving Machine

Regular price $7,198.12 USD
Regular price $8,637.74 USD Sale price $7,198.12 USD
Sale Sold out

Ilco Engrave It XP Electronic Engraving Machine

The Engrave-It��� XP is an affordable, easy-to-operate mid-level engraving machine. With many of the same features as the higher-end Engrave-It ��� Pro model, the Engrave-It��� XP is an affordable, easy-to-operate mid-level engraving machine suitable for a store, shop, or institutional environment.

Features:
  • Includes over 1100 fonts, and 5000 clip art styles with the ability to add more
  • Automatically or manually set text sizing option
  • Engraves at 3��� (50.8 mm) per second
  • Software is easy to use for both simple tasks and professional projects
  • Does not need double stick tape or clamps thanks to multi-mat
  • Easy alignment with adjustable edge guides
  • Red laser tracking pointer previews jobs
  • Engraves Single or multiple items
  • Sequential numbering
  • Key Holders: Trays that hold popular keys are available. These trays hold up to 12 key blanks.
  • Specialty Holders: Many specialty holders are available for engraving IC cores, pet tags, brass plates, and more.

*All compatible Key Holders are sold separately

Specifications:
Software: Vision Expert
Movement: Stepper motor controlled engraving head positioning
Interface: Ethernet
Speed: 0.0002��� (.005 mm) / 3��� (76.2 mm) second
Warranty: 1-Year Limited Warranty
Power: 110/220 5 Amp,��1/7 HP Spindle Motor
Dimensions: 17.5���W x 17.5���D x 9.5���H (444.5 mm W x 444.5 mm D x 241.3 mm H)
Computer Specs:

A customer-supplied PC is required to operate the Engrave-It PRO.

Recommended system requirements��� CPU-dual core 2 GHz (or faster) CPU, 40GB Hard Drive, 2GB RAM, Windows 7 (32 or 64 bit) operating system

Minimum system requirements��� Single Core 2 GHz CPU, 5GB Hard Drive, 1GB RAM, Windows XP, Windows Vista or Windows 7 (32 or 64 bit) operating system.

Includes:
  • Engrave-it XP System
  • USB Memory Stick (holds Engrave-It XP software, Installation Guide, Tutorial and User Manual),
  • Two diamond tip cutters,
  • Ethernet to USB adapter (to allow connection to machine and internet).
  • Quick lock vise
Engrave-It XP Basic Operation:
