ILCO Duo Plus Key Machine / Key Cutting Machine

ILCO Duo Plus Key Machine / Key Cutting Machine

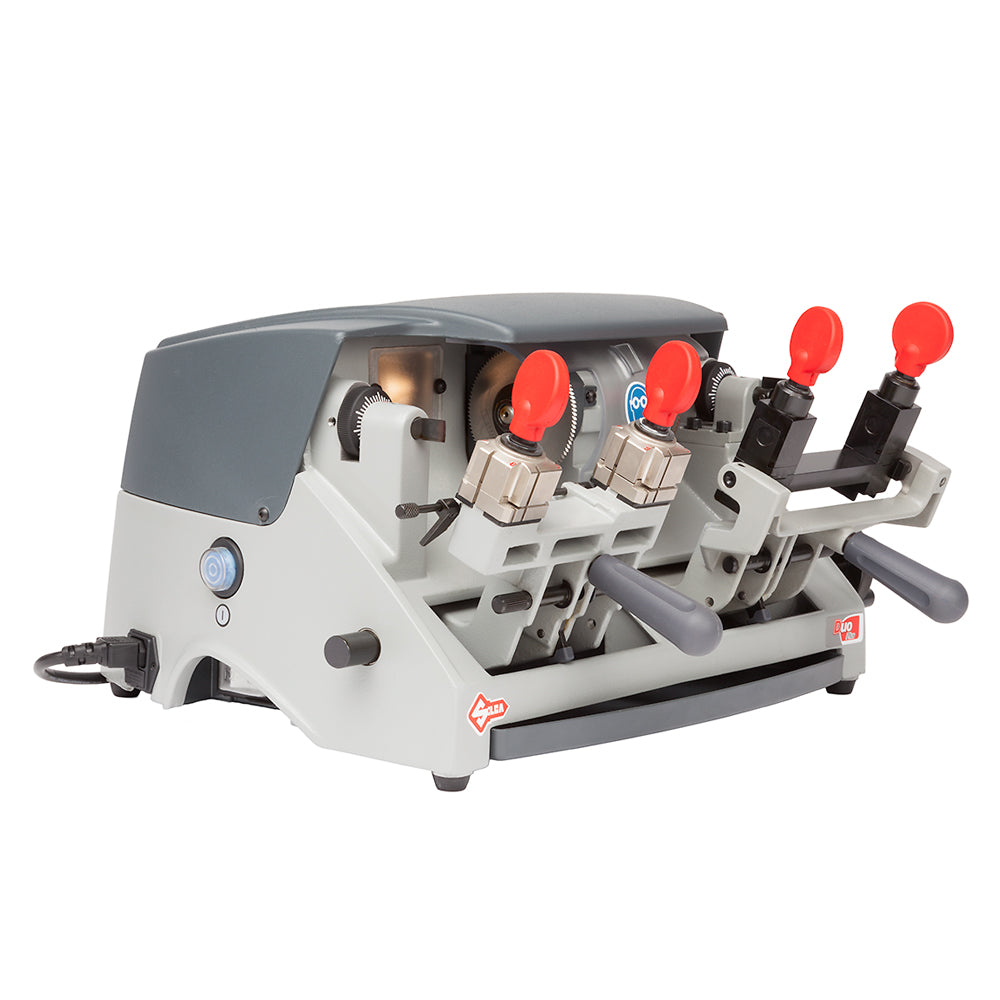

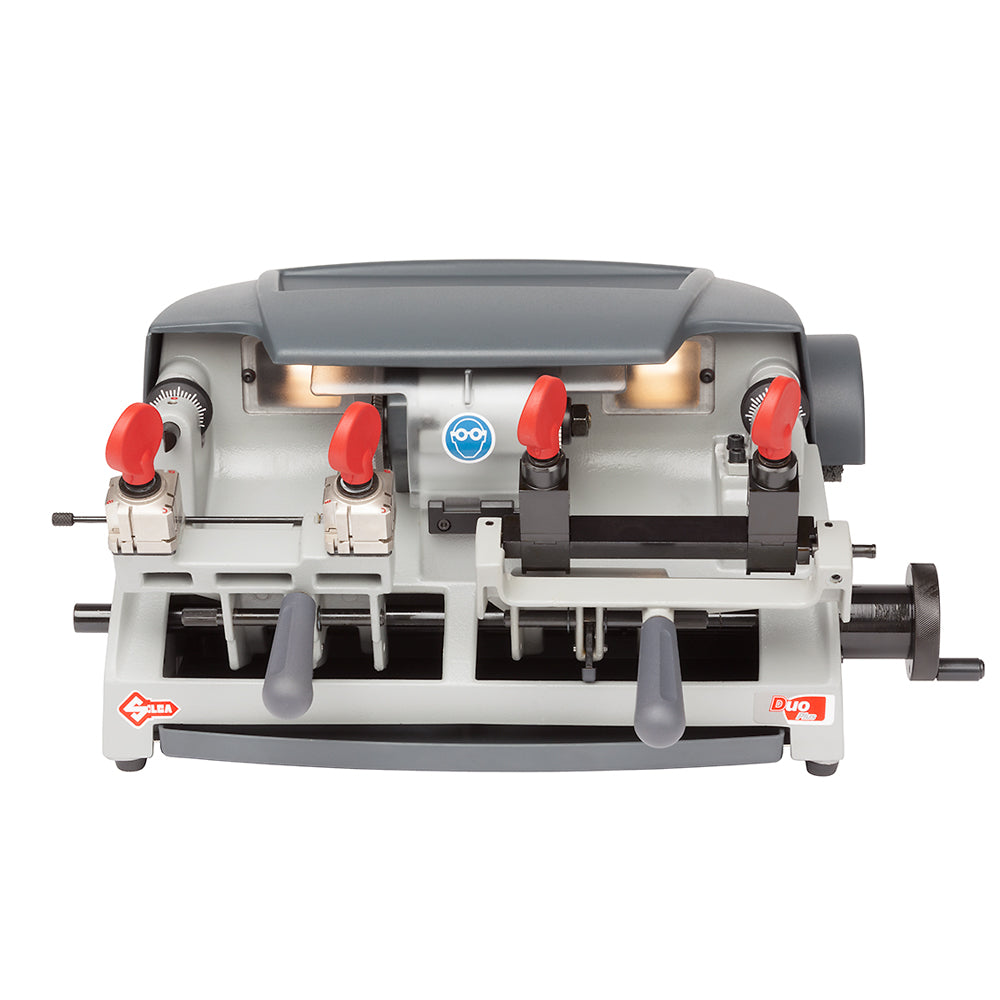

Duo Plus is a multifunction, manually operated machine that duplicates edge cut keys, bit, double bit, Abus and Abloy style keys. The Duo Plus is a dual carriage machine that cuts cylinder, vehicle and cruciform keys (lefthand carriage) as well as bit, double bit, flat style (safe, safety deposit, mailbox) and special keys such as Abus and Abloy type keys (righthand carriage).

Description:

• The tilting mechanism makes it possible to make excellent flares on bit and double bit keys
• Innovative carriage release system for free-moving or regulated carriage
• Foursided revolving clamps on the left side for edge cut style
• Two/three sided revolving clamps on the right for Abus�� and Abloy�� type keys
• Cutout switch that triggers automatically should power fail
• LED lighting illuminates work area
• Large swarf tray.

Specifications:

• Power Supply: 120V60Hz, Rated Current 2.7 Amps
• Motor: .25HP, single phase, 1700 rpm
• Cutter: BC0605XXXX / BC0606XXXX both are HSS
• Cutter Guide: BJ0928XXXX / BJ1229XXXX
• Brush: BJ0929XXXX 3/8" (10 mm) Nylon

Dimensions:

• Width: 20.1" (510 mm)
• Depth: 17.7" (450 mm)
• Height: 11" (280 mm)
• Weight: 50.7 lbs. (23kg)

Part #: BH0058XXXX / D736249ZB

Return Policy:

• For technical support, please contact Kaba Ilco directly at 1-800-334-1381 (option 8), or click here to visit their support page. Once you have a documented call to the Kaba Ilco tech support team and the Kaba Ilco sales representative then contact Locksmith Keyless for the return.

• Key machines that are used and not defective may not be eligible for return.
