ILCO - Deadbolt Mortise Lock - Hookbolt - 31/32" Backset - 628/313 - Clear/Dark Bronze Faceplates - Grade 1

ILCO - Deadbolt Mortise Lock - Hookbolt - 31/32" Backset - 628/313 - Clear/Dark Bronze Faceplates - Grade 1��

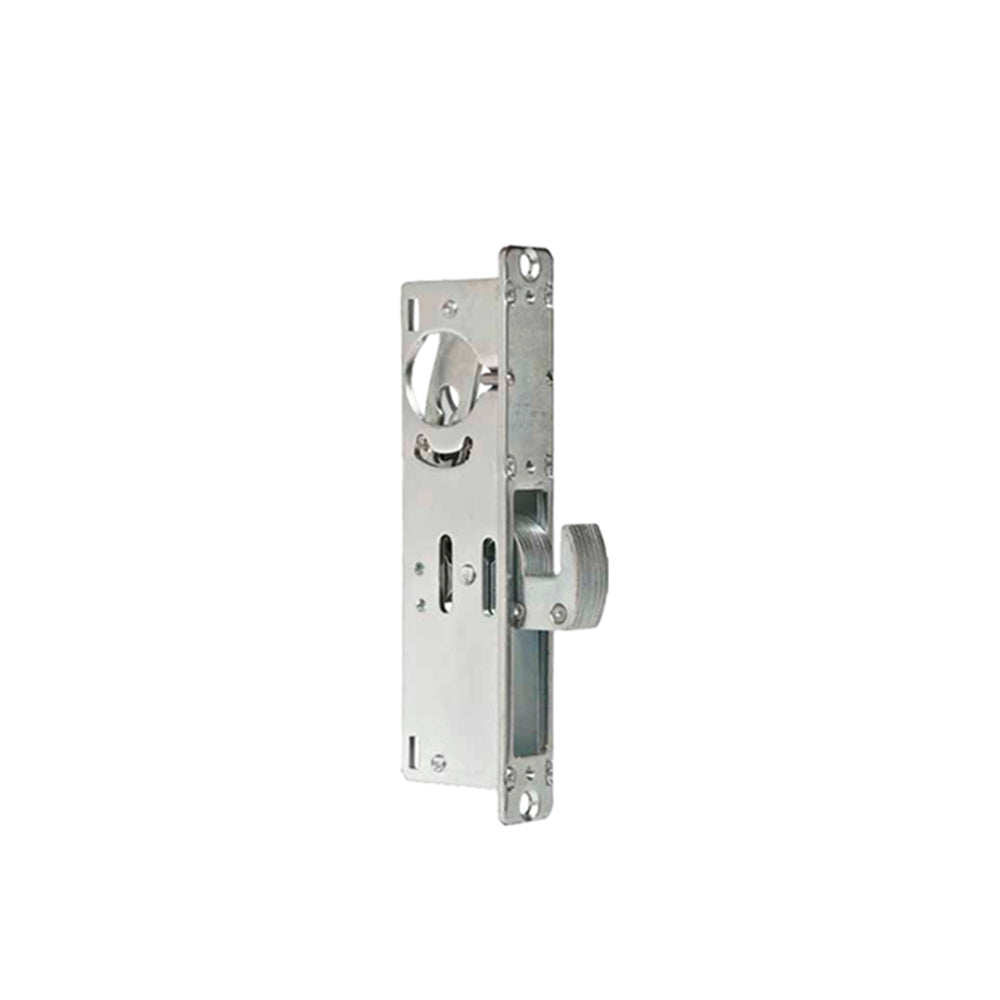

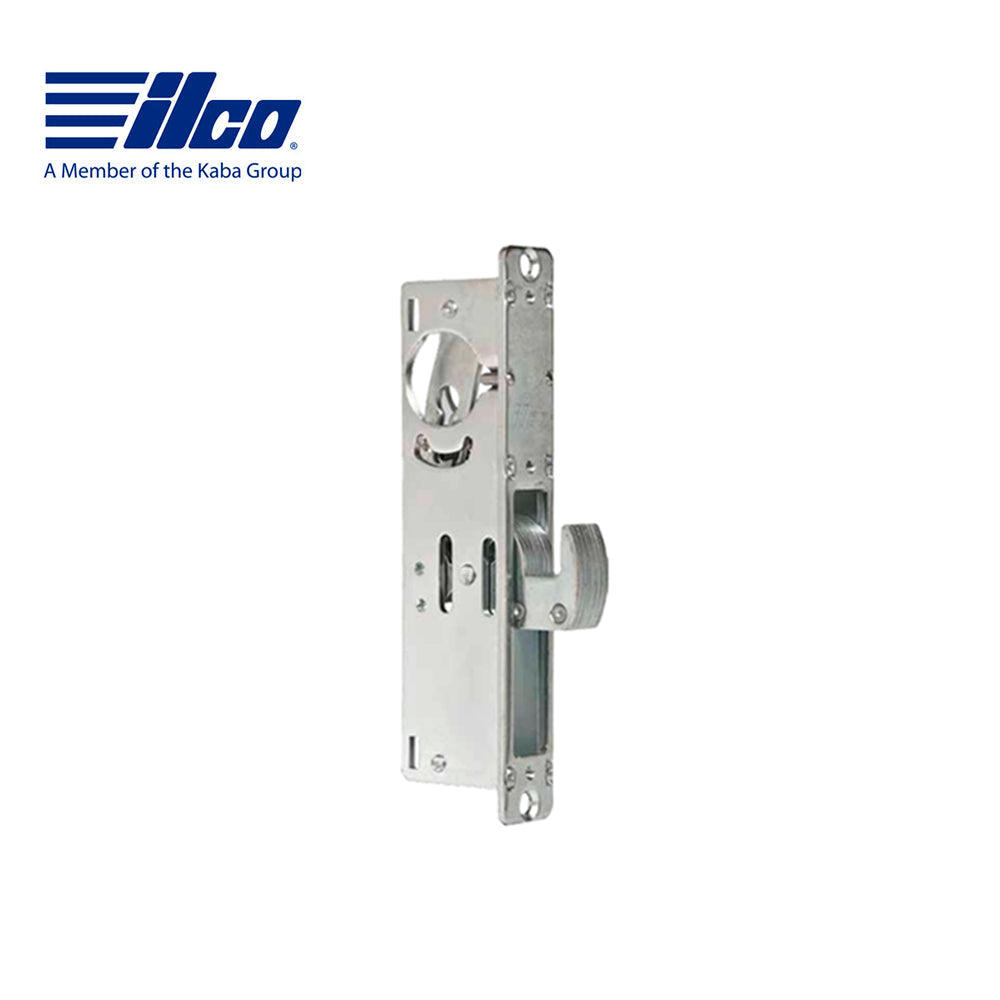

185 Series Deadbolt Mortise Lock - Hookbolt
-For Aluminum Stile Doors
-Five-ply laminated steel bolt with concealed hardened steel pin provides
maximum security on single leaf doors
-Cycle testing exceeds ANSI Grade 1 standards
-Steel case with corrosion-resistant plating
-Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder (cylinder not included)
-Interchangeable with 451/452 Series Deadlatches

-Backset: 31/32" (24.59 mm)
-Throw: 13/16" (20.6 mm)
-Faceplate: Flat faceplate
-Bolt Dimensions: 5/8"W x 1 3/8"L (15.88 mm x 34.9 mm)
-Handing: No Handing

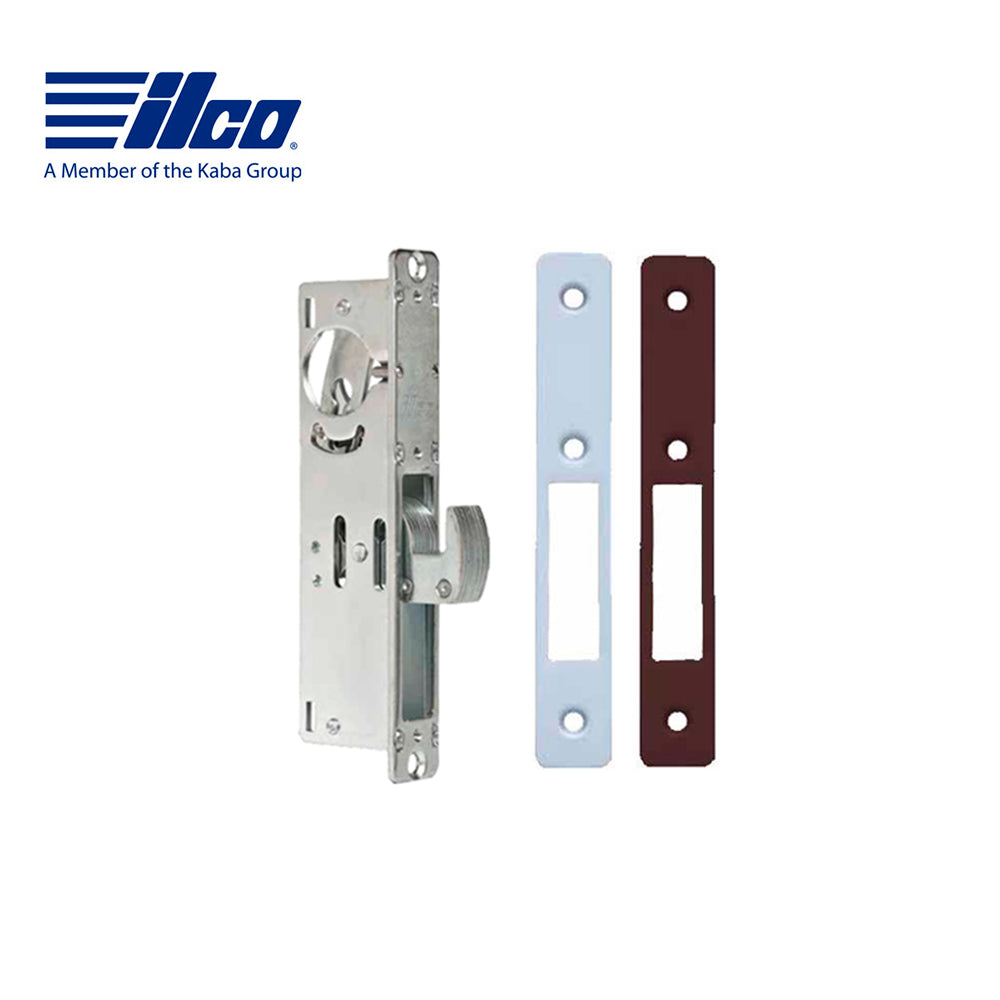

-Faceplates: Clear/Dark Bronze
