ILCO Bravo III with EZ-Jaw Semi-Automatic Duplicator Key Cutting Machine

ILCO Bravo III with EZJaw SemiAutomatic Duplicator Key Cutting Machine

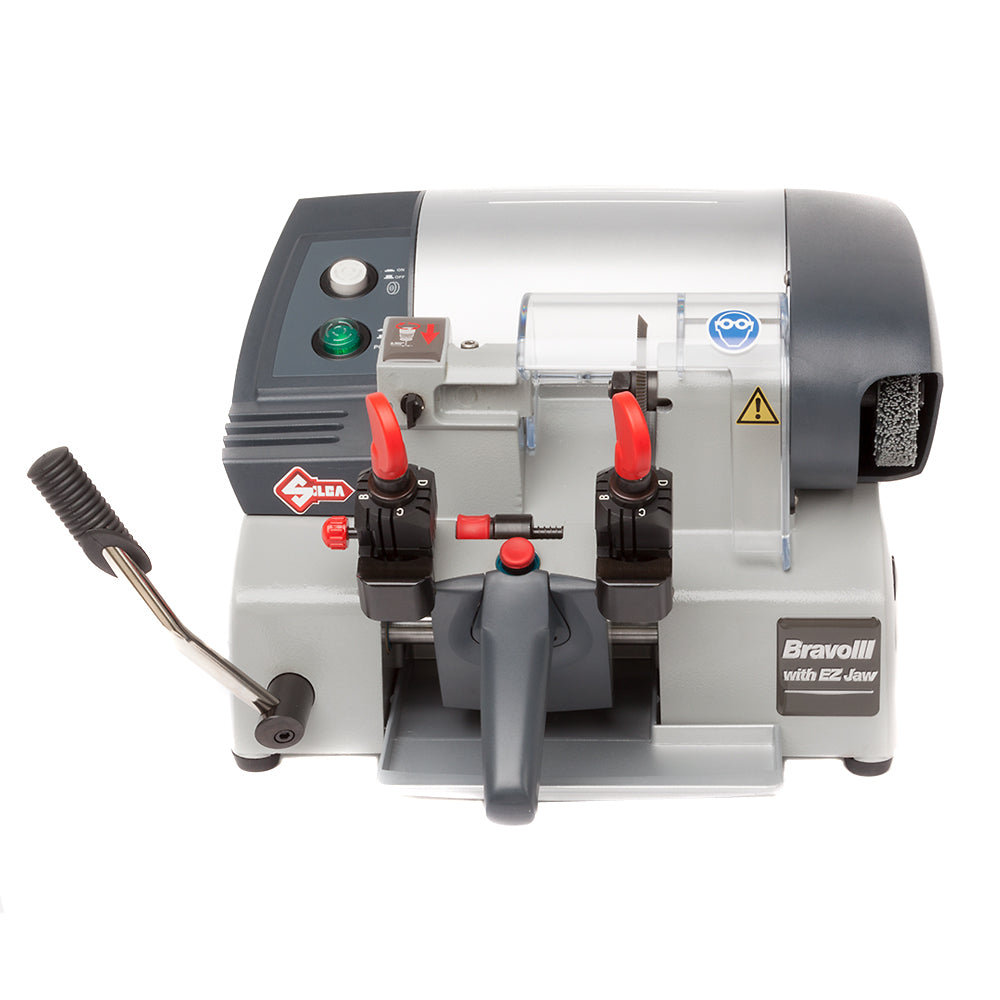

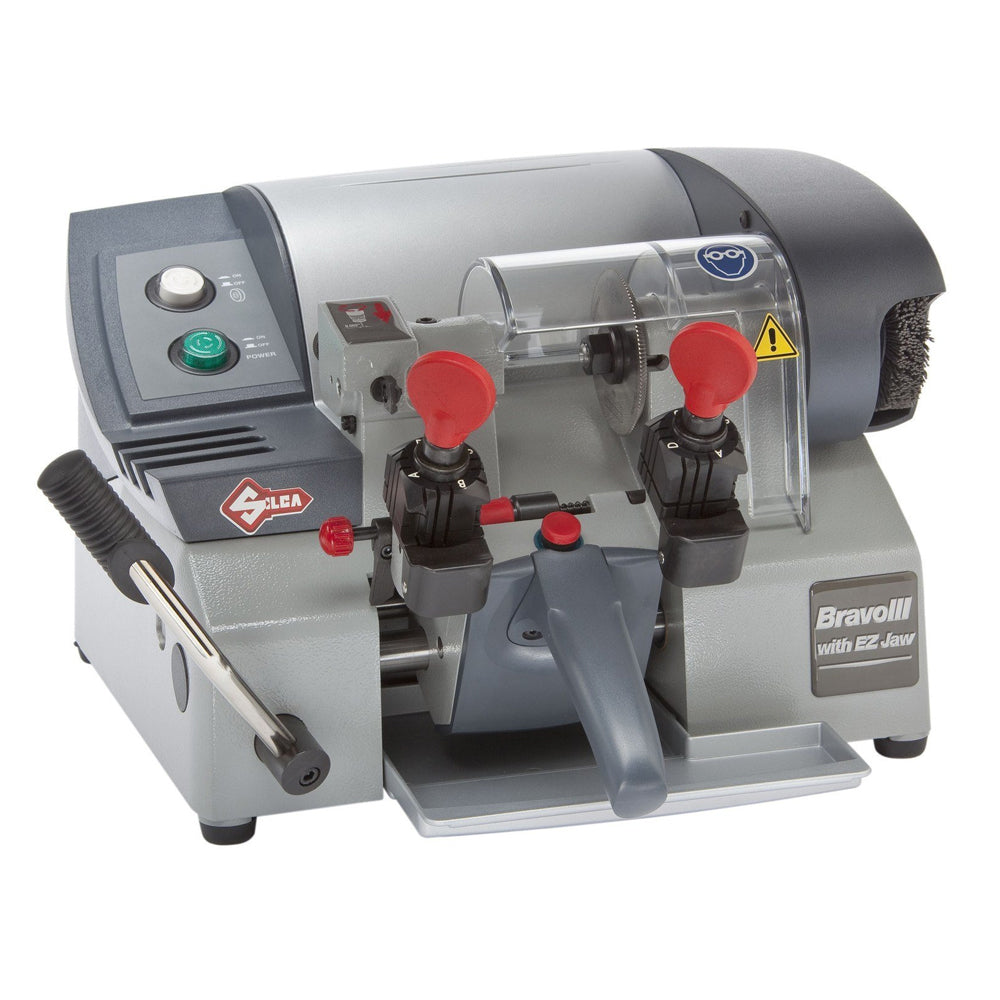

Bravo III with EZJaw The Bravo III is a high precision, heavy duty semiautomatic key machine designed for ultra reliability and ease of use. The Bravo III key machine is provided with the CU50A cutter and a corresponding cutter guide. The durable cobalt steel cutter ensures a smooth, clean, accurate cut. The Bravo III is designed to duplicate common cylinder and automotive key blanks as well as Titanand older GM with 90 degree first cut bitting characteristics.

Description:

• Wide spacing between vise jaws accommodates new longer keys and large headed keys.
• Versatile fourposition EZJaw vise jaws securely grip virtually all residential, commercial, and automotive keys��� including doublesided types, without requiring adapters. Designed with the user in mind, they are rotatable from one position to another without lifting first.
• Carriage is spring loaded, provides consistent cutting pressure, and reduces potential for miscuts.
• Automatic cutter start feature controlled by microswitch is activated by raising or lowering the carriage.
• Precise adjustments. A tracer point with micrometer dial regulation makes it quick and easy to adjust depth of cut; simple to replace when worn.
• Carriage release button can only be activated when the key gauges are in the down position, preventing potential cutter contact.
• Two carriage shafts ensure sensitivity and precision in the cutting movement.
• Features a ���softtouch��� deburring nylon brush.

Specifications

• Motor: 110V standard; 1��� 4 hp capacitor start
• Vise Jaws: EZJaw���
• Cutter: CU50A milling cutter, flat left side, cobalt steel
• Brush: D925102ZR
• Dimensions: 15���W x 20��� D x 10��� H (38cm x 51cm x 25cm)
• Weight: 47 lbs. (21.4kg) Part #: BH0055XXXX / D837922ZB

Return Policy:

• For technical support, please contact Kaba Ilco directly at 1-800-334-1381 (option 8), or click here to visit their support page. Once you have a documented call to the Kaba Ilco tech support team and the Kaba Ilco sales representative then contact Locksmith Keyless for the return.
• Key machines that are used and not defective may not be eligible for return.
