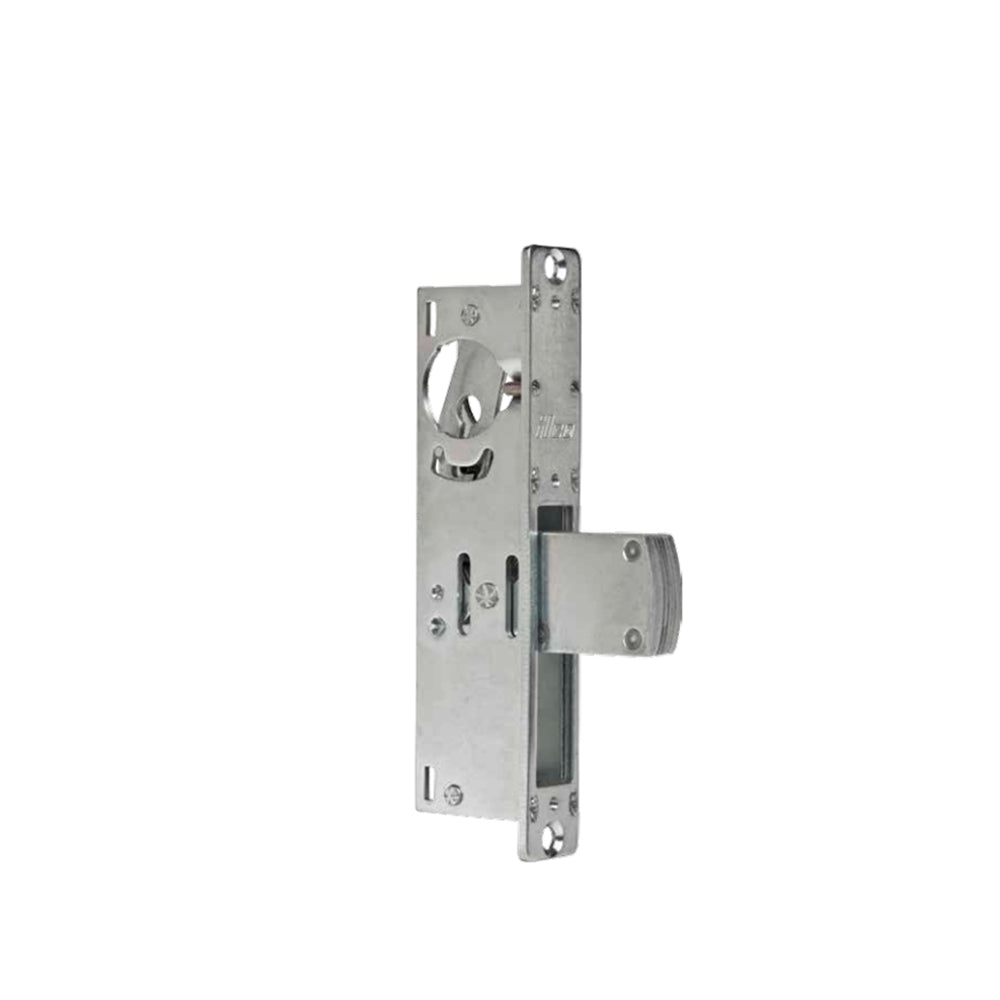

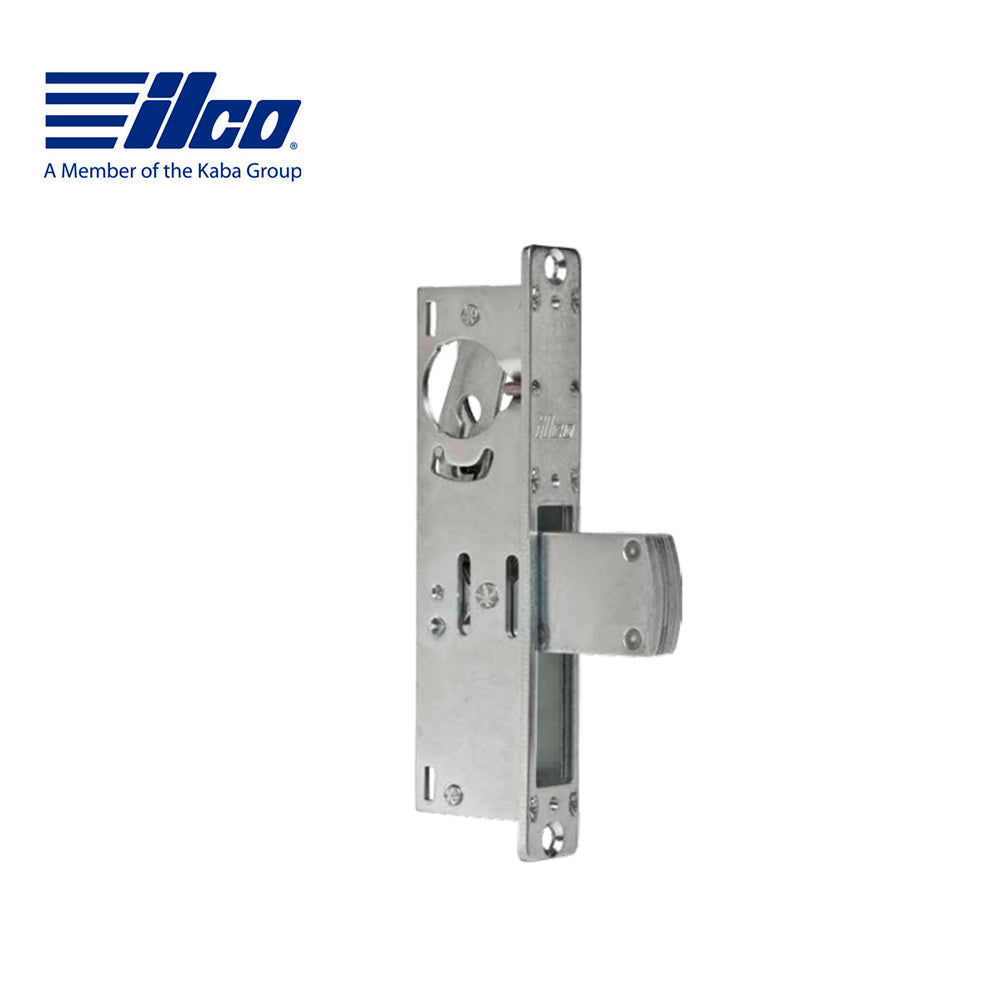

ILCO - 185 Deadbolt Mortise Lock - 1 1/8" Backset - No Handing - Flat Faceplate - Clear/Dark Bronze

ILCO - 185 Deadbolt Mortise Lock - 1 1/8" Backset - No Handing - Flat Faceplate - Clear/Dark Bronze

ILCO Deadbolt Mortise Lock 1 1/8" Backset, Individual Single Pack. No Handing. Flat Faceplate included with two finishes clear aluminum & Dark Bronze. fits aluminum stile doors. Five-ply laminated steel bolt with concealed hardened steel pin provides maximum security on single leaf doors.

-For Use With: For Aluminum Stile Doors
-Features: Five-ply laminated steel bolt with concealed hardened steel pin provides

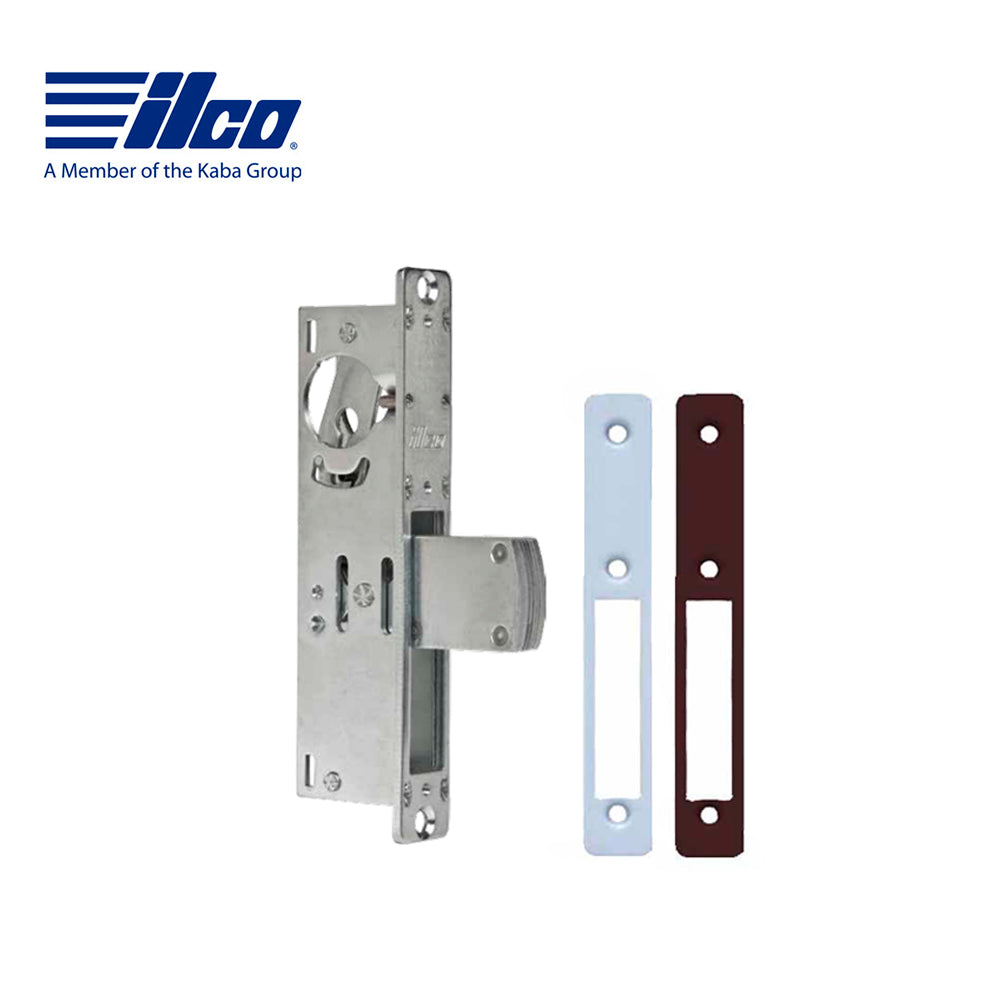

-Faceplates: Clear Aluminum & Dark Bronze
-Grade: Cycle testing exceeds ANSI Grade 1 standards
-Construction: Steel case with corrosion resistant plating
-Cylinder: Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder
-Accepts Deadlatch: Interchangeable with 451/452 Series Deadlatches
-Backset: 1 1/8" (28.58 mm)
-Bolt Dimension: 5/8"W x 2 7/8"L (15.88 mm x 73.03 mm)
-Throw: 1 3/8" (34.9 mm)
