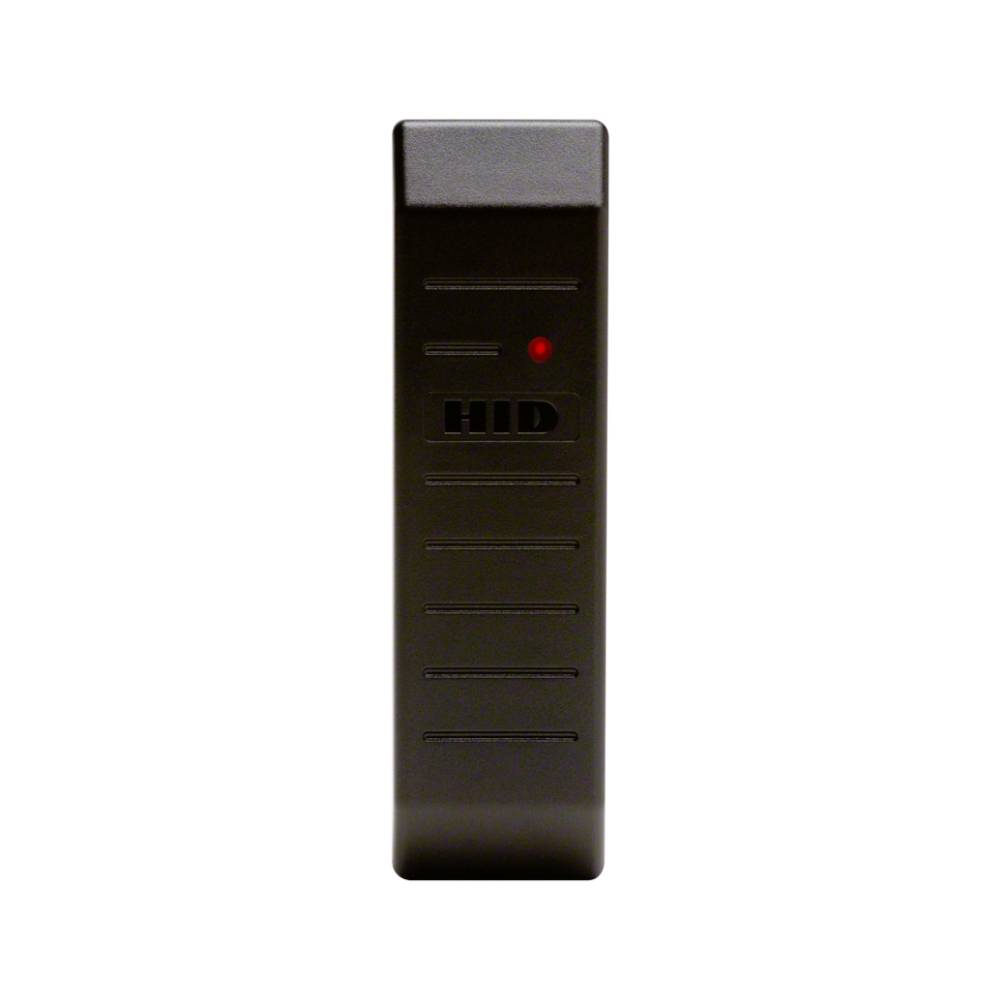

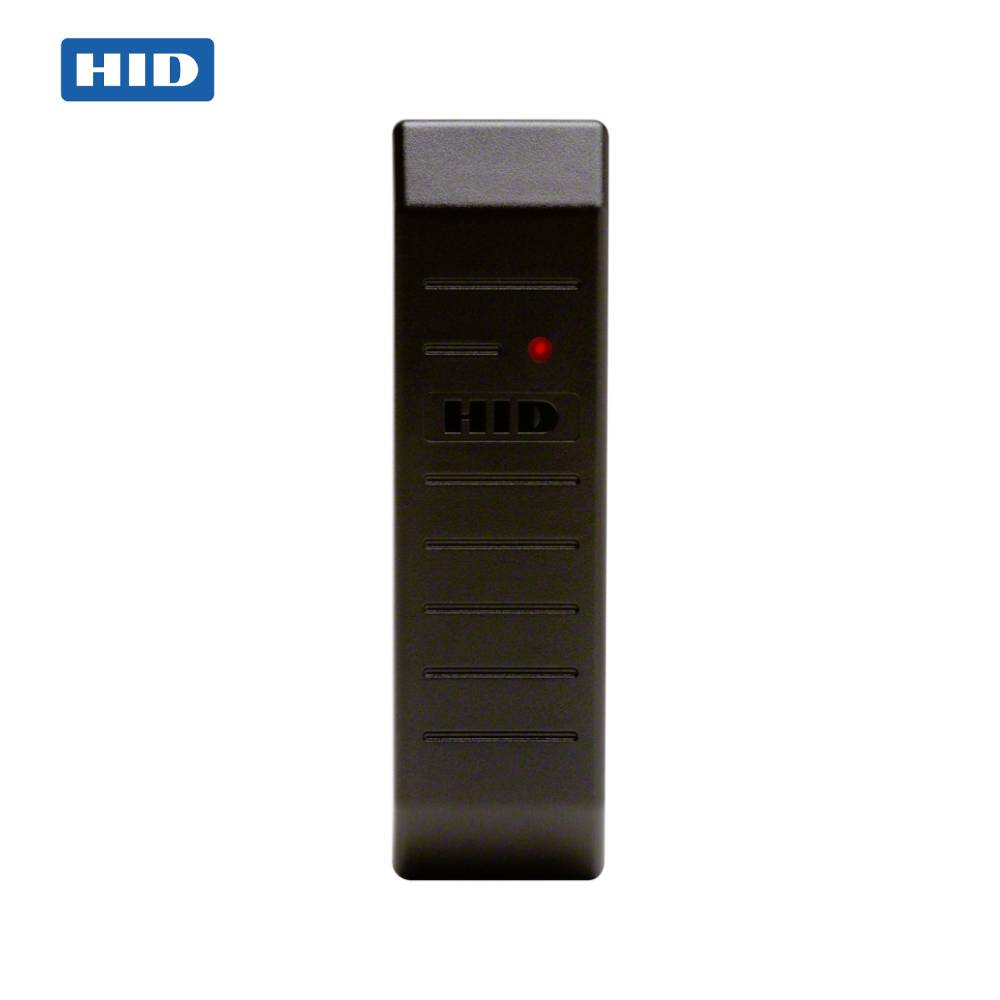

HID - 5365EGP00 - MiniProx® 125 kHz Mullion Mount Proximity Card Reader - Wiegand

HID - 5365EGP00 - MiniProx® 125 kHz Mullion Mount Proximity Card Reader - Wiegand

The MiniProx® proximity card reader’s potted electronics enhance the security of the reader. The slim, attractive design is ideal for indoor or outdoor mounting.

• Available with either pigtail or terminal strip (terminal strip only for Hazardous Location version).
• Potted reader suitable for indoor or outdoor use.
• Hazardous Location version is UL 1604, Class I & II, Div. 2 and Class III listed.

Features

• Accepts 5 to 16 volts, meeting most voltage requirements.
• Available with Wiegand or Clock-and-Data interface
• Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling
• of new cable required.
• Offers high reliability, consistent read-range and low power consumption in an
• Mounts directly onto metal with no change in read range performance
• Provides multicolor LED, compatibility with all standard access control systems
• and internal or host control of LED and beeper.
• Includes multilingual installation manual.

Specification:

Typical Maximum Read Range

• ProxCard® II Card - up to 5.5" (14 cm)
• ISOProx® II Card - up to 5" (12.7 cm)
• DuoProx® II Card - up to 5" (12.7 cm)
• Smart ISOProx®/DuoProx® cards - up to 5" (12.7 cm)
• Proximity & MIFARE® Card - up to 5" (12.7 cm)
• ProxCard Plus® Card - up to 2" (5.1 cm)
• ProxKey® II Keyfob - up to 2" (5.1 cm)
• MicroProx® Tag - up to 2.5" (6.4 cm)

Dimensions

• 6.0" x 1.7" x 1.0"(15.2 x 4.3 x 2.54 cm)

Power Supply

• Standard MiniProx: 5-16 VDC
• Haz. Loc. MiniProx: 5-16 VDC
• Linear power supplies are recommended.

Current Requirements

• Average: 30 mA (5 VDC); 20 mA (12 VDC)
• Peak: 110 mA (5 VDC); 110 mA (12 VDC)

Operating Temperature

• -22° to 150° F (-30° to 65° C)

Operating Humidity

• 0-95% relative humidity non-condensing

Weight

• With terminal strip: 3.5 oz. (99 gm)
• With pigtail: 3.8 oz. (108 gm)
• Haz. Loc. MiniProx: 3.8 oz. (108 gm)

Cable distance

• Wiegand interface: 500 feet (150 m)
• Clock-and-data interface: 50 feet (15 m)
• Recommended cable is ALPHA 1295 (22 AWG)
• 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be
• required for LED or beeper control.
