HES - K200 Series - Wiegand Cabinet Lock

HES - K200 Series - Wiegand Cabinet Lock

$415.25 USD
$519.06 USD $415.25 USD
Sale Sold out
Application
Card Technology

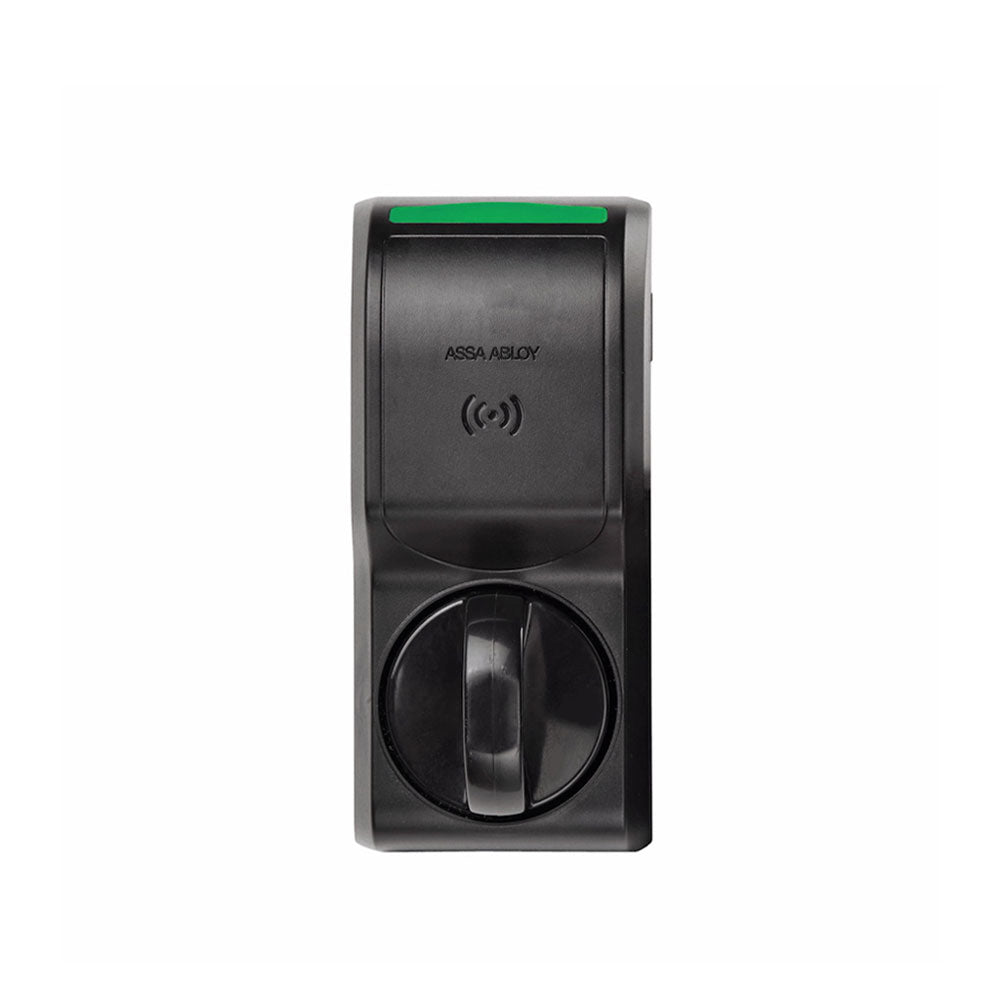

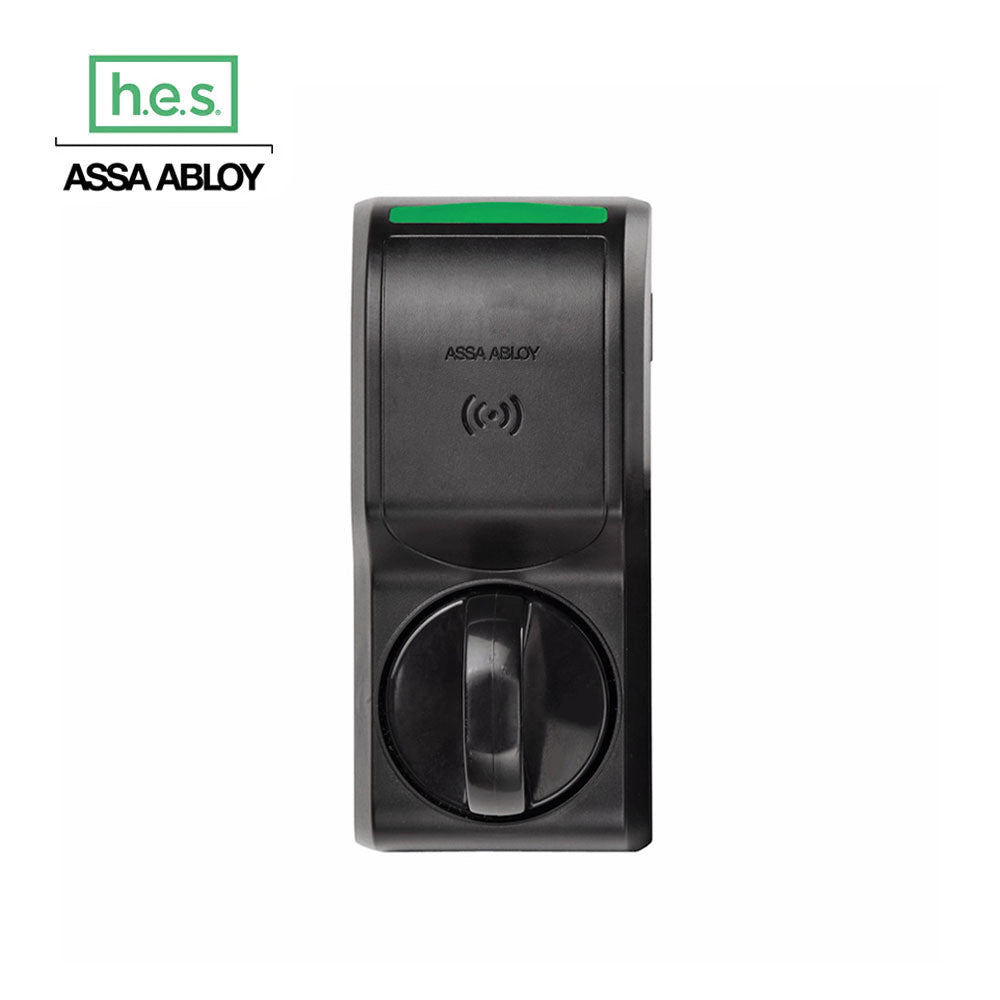

HES - K200 Series - Wiegand Cabinet Lock

The hard powered HES K200 Cabinet Lock comes standard with locked state monitoring, optional mechanical key override and over 150 lbs of holding force.

Features:
  • Multi-technology reader
  • Integrates with existing access control systems
  • Hard wired Wiegand communication
  • Mechanical key override capable (cam lock not included)
  • Static strength 150 lbs
  • Latchbolt status monitoring
  • Dual voltage 12 or 24 VDC
  • Non-handed
  • Installs on wood or metal cabinet doors
  • Works with cabinet doors and lockers up to 1-1/2 Inch thickness
Product Specifications:
Vendor Assa Abloy
Manufacturer HES
Handing Non-handed
Credential Type Card
Knob Type Thumbturn
LED Red Amber / Green Amber
Override Type Mechanical Key
Door Type Swinging / Sliding
Door Material Wood / Metal
Installation Point Front
Fail Safe / Fail Secure Fail Secure
Certified Yes
Technical Specifications:
Voltage 12/24 Dual Voltage
Battery Backup No
Current 12v DC 226
Current 24v DC 118
Input Voltage 12/24 Dual Voltage
Monitoring Options Locked State Monitoring
Monitoring Installation Factory Configured
Monitoring Type DPS
PoE Friendly Yes
Power Source Hardwired
Operating Temperature 32° F - 122° F
Weather Resistance Indoor use only
Holding Force 150
Preload Capable No
Static Strength (lbs) 150
Tamper Resistant No
Card Technology:
  • Card Technology [125 kHz] : HID Prox®|AWID Prox|EM4450 CSN|EM4102|ioProx
  • Card Technology [13.56 MHz] : HID multiCLASS SE®|HID iCLASS®|HID iCLASS SE® (SIO®-enabled)|HID iCLASS® Seos®|ISO 14443b UID|MIFARE CLASSIC|HID DESFire® EV1 SE|FeliCa® (IDm)
  • Mobile Technology : HID Mobile Access (NFC)
  • Card Reader Depth (in) : 2.22
  • Card Reader Height (in) : 4.44
  • Card Reader Width (in) : 3.99
  • IPS- HID multiCLASS SE
