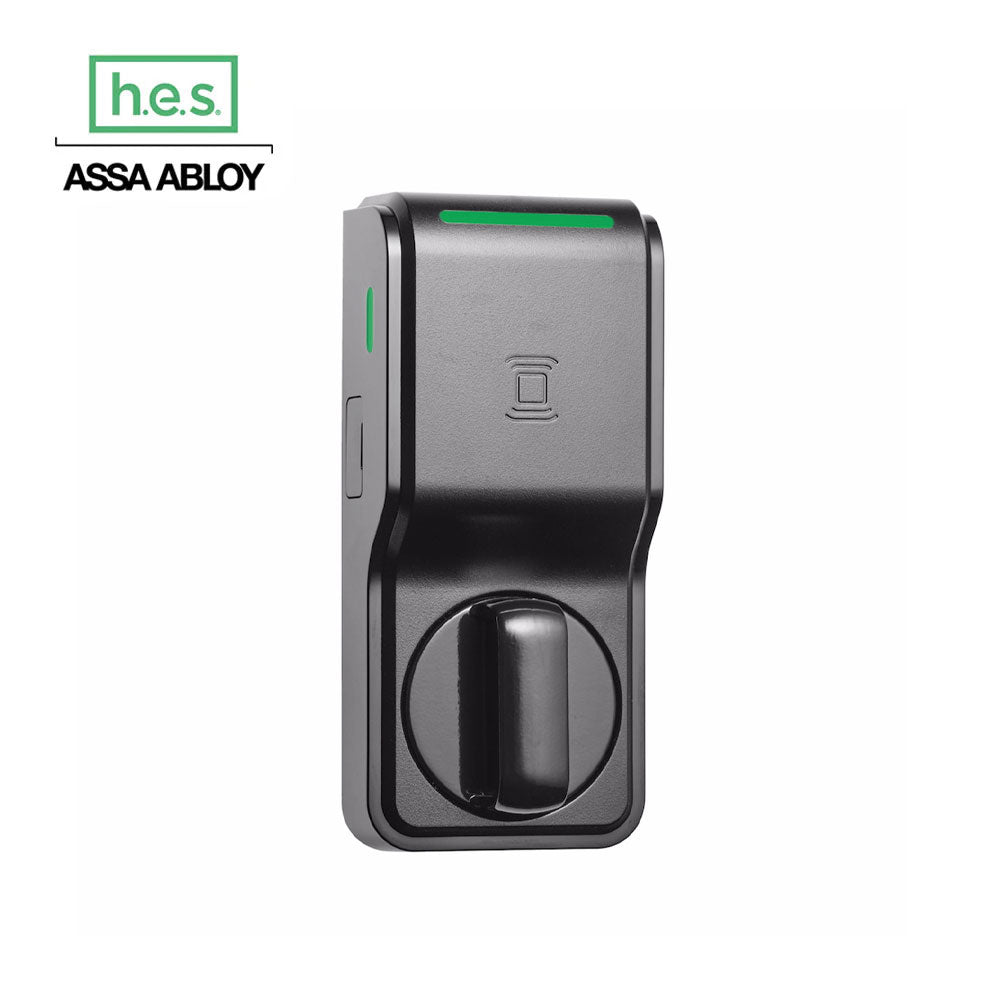

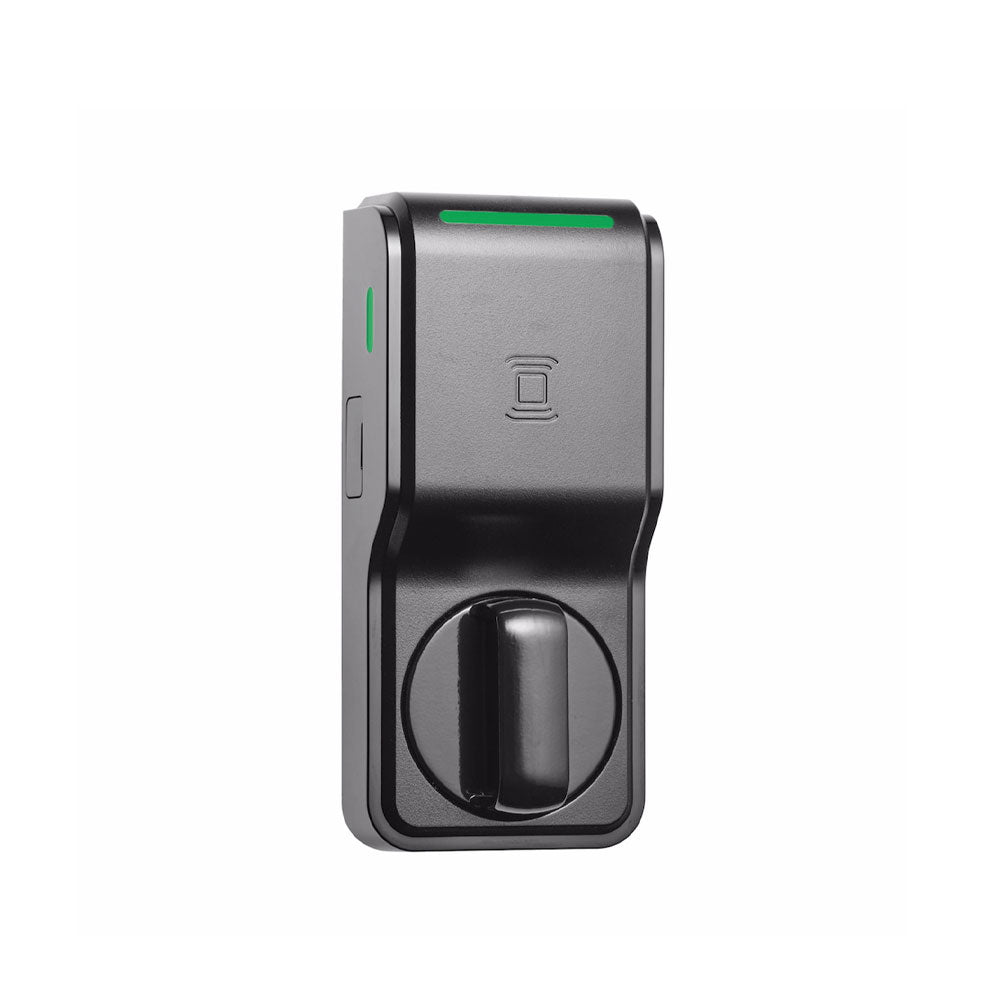

HES - K100 Series - Aperio Cabinet Lock with AH20 Wiegand Wireless Hub
HES - K100 Series - Aperio Cabinet Lock with AH20 Wiegand Wireless Hub
Regular price
$732.56 USD
Regular price
$915.70 USD
Sale price
$732.56 USD
Unit price
per
Couldn't load pickup availability
HES - K100 Series - Cabinet Lock with AH20 Wiegand Wireless Hub
Features:
- Wireless Aperio® technology.
- Integrates with existing access control systems and ID badges.
- Supports HID 125 kHz proximity or 13.56 MHz iCLASS contactless credentials.
- Non-handed.
- Works with cabinet doors and lockers with door thickness of 1/16 Inch to 1-1/2 Inch.
- Automatic latch relock when door is closed.
- Low frequency model supports: Prox, EM Prox.
- High frequency model supports: iCLASS®, iCLASS SEOS™, iCLASS SE, ISO 14443A UID, Mifare, Mifare Plus, Desfire SE, Desfire EV1, NFC.
- High security Grade 1 asset protection with audit control.
- Latchbolt status monitoring.
- Fully-encrypted AES 128 bit wireless communication.
- Online and offline transaction audit trail capabilities.
- Low battery signaling and reporting.
Product Specifications:
| Vendor | Assa Abloy |
| Manufacturer | HES |
| Handing | Non-handed |
| Credential Type | Card / Mobile |
| Style | Pinch, Lever |
| LED | Red/Amber or Green/Amber |
| LED Indicates | Valid/ Invalid Entries |
| Override Type | Mechanical Key |
| Door Material | Wood / Metal |
| Application | Cabinet Doors / Drawers |
| Door Type | Sliding / Swinging |
| Installation Point | Front |
Technical Specifications:
| Monitoring Options | Locked State Monitoring / Tamper Monitoring |
| Monitoring Installation | Factory Configured |
| Monitoring Type | LED |
| Power Source | Battery Operated |
| Battery Backup | Yes- microUSB port |
| Batteries Required | Yes |
| Batteries Included | Yes |
| Battery Cycles | 50000 |
| Battery Type | AA Lithium Batteries |
| Number of Batteries | 2 |
| Preload Capable | No |
| Static Strength (lbs) | 150 |
| Tamper Resistant | No |
| Operating Temperature | 32° F - 122° F |
Card Technology:
- Card Technology (125 kHz) : HID Prox®|AWID Prox|ioProx|EM4102|EM4450 CSN
- Card Technology (13.56 MHz) : HID iCLASS®|HID iCLASS SE® (SIO®-enabled)|HID iCLASS® Seos®|HID MIFARE® SE|HID DESFire® EV1 SE|MIFARE CLASSIC|DESFire® EV1
- Card Reader Depth (in) : 2 4/25
- Card Reader Height (in) : 4 1/2
- Card Reader Width (in) : 3 1/2
- Communication Technology : Wireless – Real Time Wireless|WIRELESS - BLE
- Mobile Technology : HID Mobile Access (BLE and NFC)
