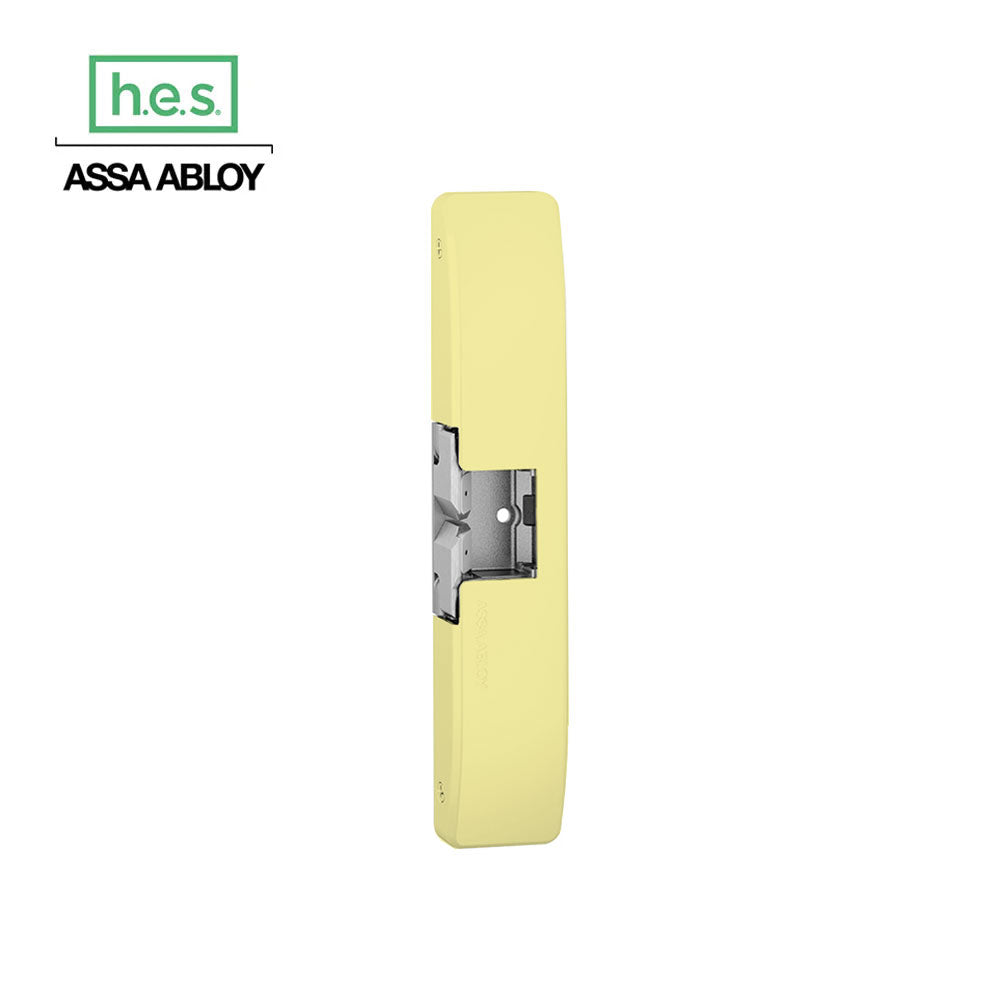

HES - 9600 Series - Electric Strike Body - Grade 1 - 12/24VDC

HES - 9600 Series - Electric Strike Body - Grade 1 - 12/24VDC

Regular price $431.75 USD
Regular price $539.69 USD Sale price $431.75 USD
Sale Sold out

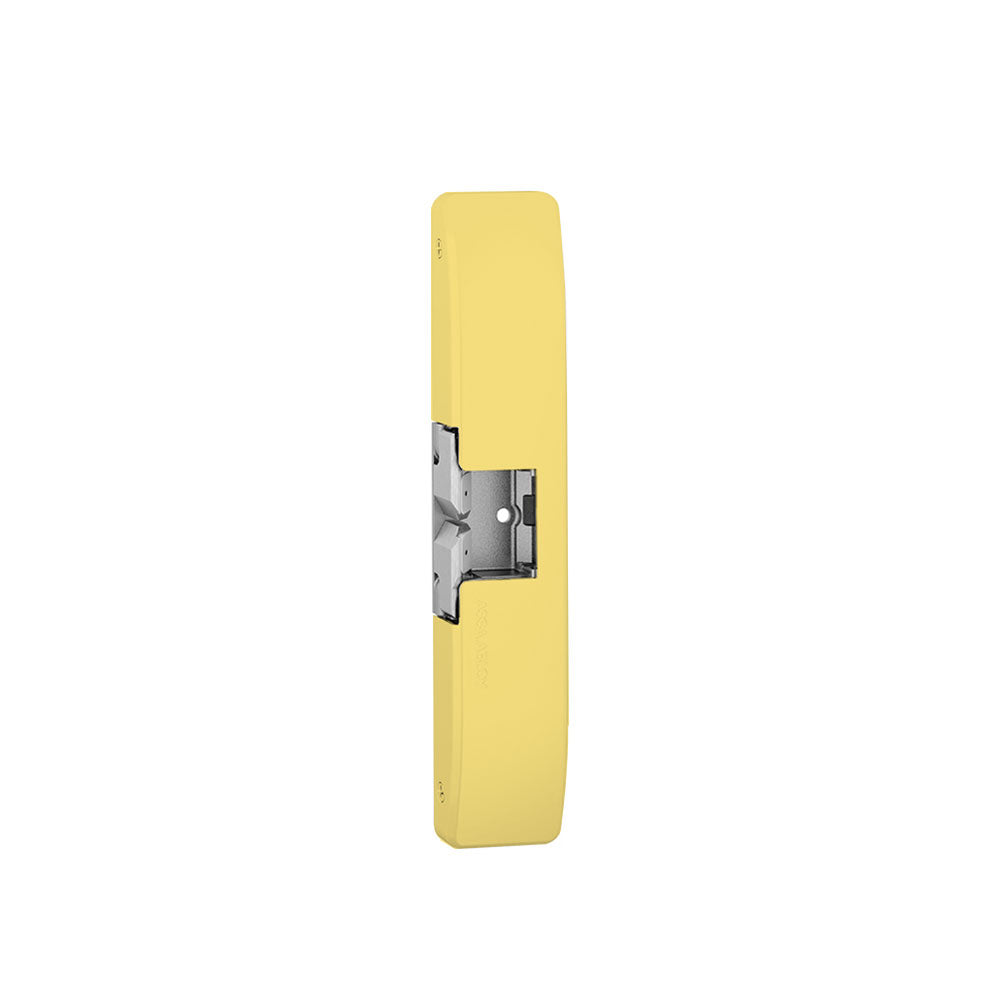

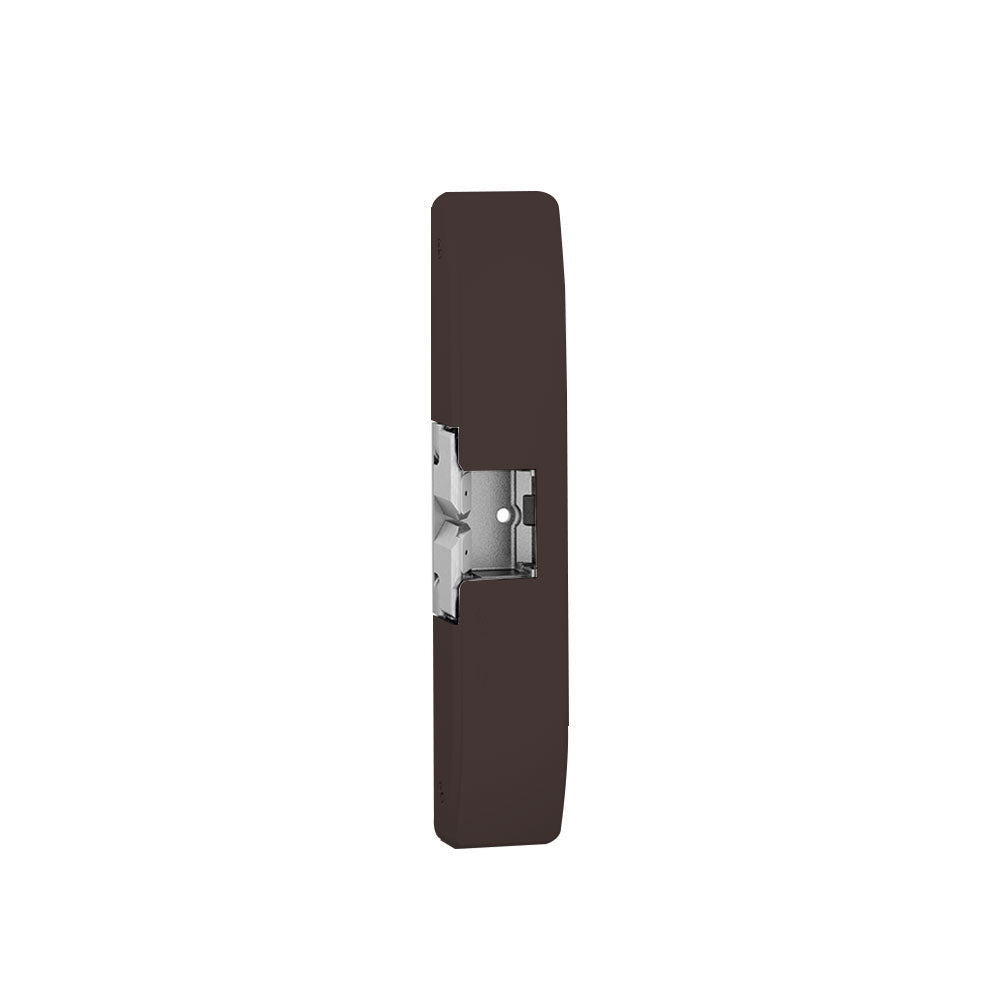

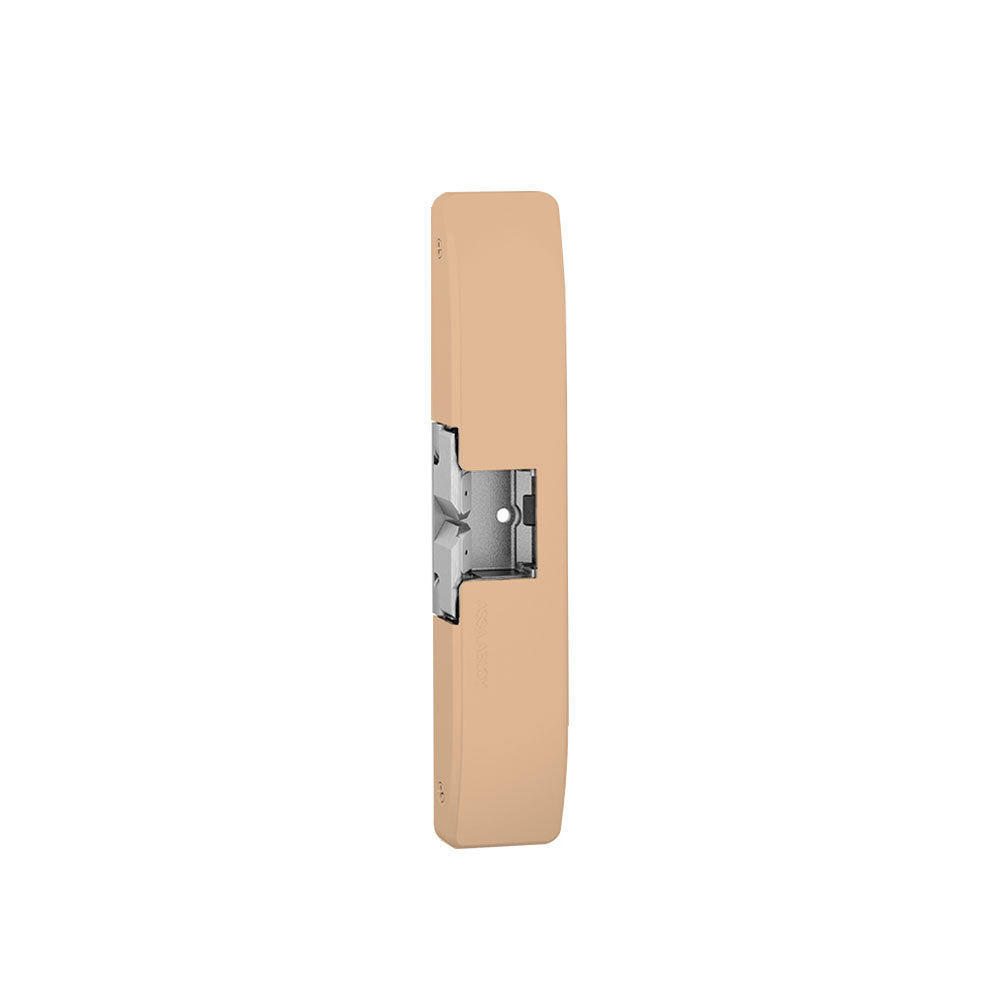

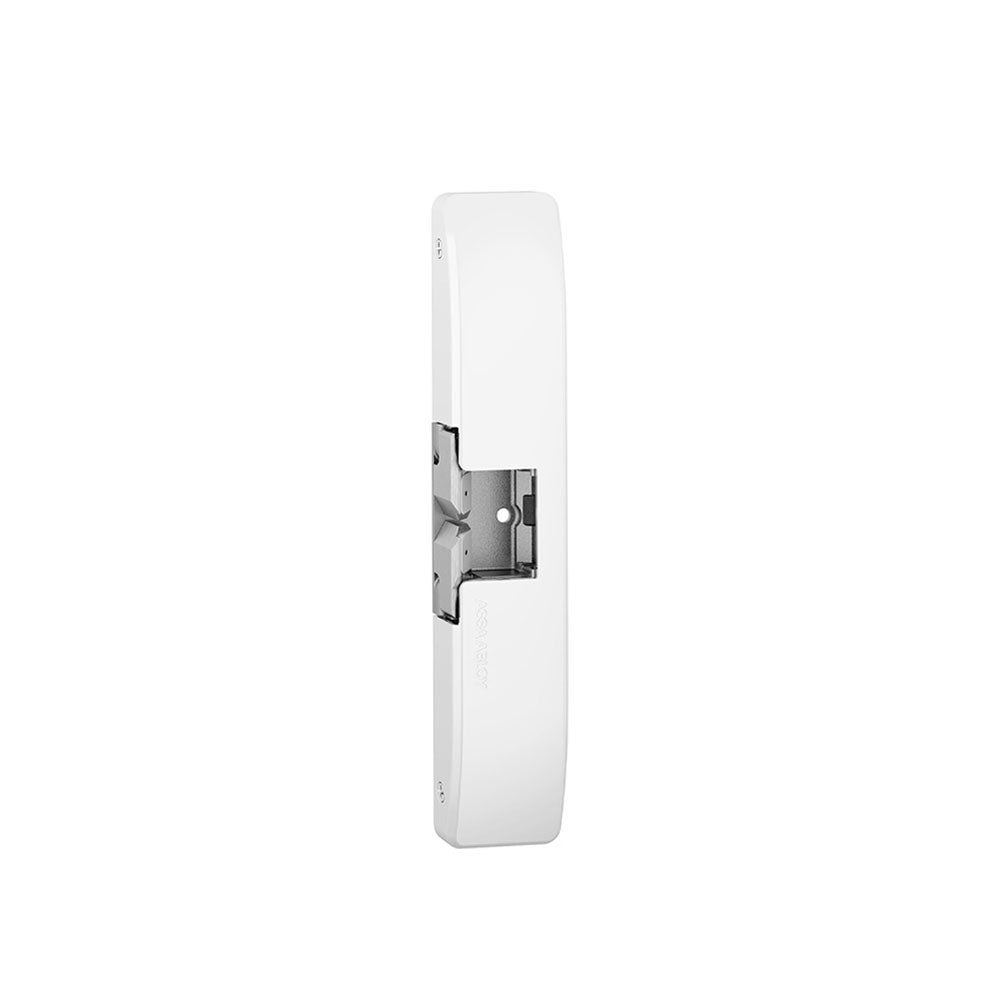

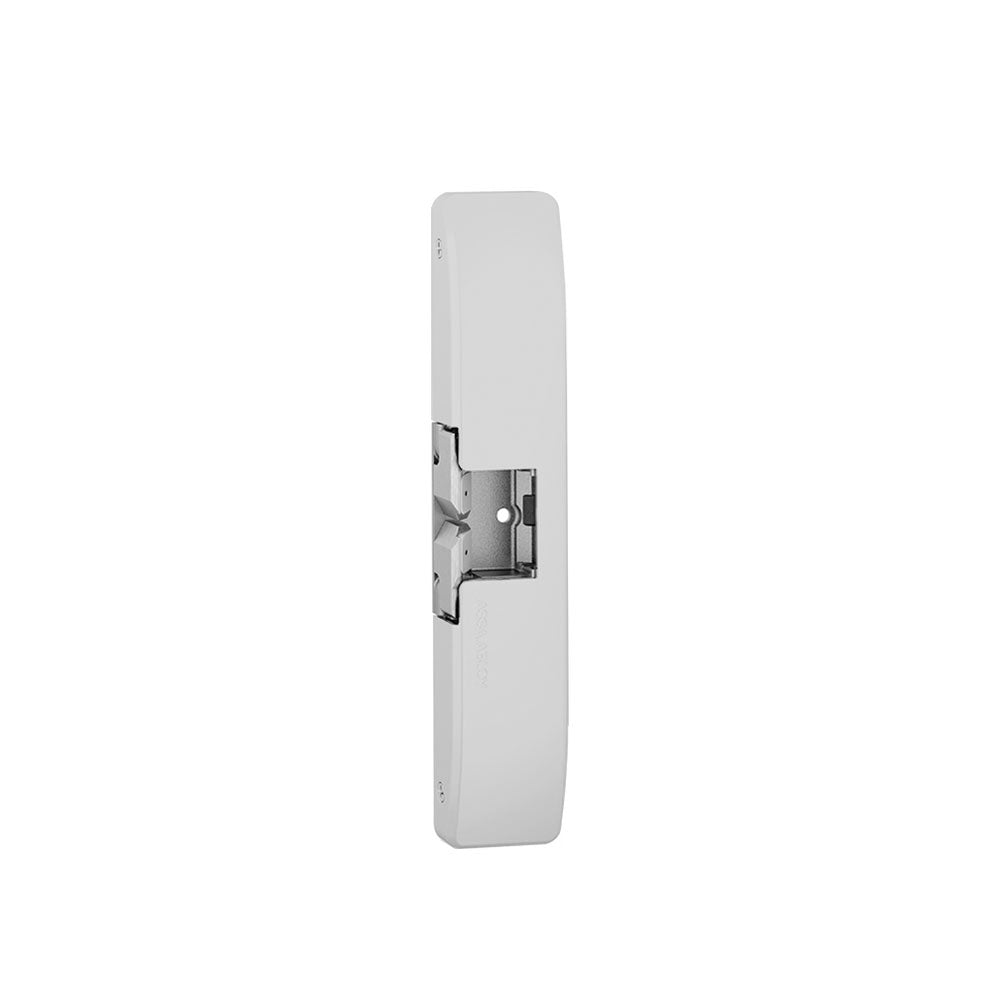

Color
Monitoring Option

HES - 9600 Series - Electric Strike Body - Grade 1 - 12/24VDC

The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4 Inch throw latch. All components are completely encased within its 3/4 Inch thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

Features:
  • Installs in metal or wood frames.
  • Separate base and decorative cover for easy adjustments.
  • Stainless steel construction.
  • Tamper resistant.
  • Static strength 2,000 lbs.
  • Dynamic strength 120 ft-lbs.
  • Endurance 1,000,000 cycles.
  • Field selectable fail safe/fail secure
  • Horizontal adjustability.
  • Non-handed.
  • Internally mounted solenoid.
  • Accommodates up to 3/4 Inch Pullman latch.
  • Dual voltage 12 or 24 VDC.
Product Specifications:
Manufacturer HES
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Rim Panic Device with Pullman Latch
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Technical Specifications:
Function Fail Safe/Fail Secure
Operating Voltage 12/24 VDC
Amp Draw .45 @ 12V .25 @ 24V
Keeper Size PK Keeper
Configuration Centered
For Use With Rim Exit Devices
Faceplate Size 9 Inch x 1-3/4 Inch
Fire Rated No
Holding Force 2000 lbs.
Switch Type Latchbolt Strike Monitor
Frame Application Metal or Wood
Product Type Electric Strikes
