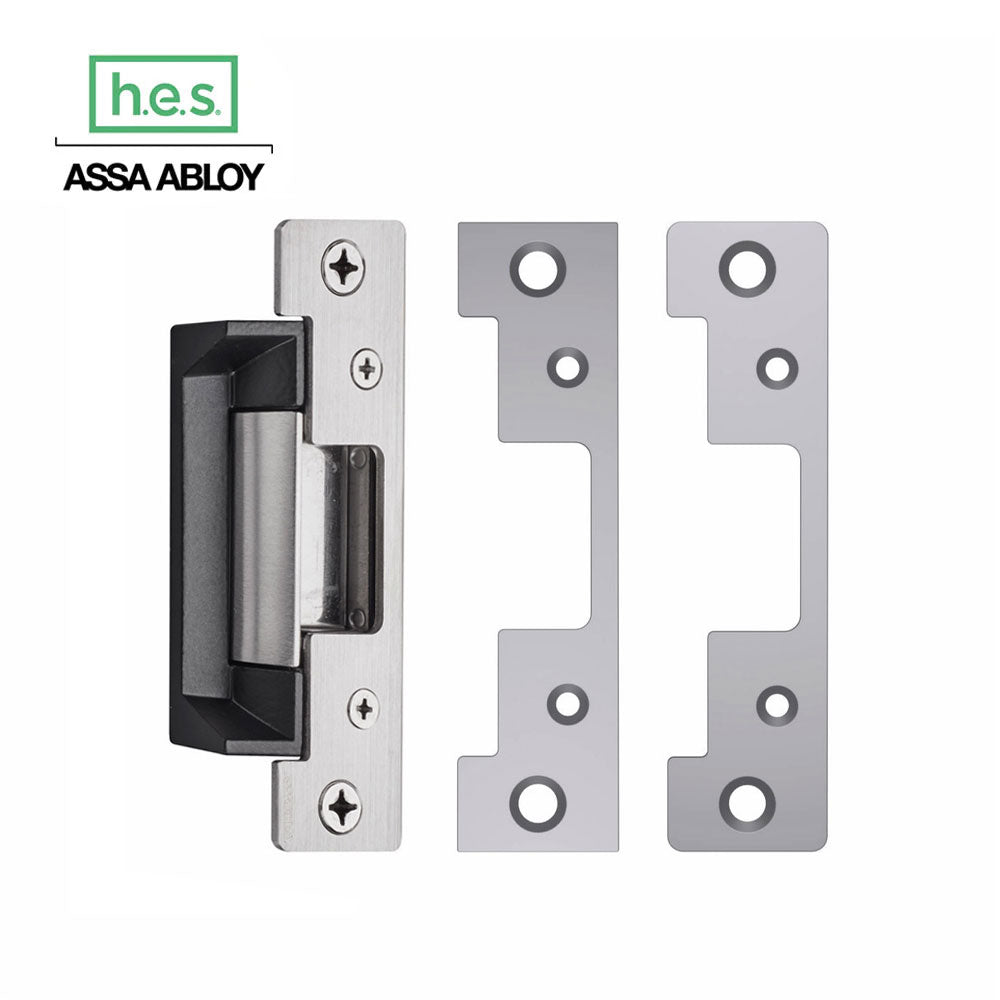

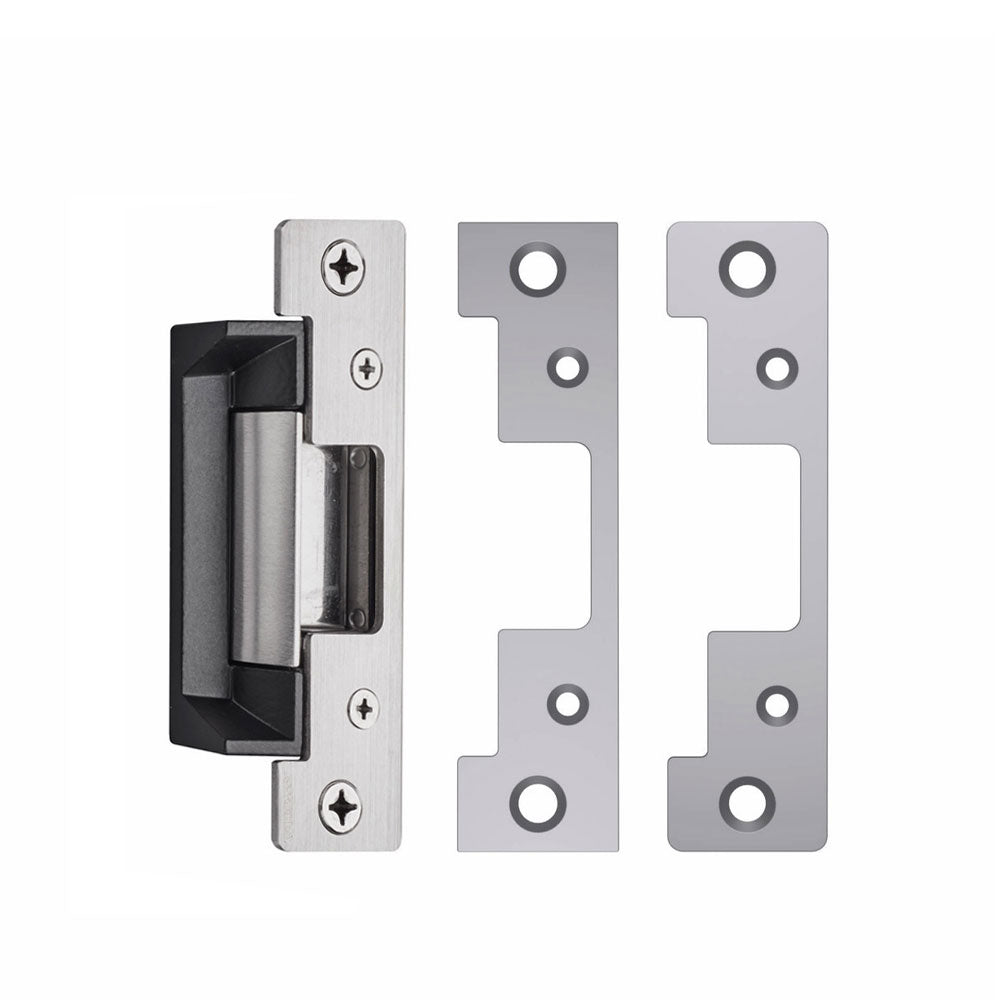

HES - 5300 Series - Electric Strike Body with 501 and 501A Faceplates - Grade 1 - Operating Voltage 12/24 VDC - Satin Stainless Steel

HES - 5300 Series - Electric Strike Body with 501 and 501A Faceplates - Grade 1 - Operating Voltage 12/24 VDC - Satin Stainless Steel

$266.35 USD
$332.94 USD $266.35 USD
Sale Sold out
Monitoring Option

HES - 5300 Series - Electric Strike Body with 501 and 501A Faceplates - Grade 1 - Operating Voltage 12/24 VDC - Satin Stainless Steel

The 5300 Series - Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8 Inch throw.

Features:
  • Tamper resistant.
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 1,000,000 cycles.
  • Field selectable fail secure/ fail safe.
  • Non-handed.
  • Internally mounted solenoid.
  • Accommodates 1/2 Inch - 5/8 Inch latchbolt (5/8 Inch with 1/8 Inch door gap)
  • Strike body depth 1-1/16 Inch..
  • Plug-in connector.
  • Trim enhancer included.
  • Dual voltage 12 or 24 VDC/VAC.
Product Specifications:
Manufacturer HES
Grade Grade 1
Installation Commercial
Unit of Measure Each
UL Listing Type 1034 and 294
ANSI Number A156.31
Manufacturer Warranty 5 Years
Fire Rated Yes {Variable}
Burglar Rated Yes
Technical Specifications:
Function Fail Safe/Fail Secure
Operating Voltage 12/24 VDC
Amp Draw 240 mA @12V 120 mA @ 24V
For Use With Cylindrical Locks
Faceplate Size 4-7/8 Inch x 1-1/4 Inch
Fire Rated Yes
Holding Force 1500 lbs.
Switch Type Latchbolt Monitor
Frame Application Metal or Wood
Product Type Electric Strikes
