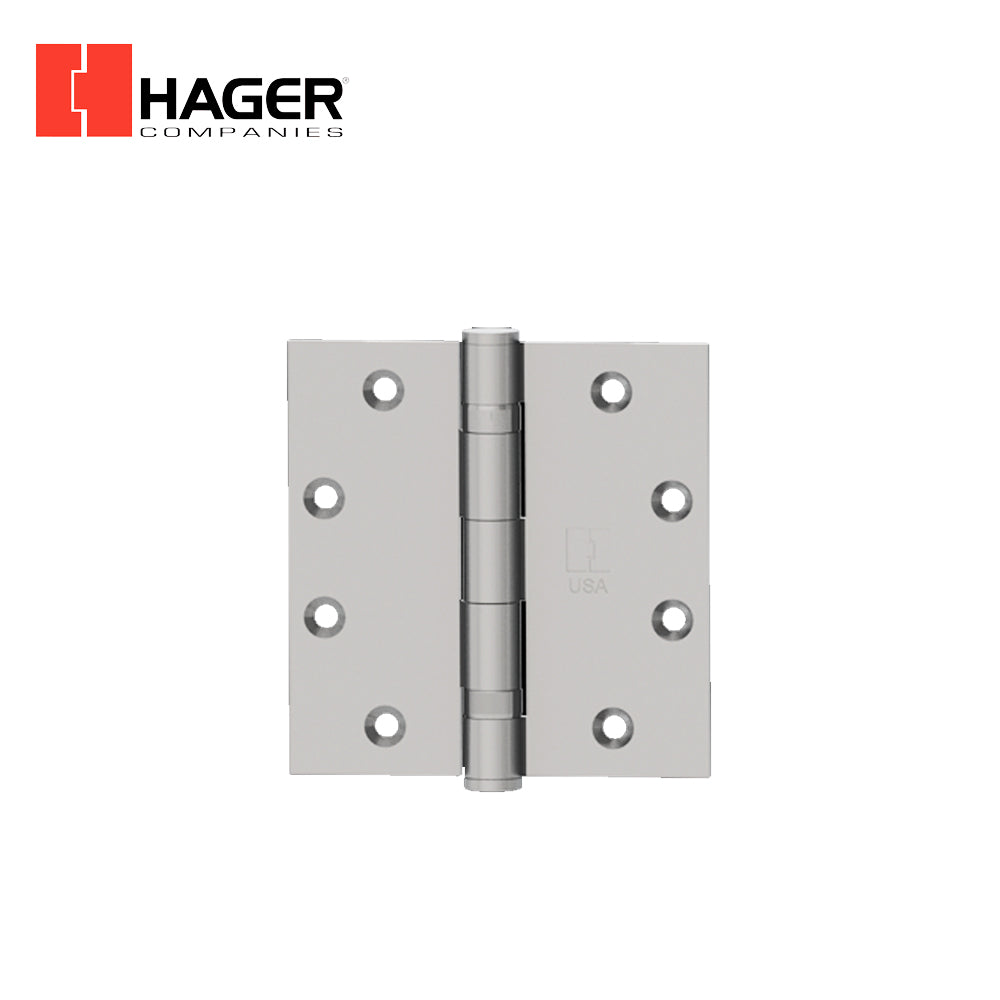

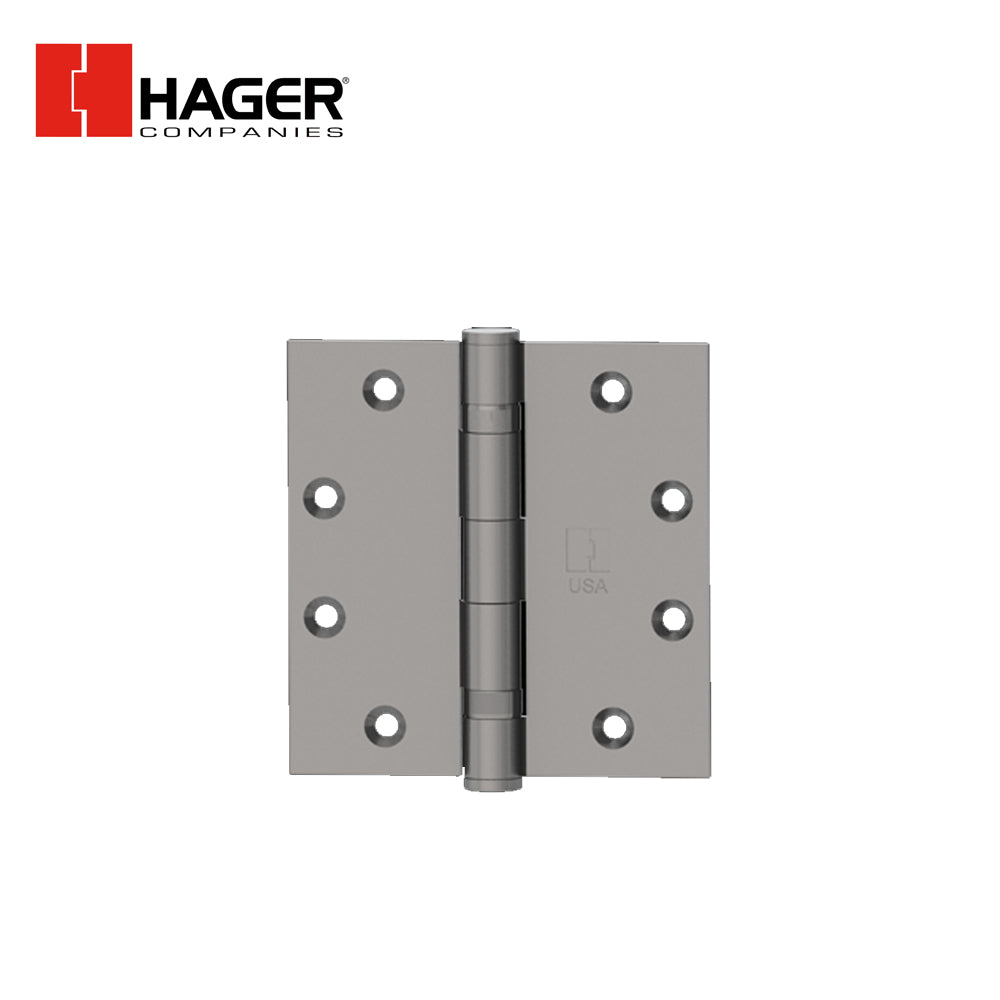

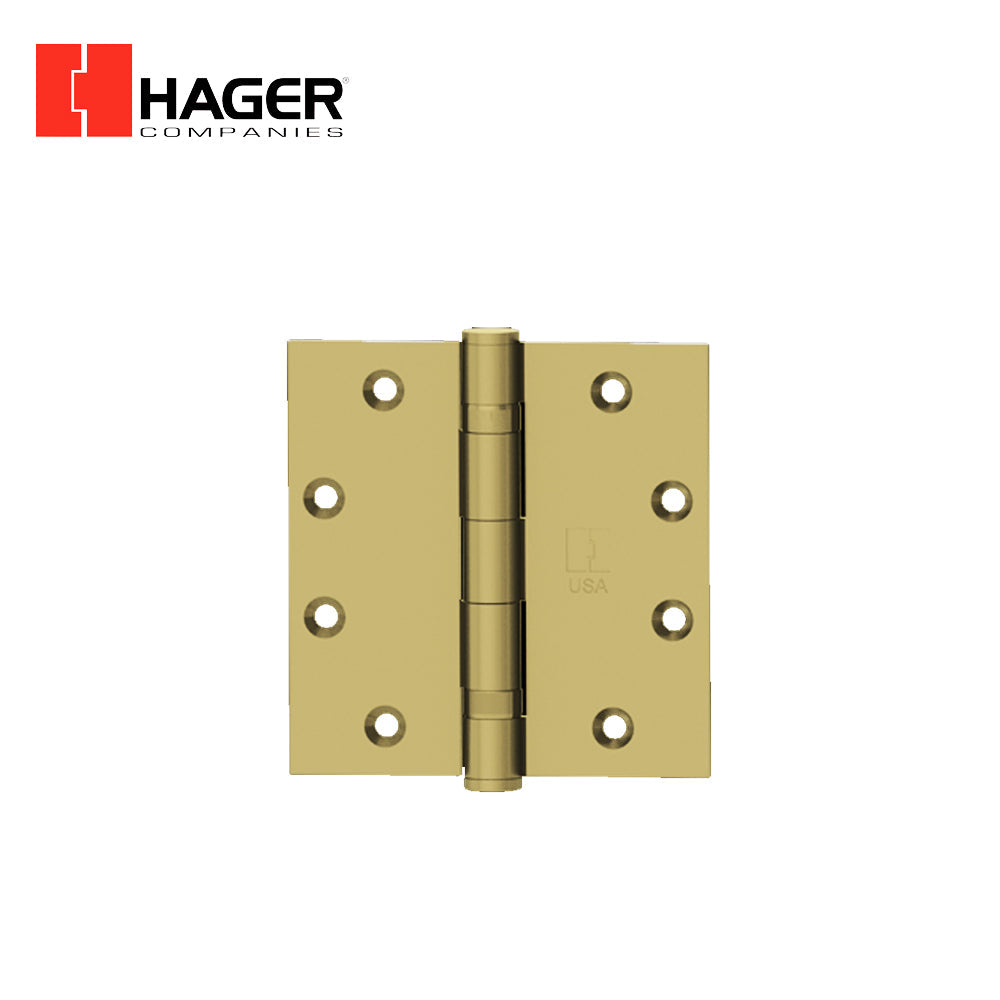

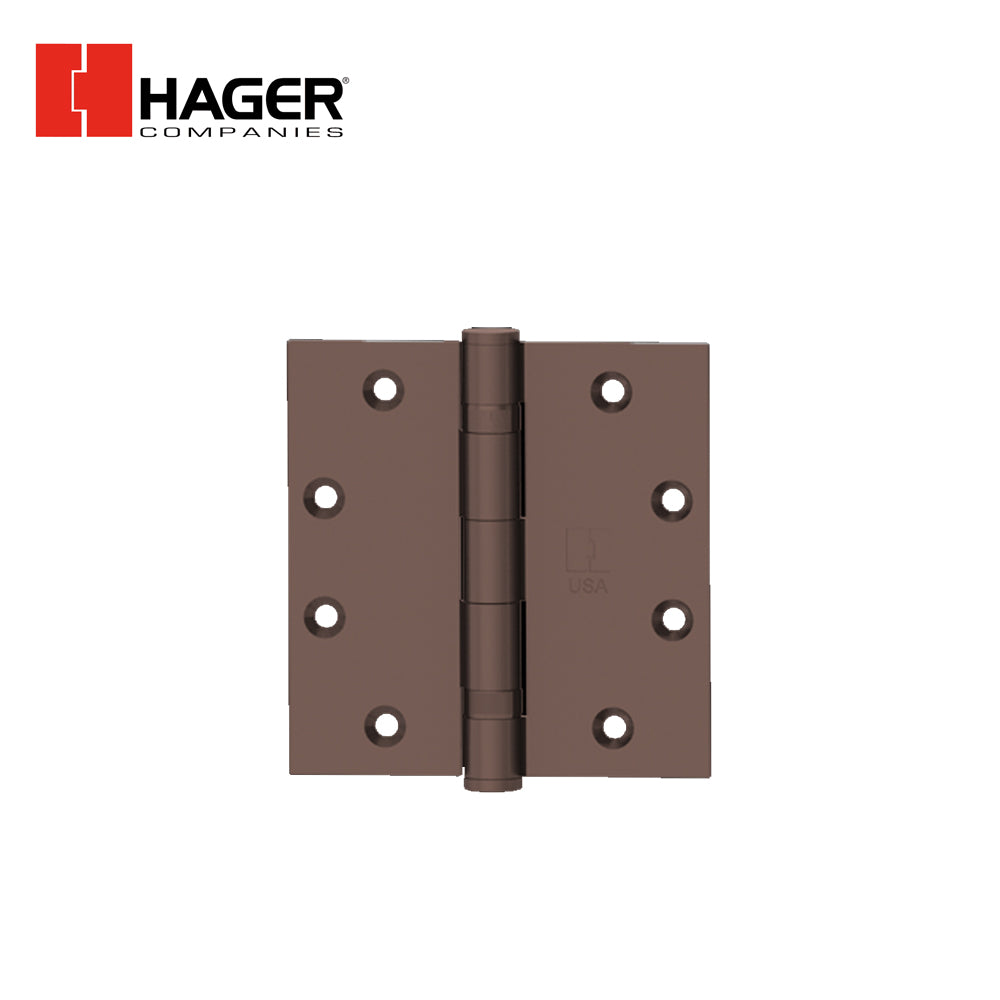

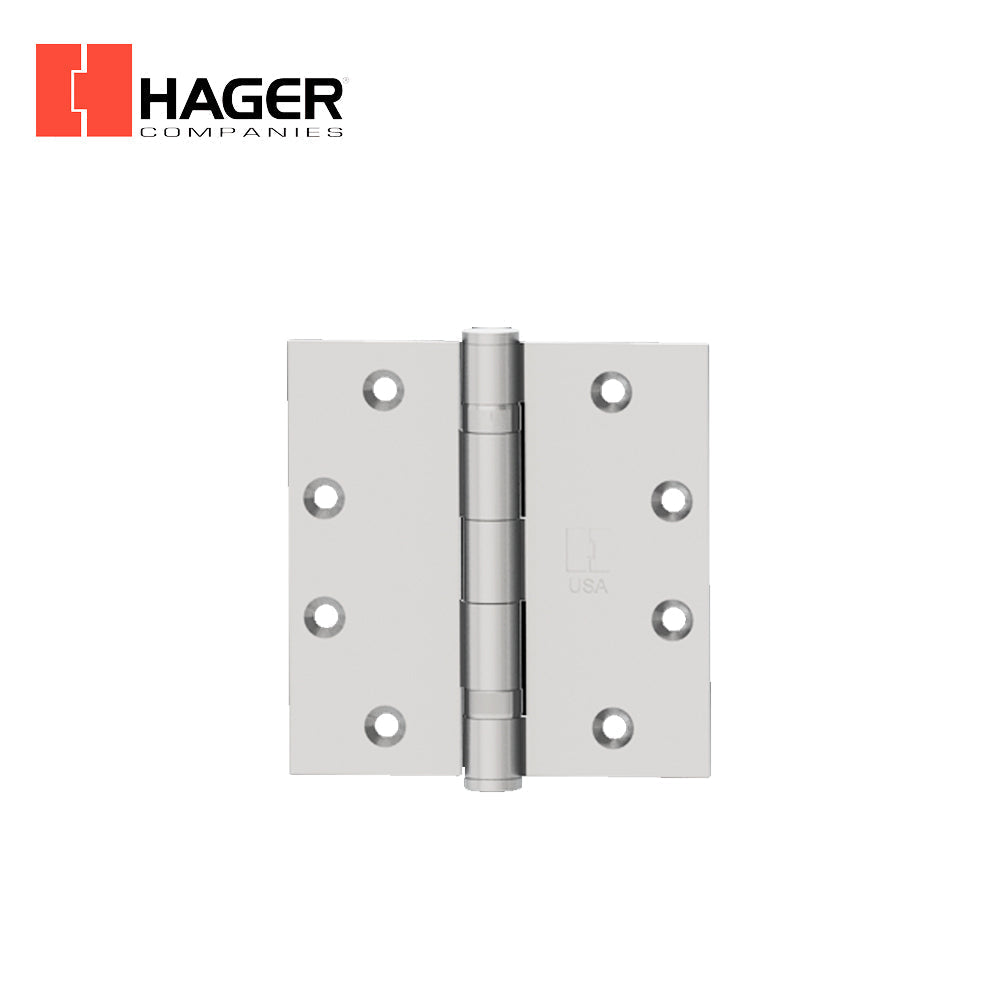

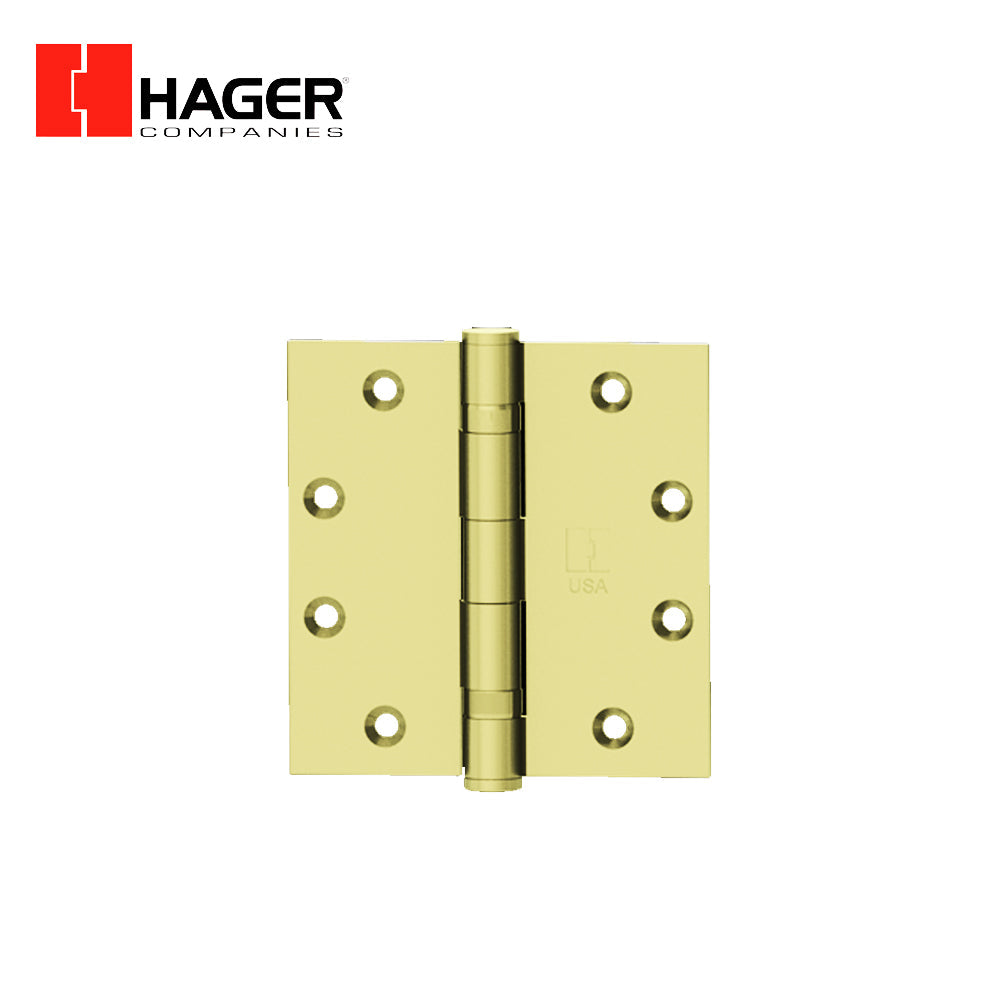

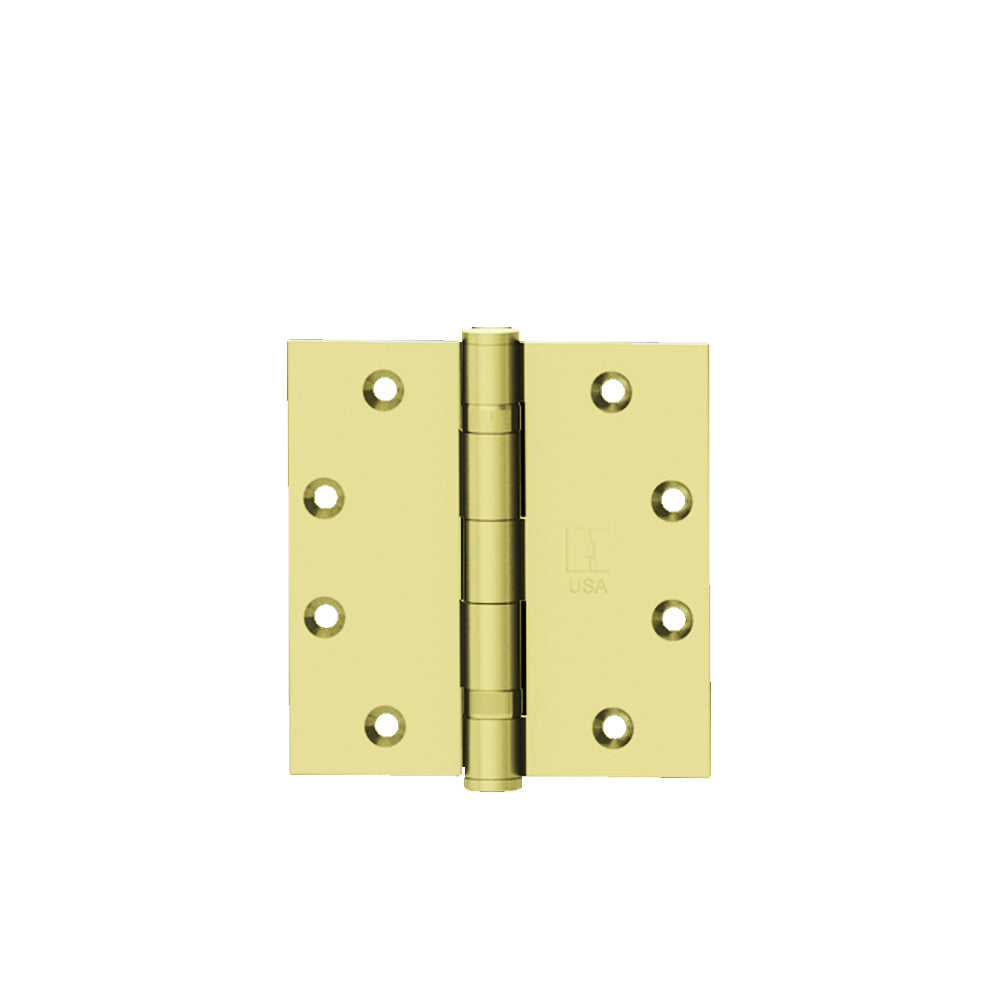

HAGER - BB1199 - Full Mortise Ball Bearing Hinge - 5 Knuckle

HAGER - BB1199 - Full Mortise Ball Bearing Hinge - 5 Knuckle

Product Specification:

Pin Type: Removable

Weight: Heavy Weight

Product Type: Hinges

Certifications: ANSI A2111 (Brass), ANSI A5111 (Stainless Steel);

Finishes: US3, US4, US5, US9, US10, US15, US15A, US19, US26, US26D;

Electric Modifications: EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect;

Features: Four ball bearings. Non-rising removable pin with tip and plug;

Knuckles: 5;

Fire Rating: Stainless steel model complies with NFPA80 requirements for use on fire rated door assemblies;

Material: Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin;

Notes: Furnished with fastener hole locations that conform to standards approved by ANSI A156.7;

Options:

• NRP (Non-removable pin);
• Stamped with UL logo when ordered for export.

Product Description: Full Mortise, Ball Bearing, Heavy Weight.

Limited Warranty: Lifetime
