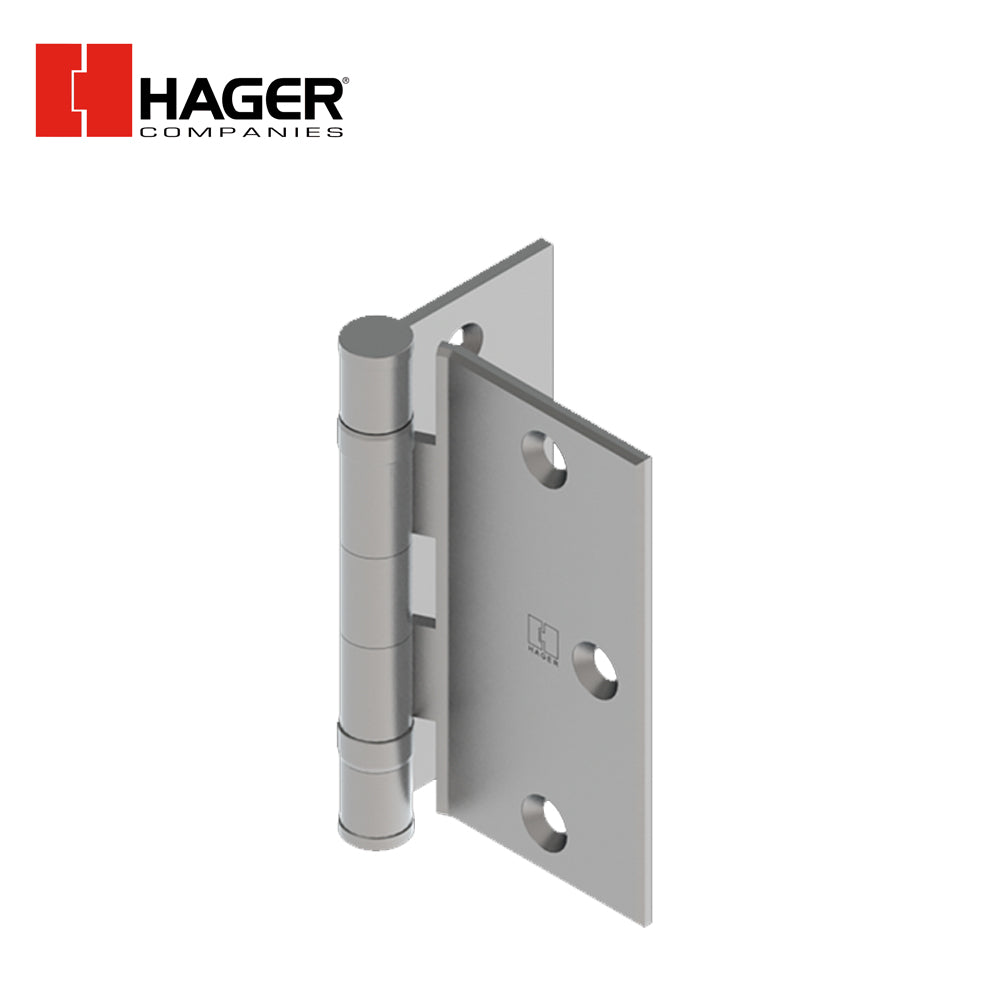

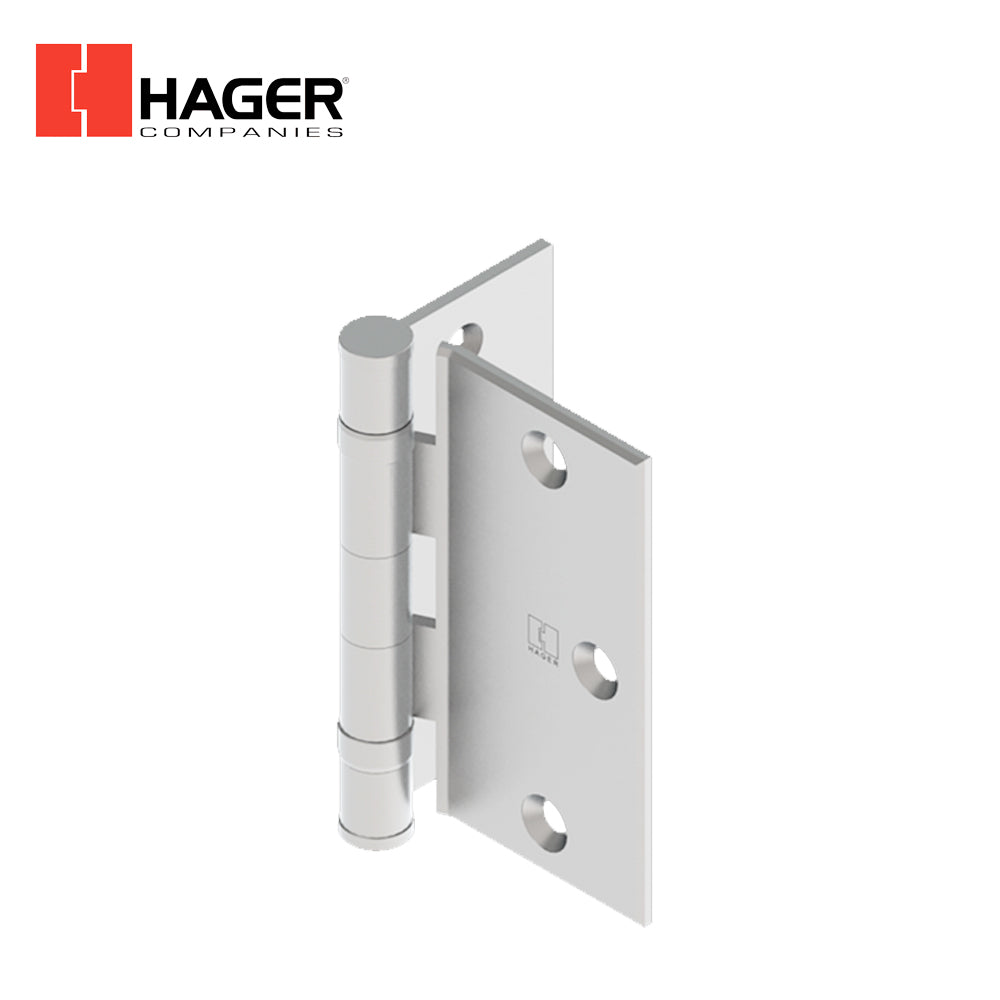

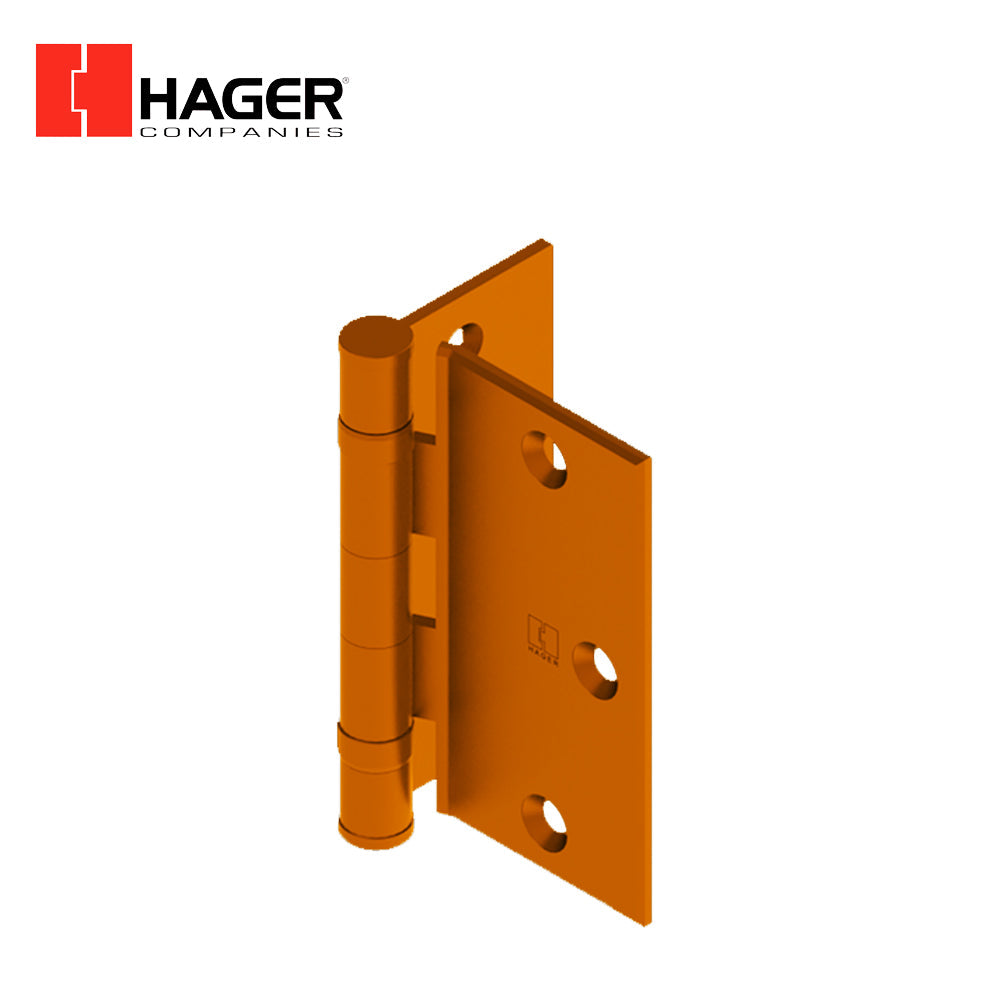

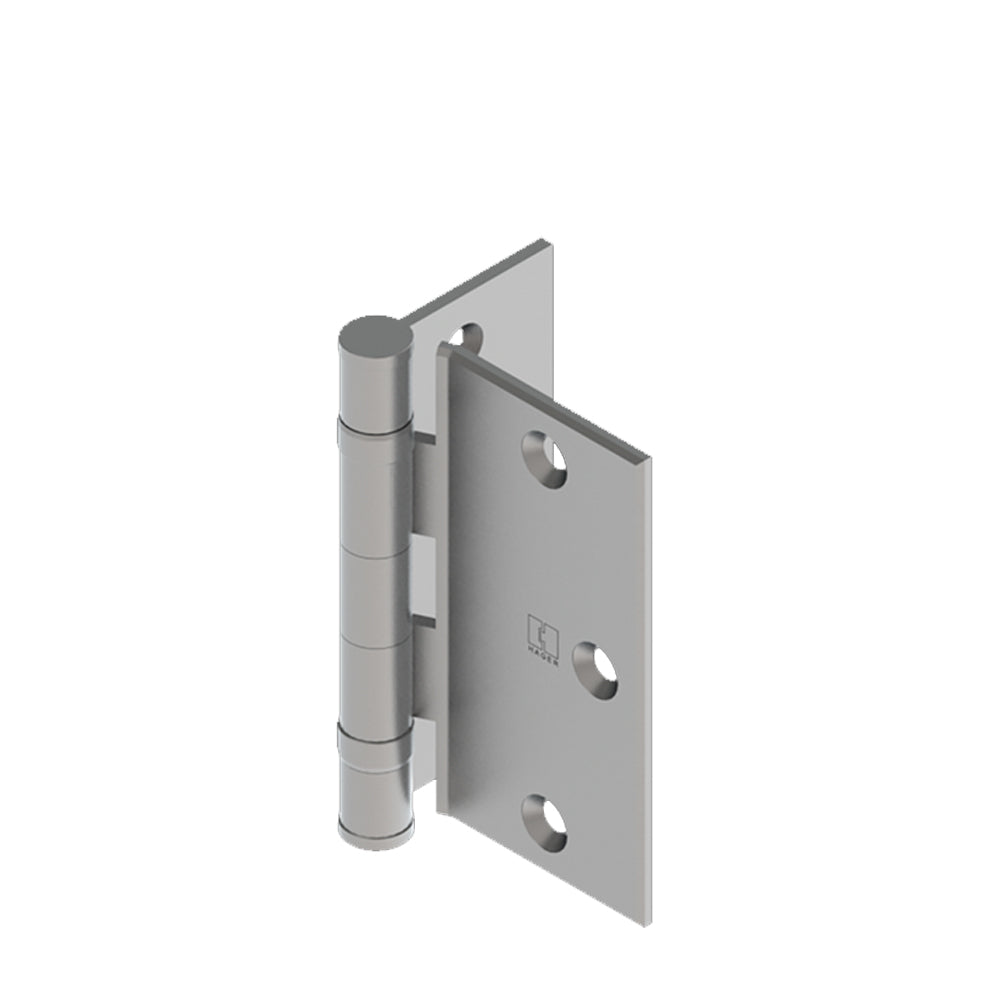

HAGER - BB1173 - Half Surface Ball Bearing Hinge - 5 Knuckle

HAGER - BB1173 - Half Surface Ball Bearing Hinge - 5 Knuckle

Applications: For use on regular weight hollow metal or wood composite doors with hollow metal frames requiring medium frequency service.

Certifications: ANSI A8412;

Finishes: USP, US10, US10A, US10B, US26D;

Fastener Size - Machine: Door Leaf: 1/2" x 12-20" FH.

Knuckles: 5;

Features: Two ball bearings. Non-rising removable pin with button tip and plug;

Notes:

• Beveled surface leaf
• Reversible
• 4" is for 1-3/8" door. 4" for 1-3/4" door is available by consulting the HAGER Tech Department
• Thru-bolts and grommets for wood door applications

Material: Steel with Steel Pin;

Product Description: Half Surface, 5-Knuckle, Ball Bearing, Standard Weight
