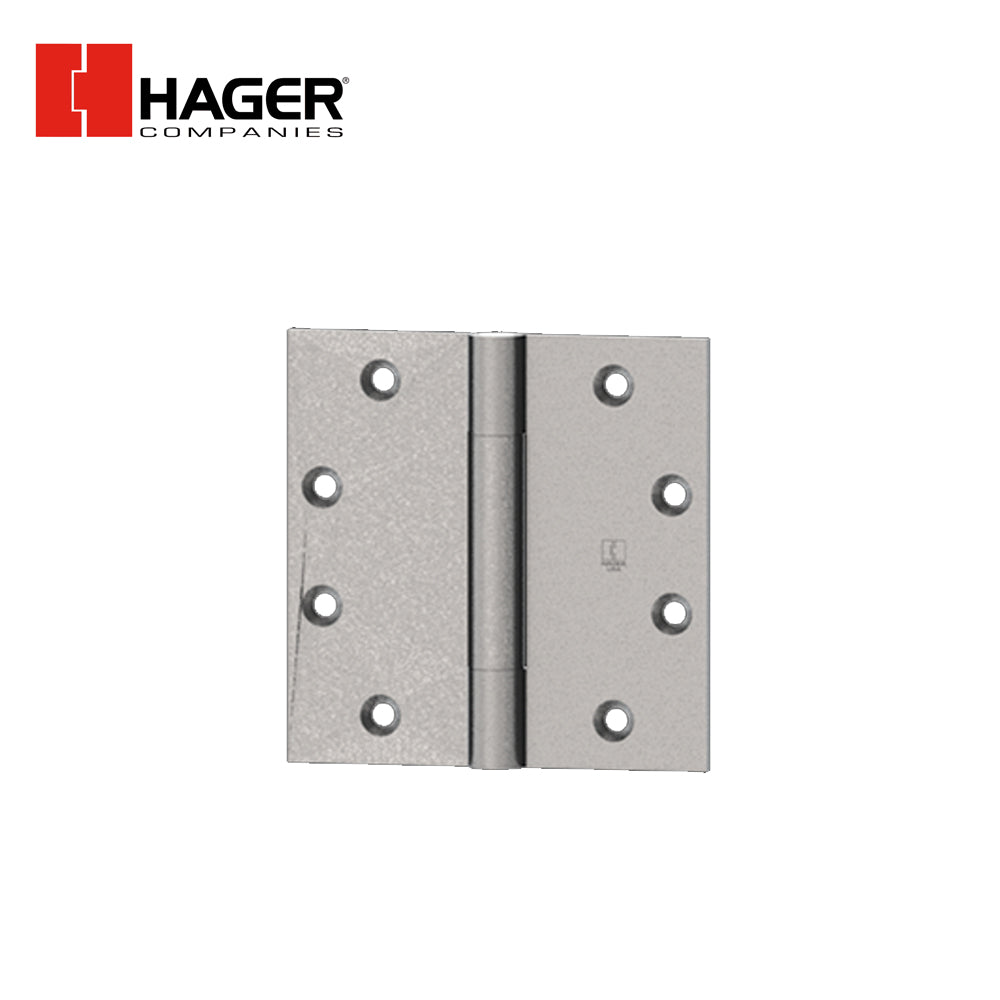

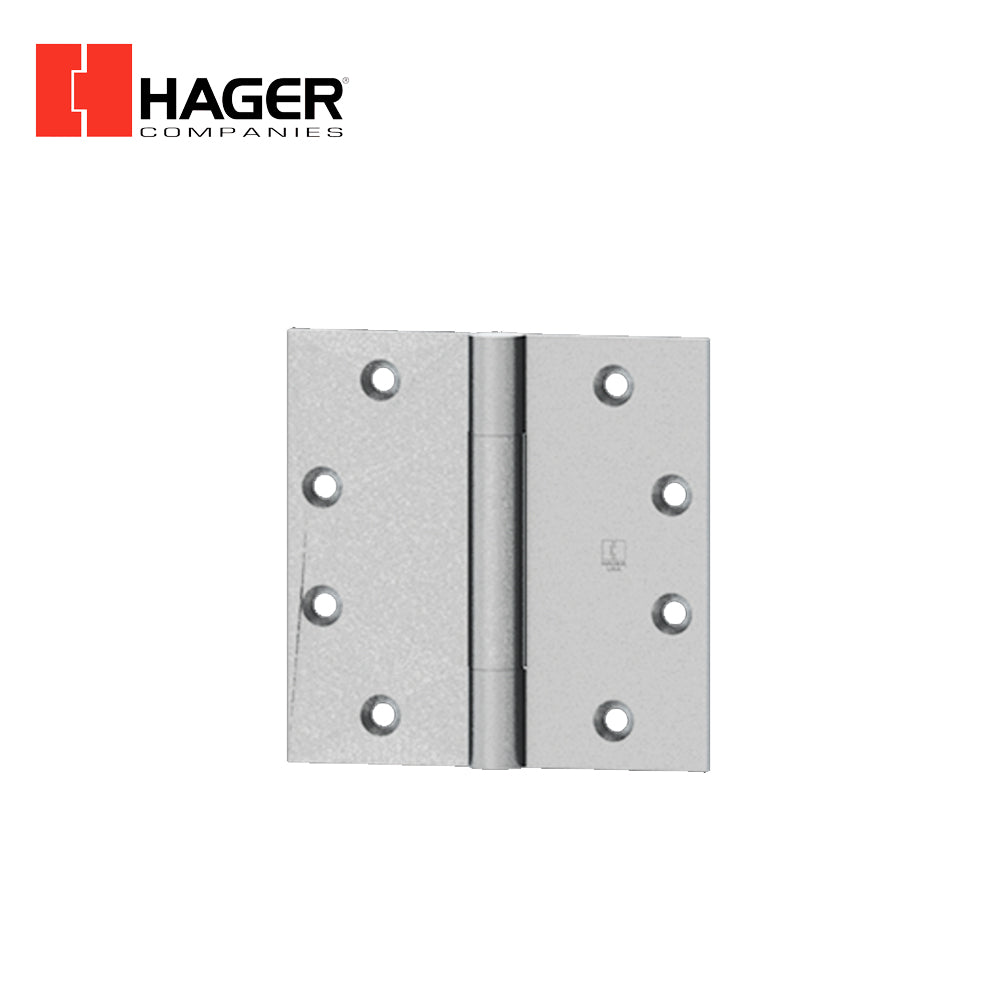

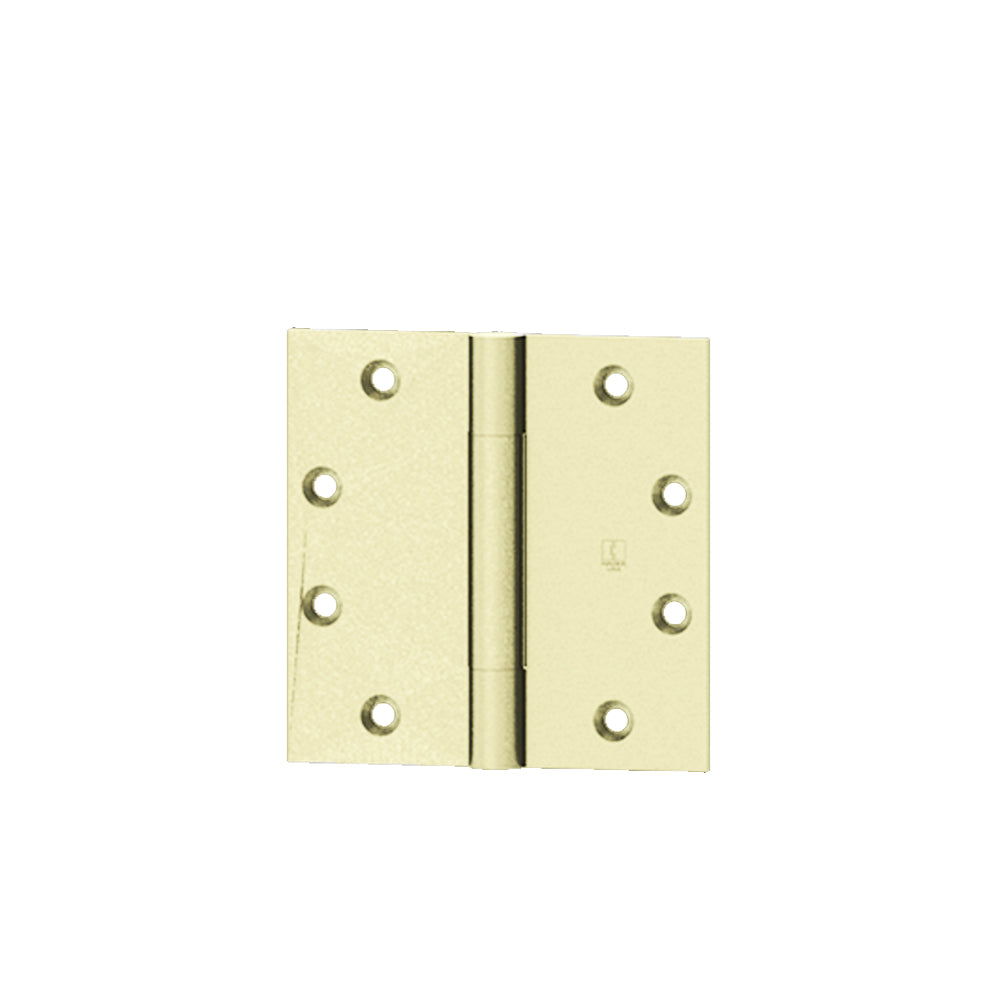

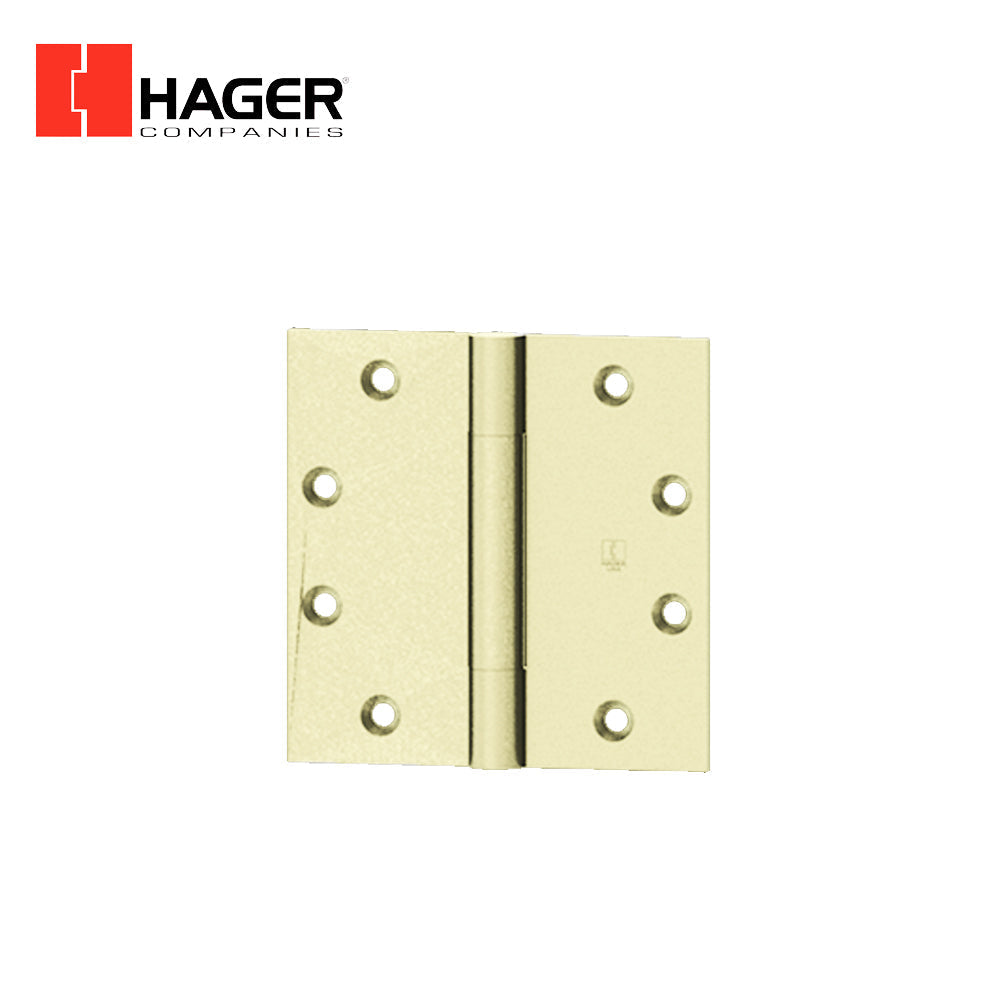

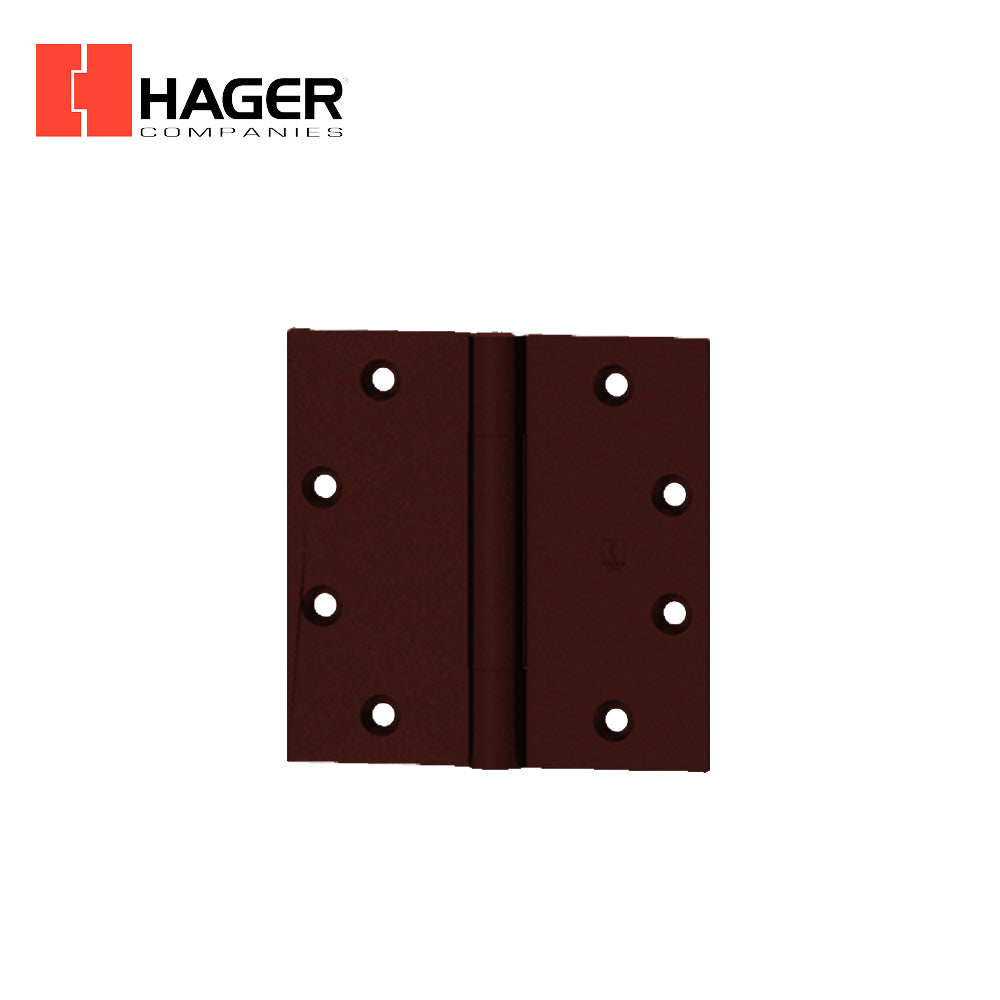

HAGER - AB800 - Full Mortise Concealed Anti-Friction Bearing Hinge - 3 Knuckle

HAGER - AB800 - Full Mortise Concealed Anti-Friction Bearing Hinge - 3 Knuckle

Product Specification:

• Applications: For use with medium weight doors or doors requiring low frequency service;
• Certifications: ANSI A2111 (Brass), ANSI A5111 (Stainless Steel);
• Finishes: US3, US4, US5, US9, US10, US15, US15A, US19, US26, US26D;
• Electric Modifications: EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
• Features: Non-rising removable pin with flush pin and plug.
• Knuckles: 3
• Material: Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin.
• Options: Available with SecureCoat Lifetime finish. (Specify US3SC when ordering).
• Product Description: Full Mortise, Standard Weight, Concealed Anti-Friction Bearing.
