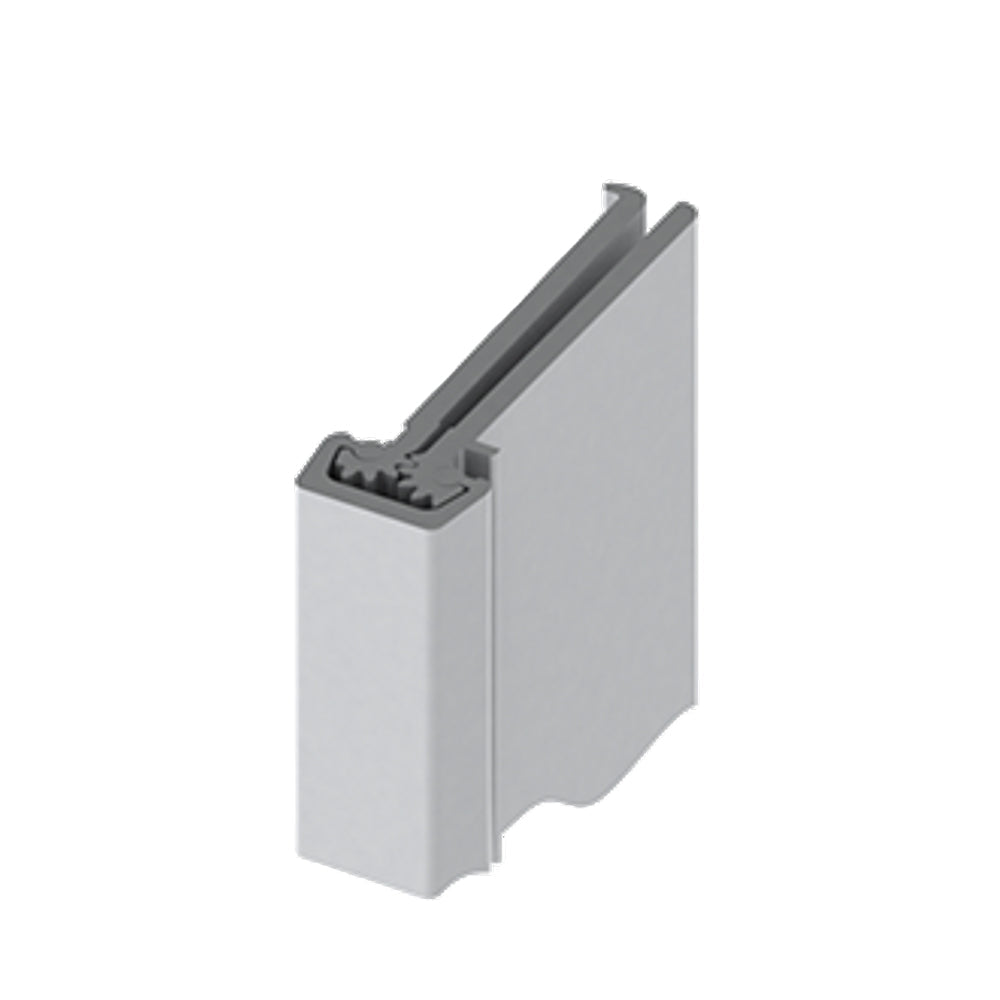

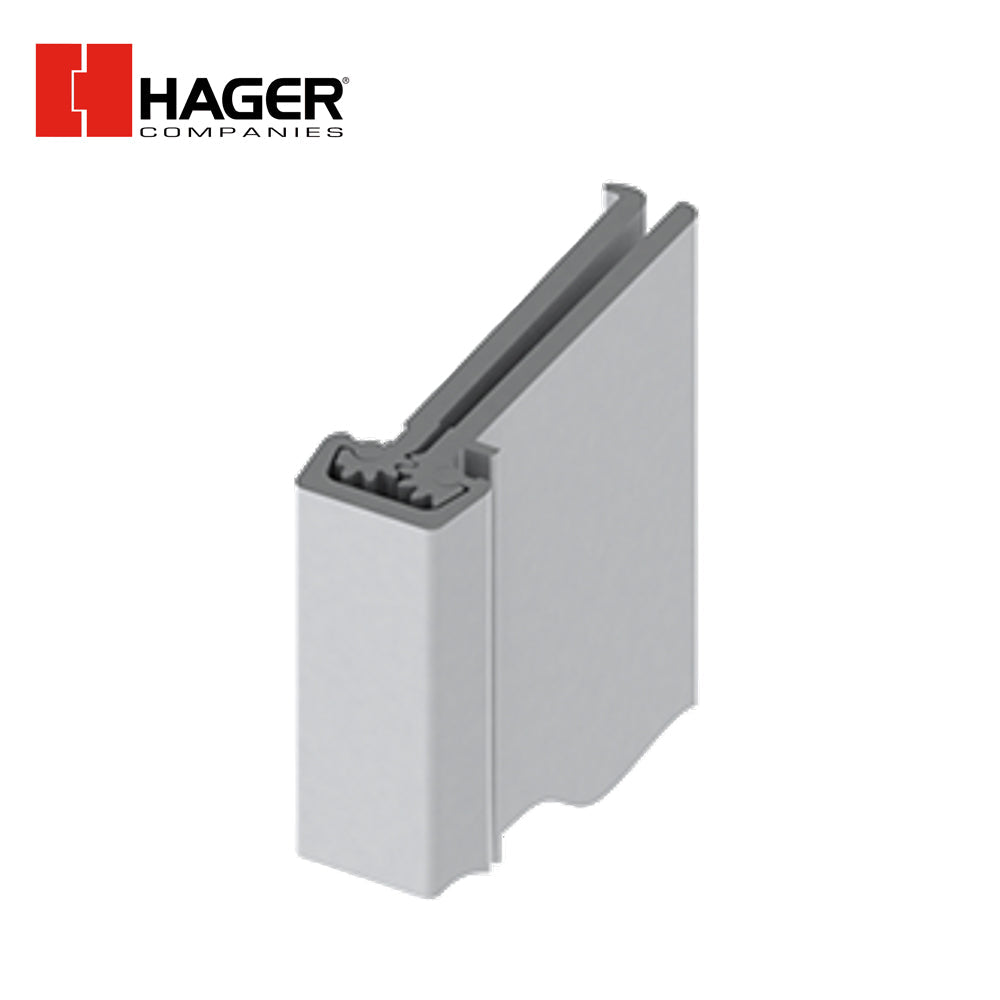

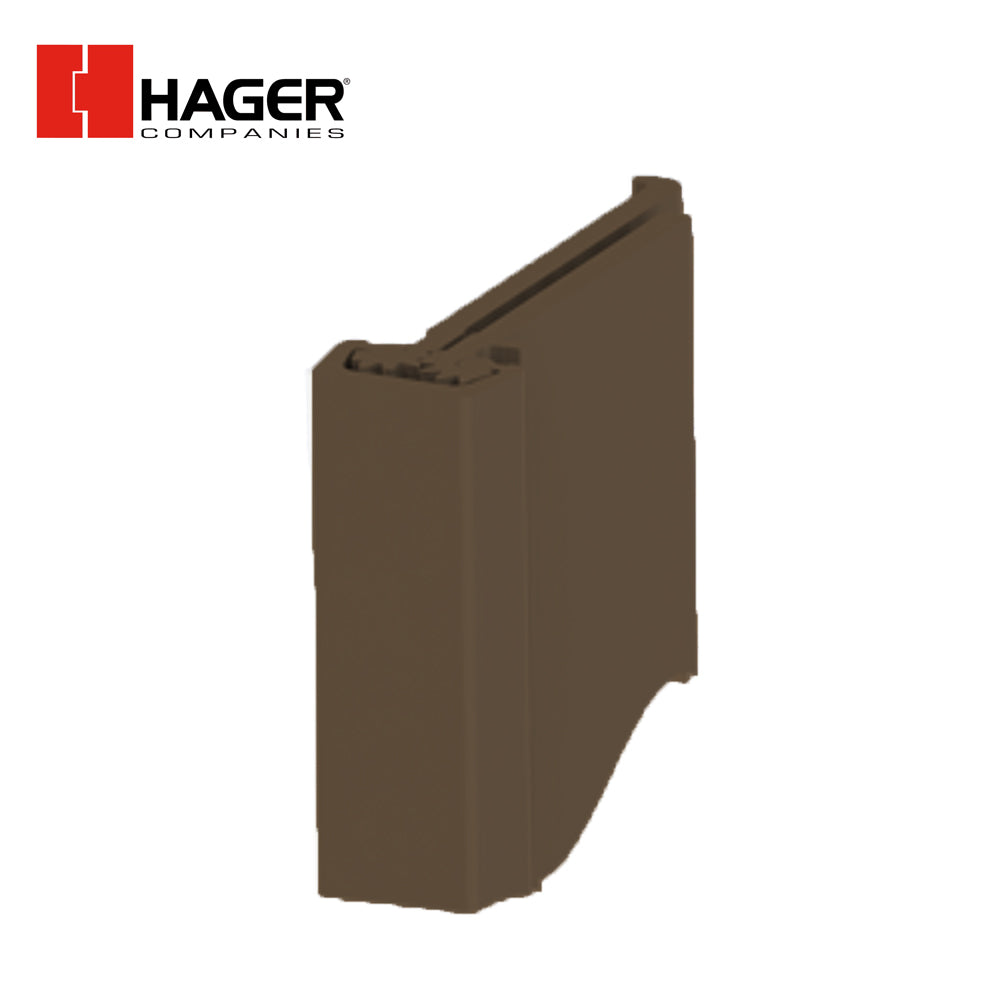

HAGER - 780-224HD - Heavy Duty Concealed Leaf Continuous Geared Hinge with Electric Power Transfer (EPT)

HAGER - 780-224HD - Heavy Duty Concealed Leaf Continuous Geared Hinge with Electric Power Transfer (EPT)

HAGER hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.

• ANSI/BHMA A156.26 C
• Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
• Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.HAGERco.com. HAGER warrants US10B finish only over brass or bronze base material. If steel base material is necessary, HAGER recommends US10A lacquer finish.

Product Specification:

Applications:

• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify "LL")
• Door edge protection lip
• Frame leaf alignment rib for proper hinge and door location
• 3/32" (2 mm) inset

Clearance

• 5/16" (8 mm) hinge side
• Plus standard lockside clearance

Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Electric Modifications:

• Power Transfer Preparation (EPT 2) or (EPT 10)
• Exposed Electric Contacts (E)
• Exposed Electric Switches (E1S)
• Electric Through-Wire (ETW)
• Electric Monitoring (EMN)
• Electric Through-Wire and Monitoring (ETM)
• Removable Electric Through-Wire (RETW)

Fasteners:

• Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
• Optional: 1/2 Dril-Kwik® Screws, 1/2 wood Screws
• Additional Options Available upon request

Features:

• Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors. All for doors 1-3/4” (44 mm) thick.
• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (Specify “LL”)
• Door edge protection lip
• Frame leaf alignment rib for proper hinge and door location
• 3/32” (2 mm) inset hinge and door location

Finishes: DKB, DBZ, BLK

Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs)Frame ReinforcementNone required to 200 lbs. Heavier weight use 16-gauge channel.

Length: 79", 83", 85", 95", 119"

Length Options: Standard and Custom

Material: Aluminum 6063-T6

Notes

EPD: Roton Continuous Hinges Environmental Product Declaration

Options

• Hospital Tip
• TIPIT® (see Roton accessories)

Product Description

• Concealed Leaf
• 1-3/4" Doors
• Case Pack w/ Drill Quick fasteners
• Must Order Case Quantity
