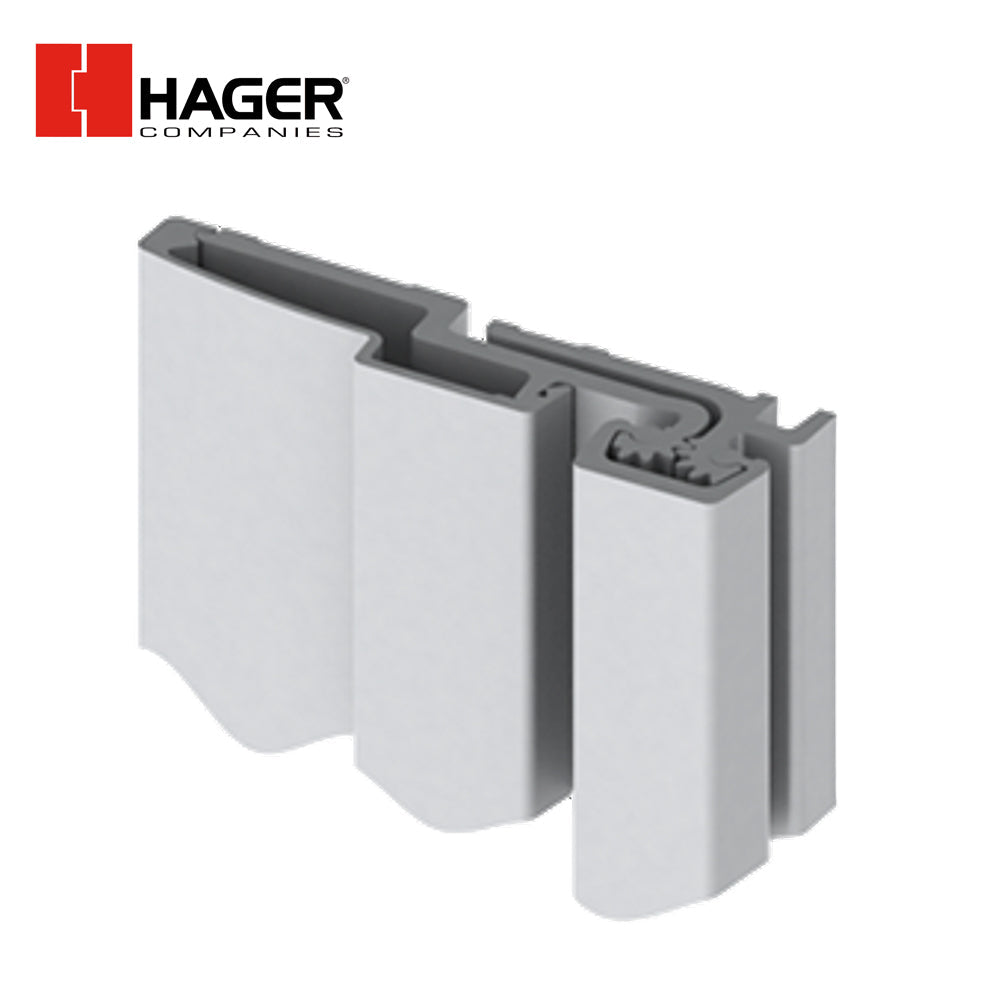

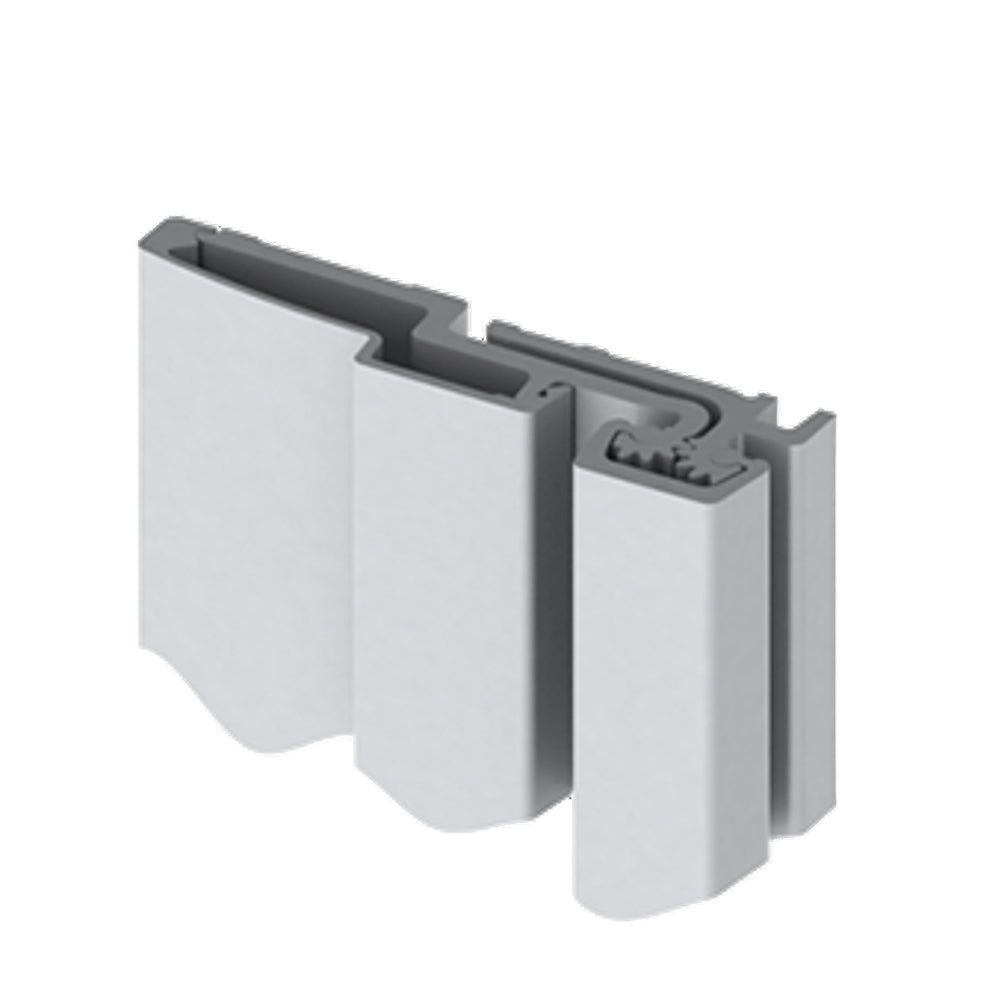

HAGER - 780-210 - Full Surface Contonous Hinges

HAGER - 780-210 - Full Surface Contonous Hinges

Product Specifications:

Applications:

• Can be used with any door and frame material.
• Security moldings.
• 1/32" (1 mm) inset.

Clearance:

• 1/32" (1 mm) minimum recommended for hinge side.
• Plus standard lockside clearance.
• 1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance

Door Reinforcement: None required.

Fasteners:

• Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post);
• Standard: Dril-Kwik® – #12-24 X 11/16" Pan Head Screws;
• Additional Options Available upon request.

Features:

• Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors;
• Can be used with any door and frame material;
• Security moldings.
• 1/32” (1 mm) inset.

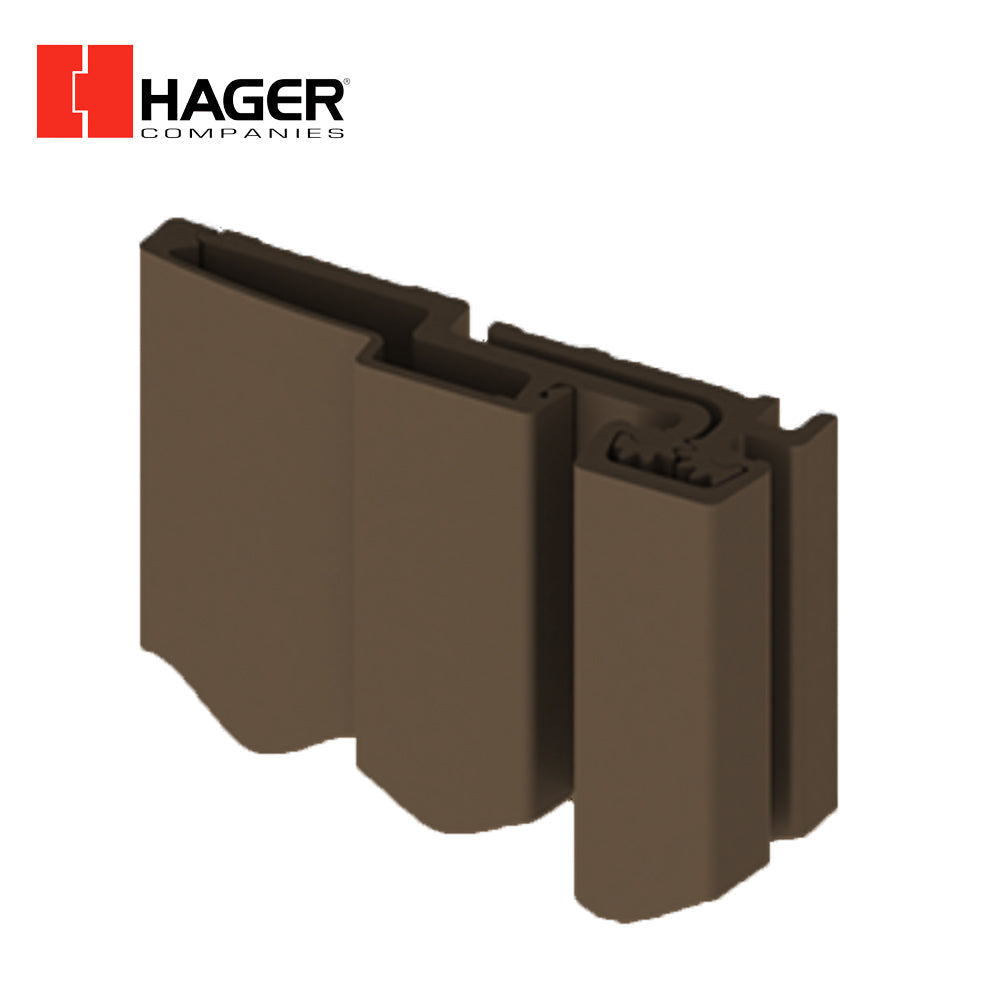

Finishes: CLR, DBZ, BLK;

Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);

Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Length: 79", 83", 95"

Material: Aluminum 6063-T6

Notes:

• Replacement Moldings
• 780-210M
• Replacement door leaf molding for 780-210 Furnished with Allen head set screw and wrench
• Shipped in standard lengths for trimming in the field
• EPD: Roton Continuous Hinges Environmental Product Declaration

Options:

• Hospital Tip
• TIPIT® (see Roton accessories)

Product Description:

• Full Surface.
• Frame Face Dimension
• Limitations
