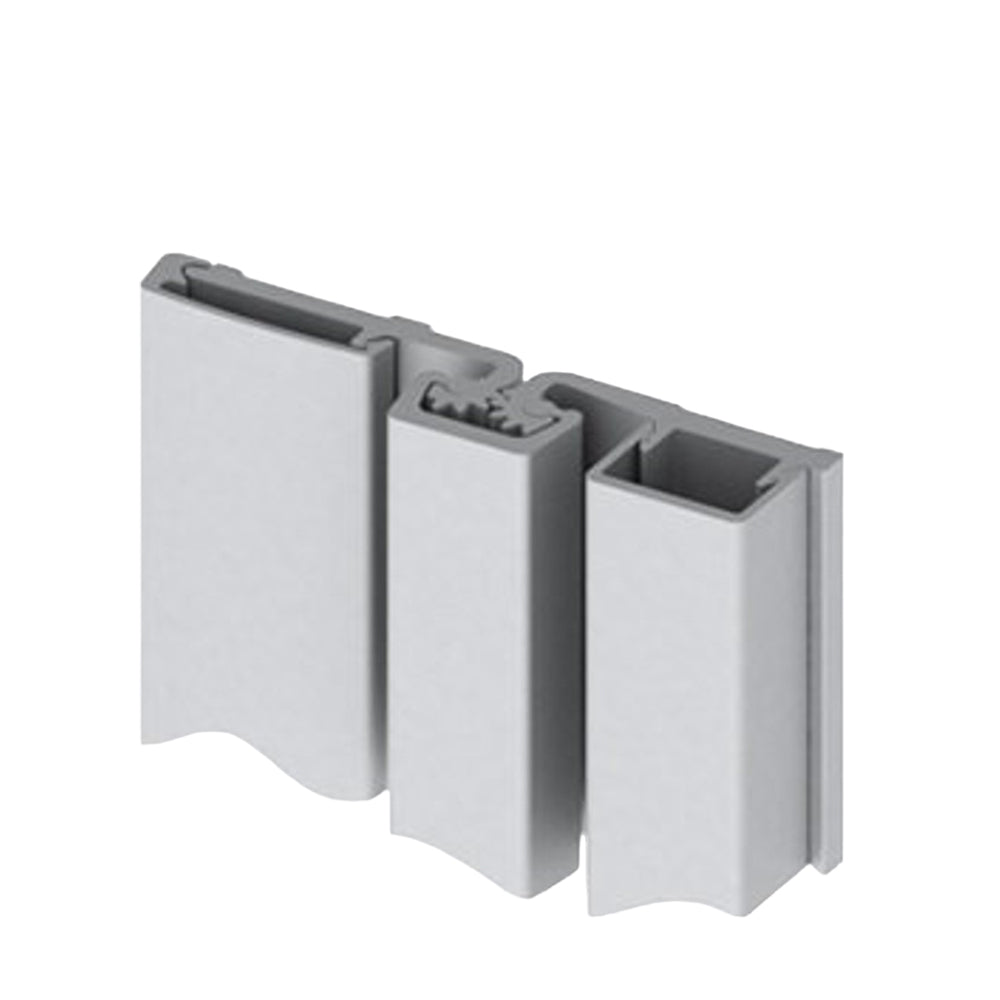

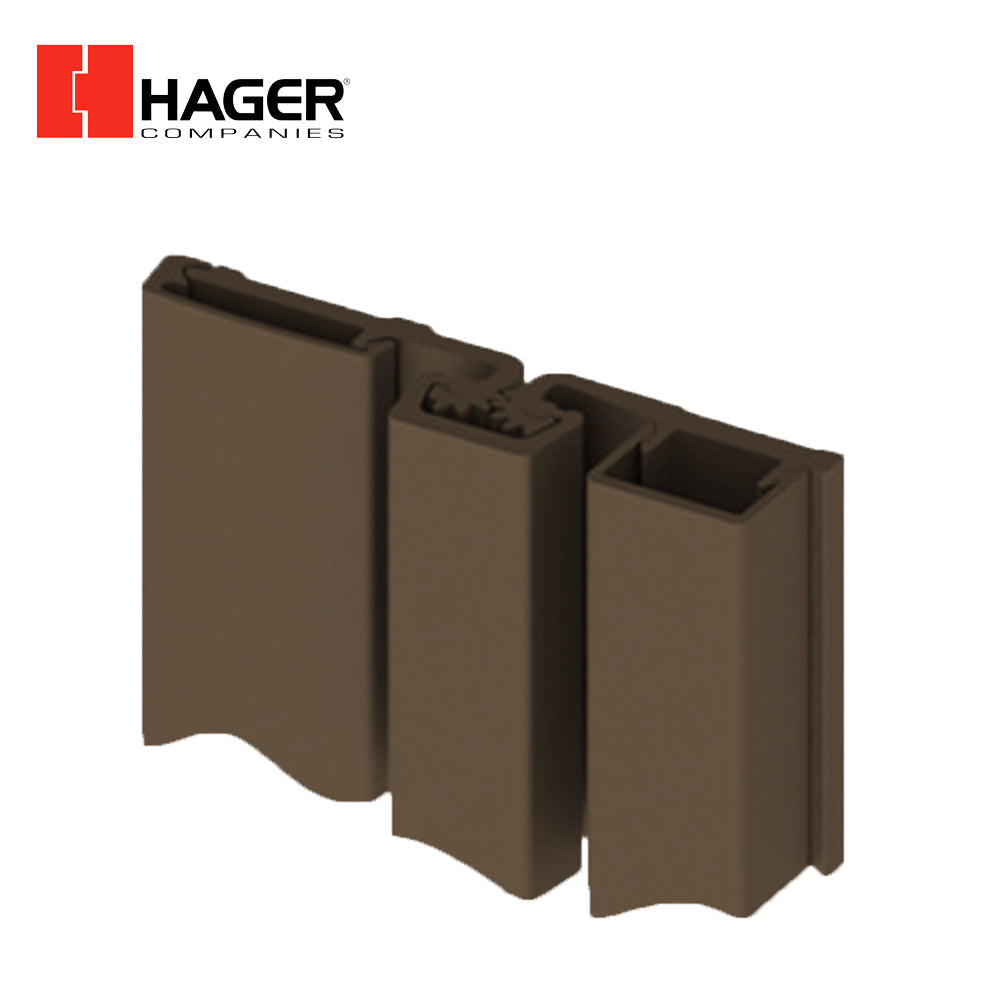

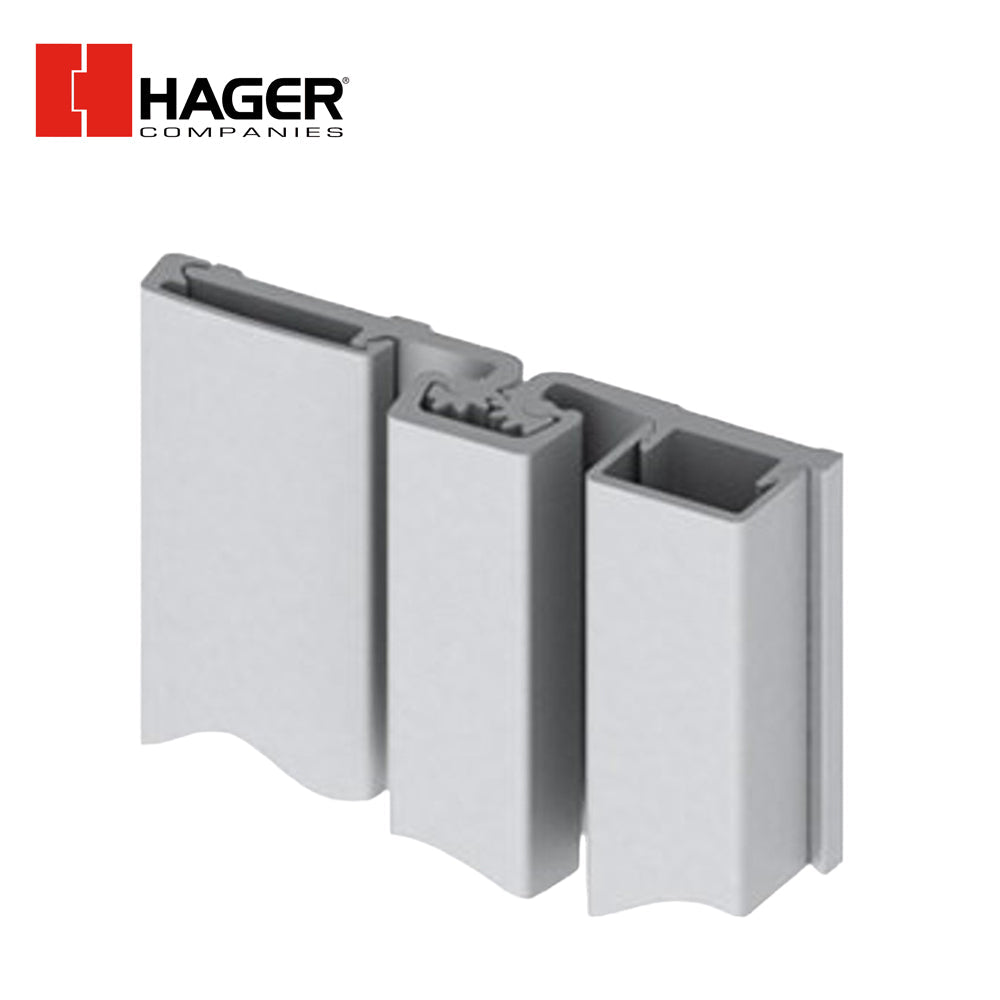

HAGER - 780-157HD - Heavy Duty Full Surface Contonous Hinges

HAGER - 780-157HD - Heavy Duty Full Surface Contonous Hinges

Product Specifications:

Applications:

• For center hung and double egress conversions;
• Security molding
• 1/16" (1.5 mm) inset.

Clearance:

• 1/32" (1 mm) minimum recommended for hinge side.
• Plus standard lockside clearance.
• Refer to Door and Frame Dimensioning in the General Information section for further details.

Electric Modifications: ETW & RETW available.

Fasteners:

• Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post)
• Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
• Additional Options Available upon request.

Features:

• Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors
• For center hung and double egress conversions
• Security molding
• 1/16” (1.5 mm) inset.

Finishes: CLR, DBZ, BLK

Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);

Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Length: 79", 83", 95"

Material: Aluminum 6063-T6

Notes:

• EPD: Roton Continuous Hinges Environmental Product Declaration

Options: Hospital Tip

Product Description:

• Full Surface
• Frame Face Dimension
• Heavy Duty
• Limitations

Download:

• Installation Instructions
• Roton Electrical Modifications
