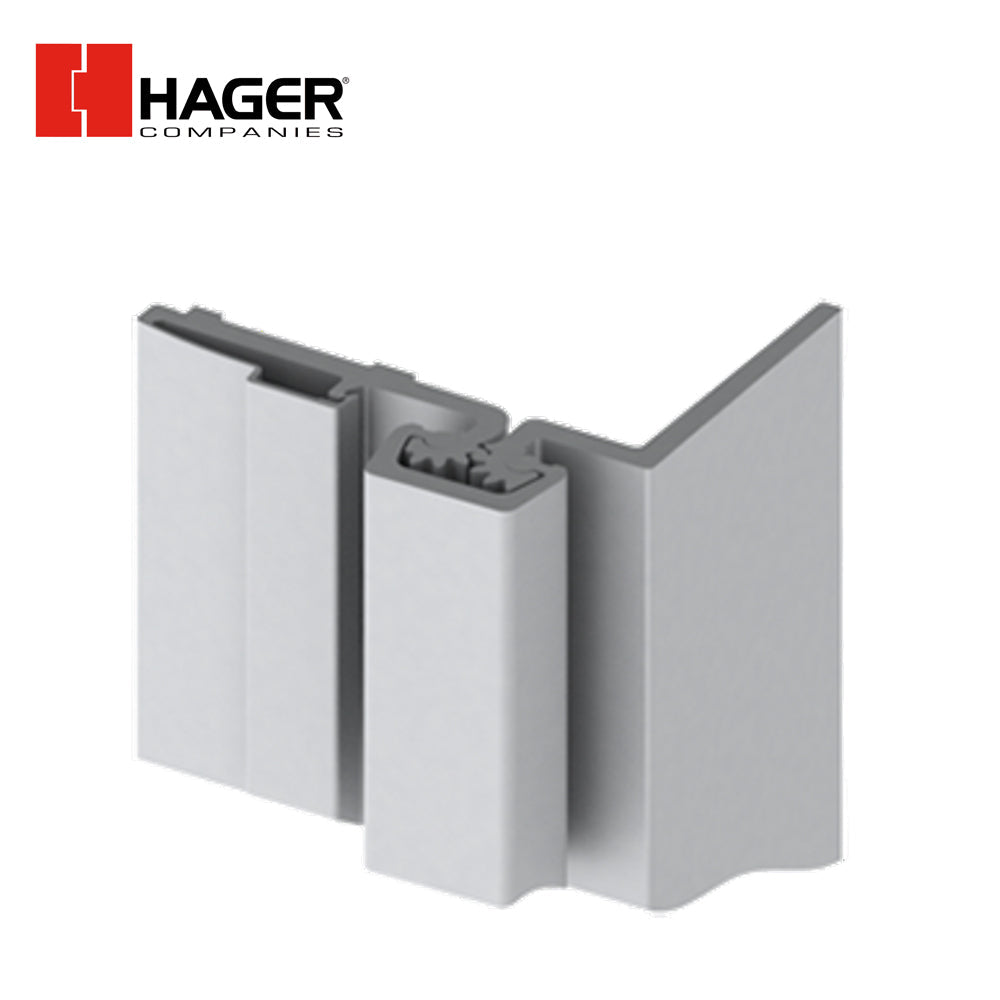

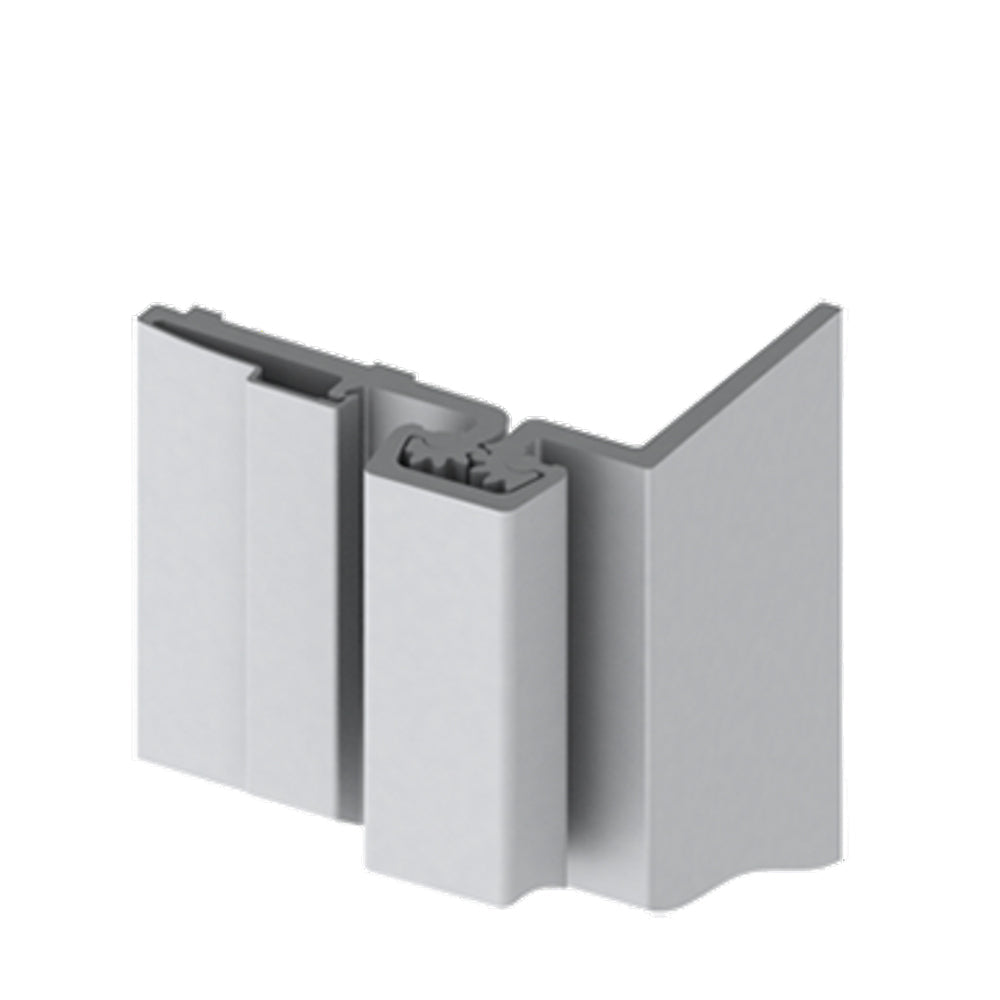

HAGER - 780-155HD - Half Surface Continuous Hinges

HAGER - 780-155HD - Half Surface Continuous Hinges

Product Specifications:

Applications:

• For center hung and double egress conversions;
• Security molding

Clearance:

• 5/32" (4 mm) minimum recommended hinge side

Electric Modifications: Power Transfer Preparation (EPT 2) or (EPT 10)

Fasteners:

• Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post)
• Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
• Additional Options Available upon request.

Features:

• Heavy duty for high frequency doors or heavy, medium frequency doors;
• For center hung and double egress conversions
• Security molding

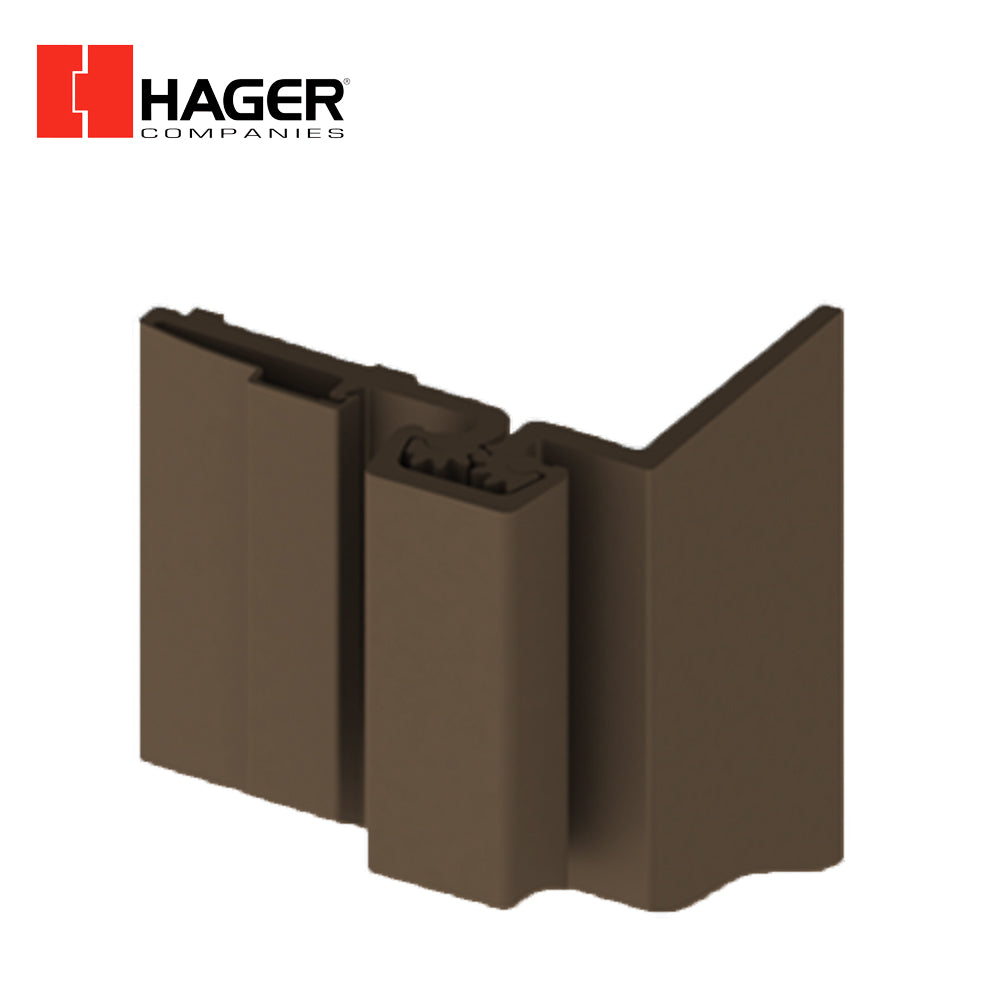

Finishes: DKB, DBZ, BLK

Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);

Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Length: 79", 83", 85", 95", 119"

Material: Aluminum 6063-T6

Notes:

• EPD: Roton Continuous Hinges Environmental Product Declaration

Options: Hospital Tip

Product Description:

• Half Surface
• Heavy Duty
• Center Hung and Egress Conversions

Download:

• Installation Instructions
• Roton Electrical Modifications
