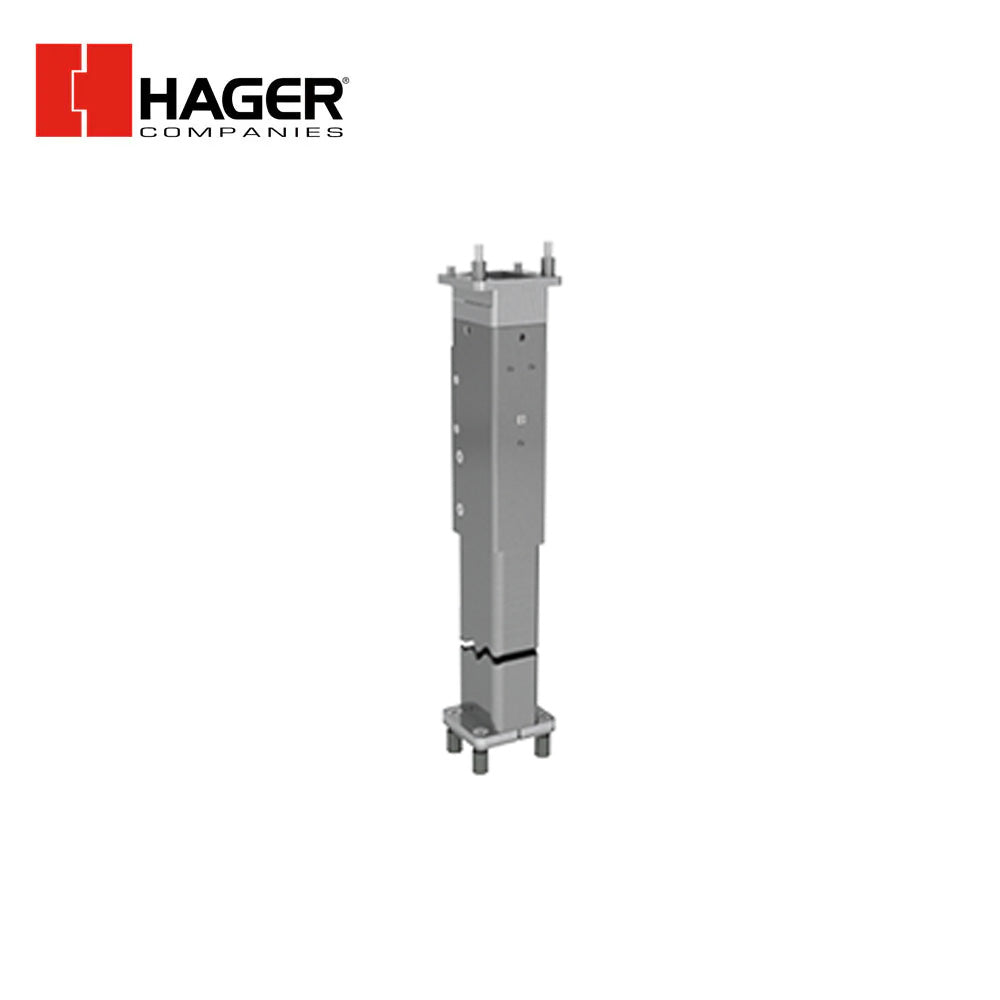

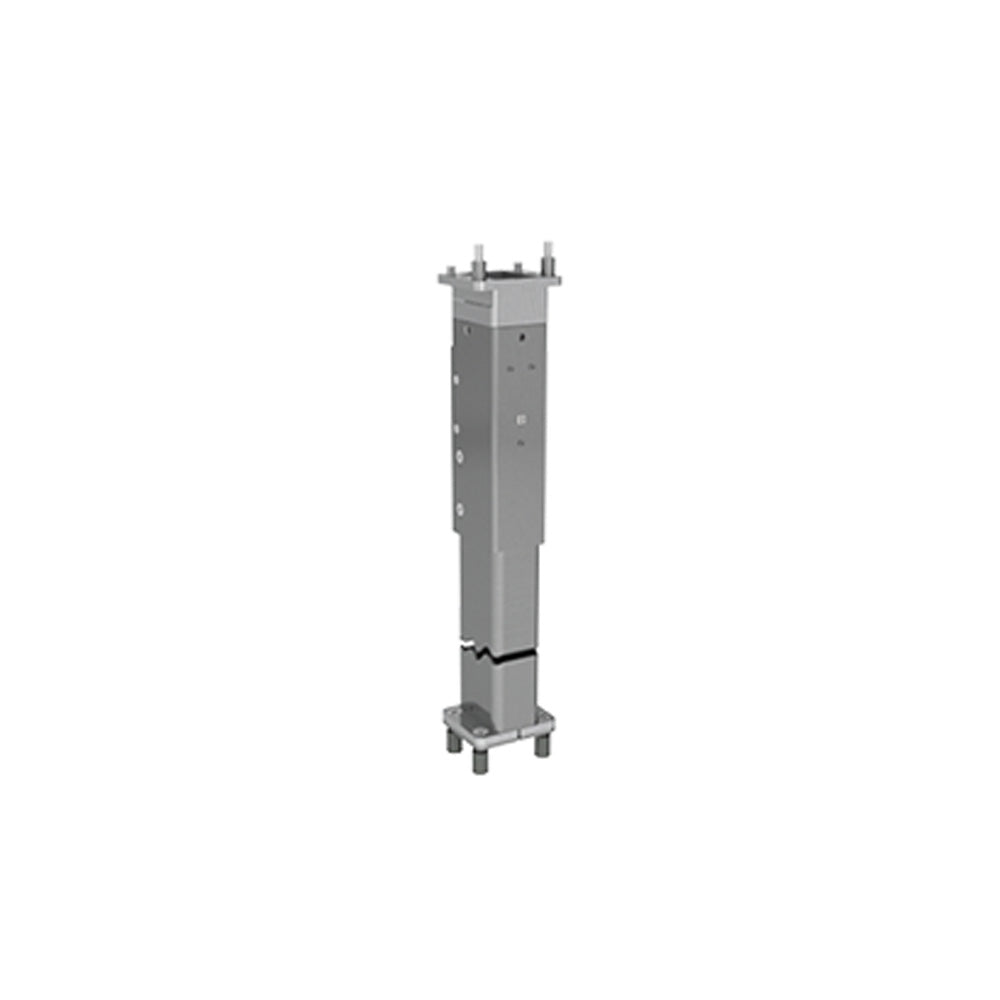

HAGER - 4900U - Panic Rated Non-Keyed Removable Mullion Set - 84 - USP - Grey Primer Only

HAGER - 4900U - Panic Rated Non-Keyed Removable Mullion Set - 84 - USP - Grey Primer Only

$509.29 USD
$611.15 USD $509.29 USD
Sale Sold out

HAGER - 4900U - Panic Rated Non-Keyed Removable Mullion Set - 84" - USP - Grey Primer Only

Specifications:
Vendor Hager Companies
Manufacturer Hager
Applications For use with 4500, 4600, and 4700 Series rim exit devices on fire rated pairs of doors
Material 11 gauge steel tube
Mullion 2" x 3" (51 mm x 76 mm) - 11 gauge steel tube
Notes Shim kits supplied standard
Shims Two (2) each 1/2" (13 mm) and 5/8" (16 mm) spacers included (top). Two (2) 1/16" (1.6 mm) shims included (bottom)
Strikes Panic rated mullions use standard rim strike supplied with exit device
Finish USP - grey primer only
Certifications:
  • UL/cUL listed for up to 3 hours for "A" label single doors
  • UL 10C Positive Pressure Rated
  • UL 10 B Negative Pressure Rated
Fasteners:
  • Four (4) each 5/16" - 18 x 5/8" (16 mm) FHPMS (top bracket)
  • Two (2) each 5/16" - 18 x 1-1/2" (38 mm) FHPMS (top bracket)
  • Four (4) each 5/16" - 18 x 1-1/2" (38 mm) FHMS (bottom bracket)
  • Four (4) each 5/16" - 18 masonry anchors (bottom bracket)
  • Two (2) each 1/4"- 20 x 1-1/4" FHPMS (top fitting)
  • Two (2) each 1/4"- 20 thru bolts (top fitting)
  • Two (2) #10 - 24 x 3/8"- 20 x 1-1/4" FHPMS (top fitting)
