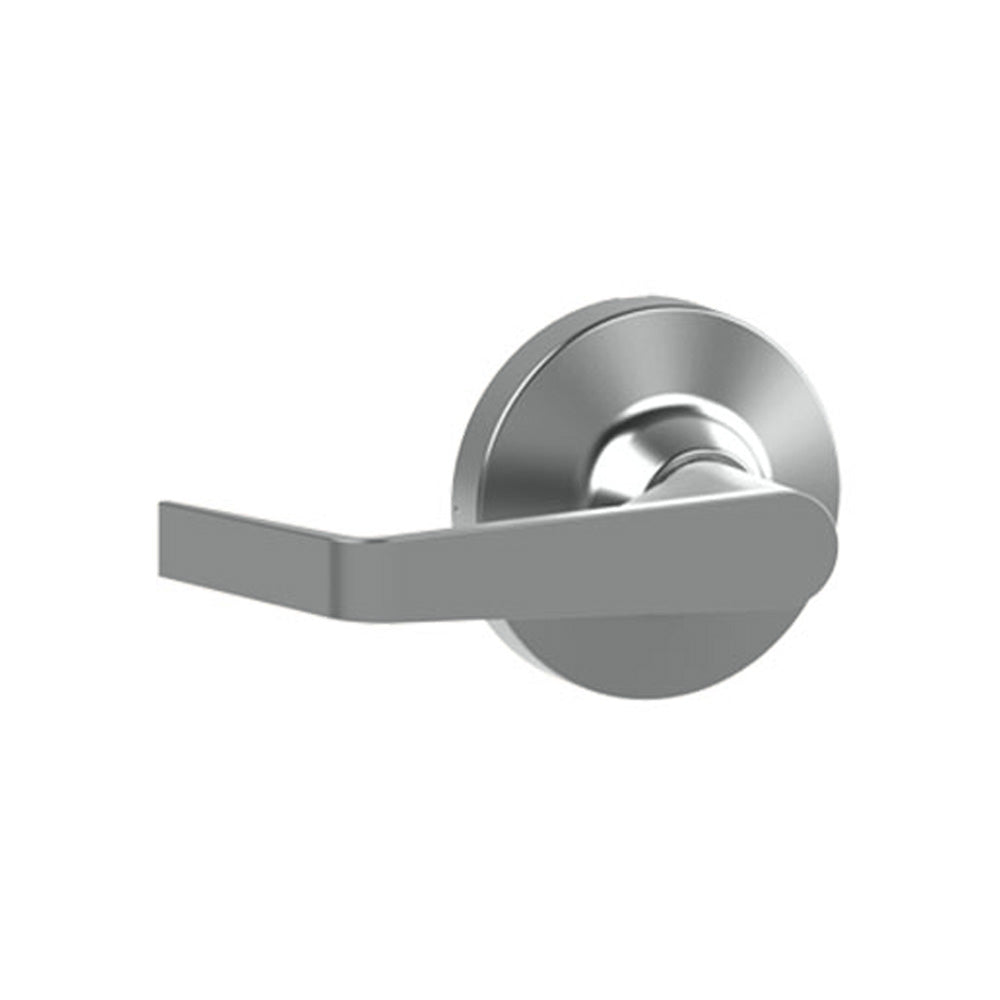

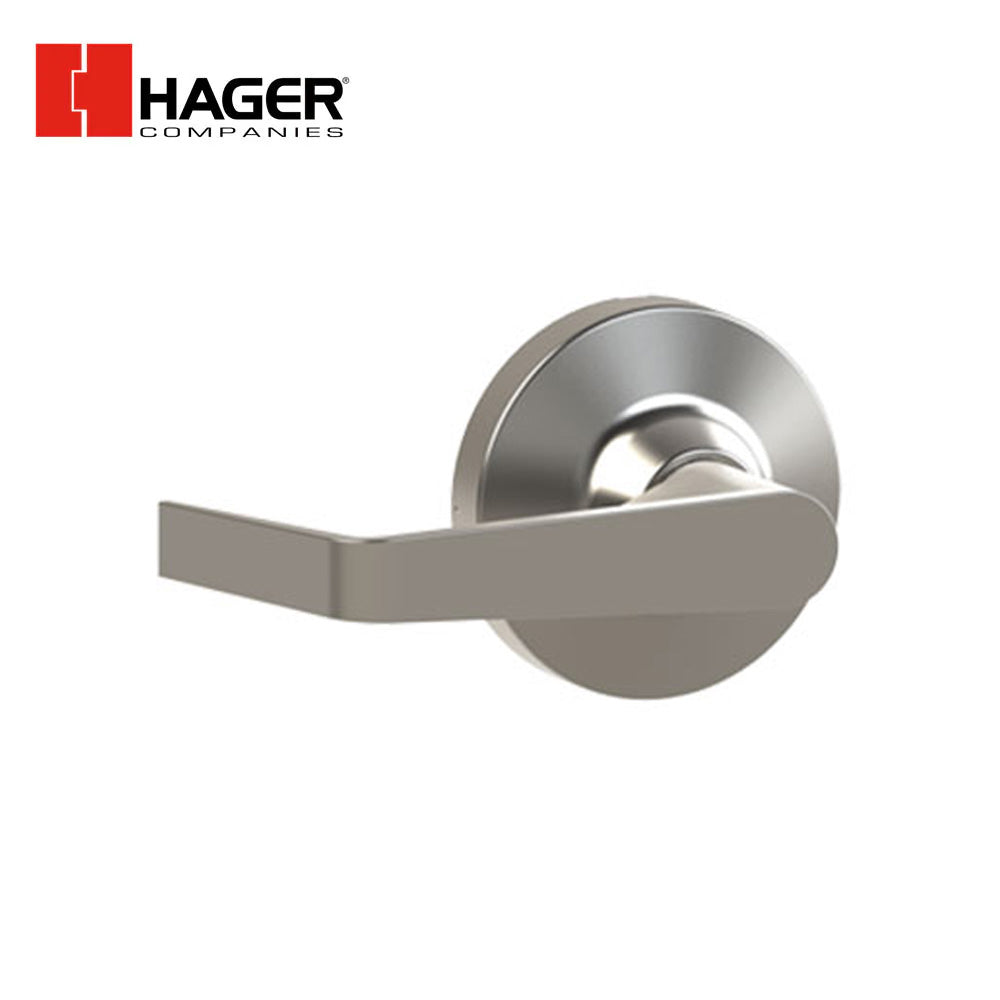

HAGER - 47KP - Passage Trim for 4700 Series Exit Device - Withnell Lever Style - Grade 1
HAGER - 47KP - Passage Trim for 4700 Series Exit Device - Withnell Lever Style - Grade 1
Regular price
$183.50 USD
Regular price
$220.20 USD
Sale price
$183.50 USD
Unit price
per
Couldn't load pickup availability
HAGER - 47KP - Passage Trim for 4700 Series Exit Device - Withnell Lever Style - Grade 1
Features:
- ANSI Function: 14 - Entrance by trim when latch bolt is released by lever; always active; no cylinder
- Lever Design: WTN Withnell
- Rose Diameter: 3-3/8"
- Projection: 3-1/16"
- Standard Door Prep: 2-1/8��� diameter (cross bore), Turtle Prep compatible ANSI A156.115
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Installation | Commercial |
| Grade | Grade 1 |
| Unit of Measure | Each |
| Limited Warranty | 5 Years |
Technical Specifications:
| Device Type | Trim |
| Mechanical Function | Lever Passage |
| Hand | Non Handed |
| Electric Options | Alarm Kit |
| Trim Type | Passage Lever |
| Trim Design | WTN - Withnell Lever |
| Door Material | Metal or Wood |
| Door Width | 30" - 36" |
| Product Type | Exit Device Trim |
