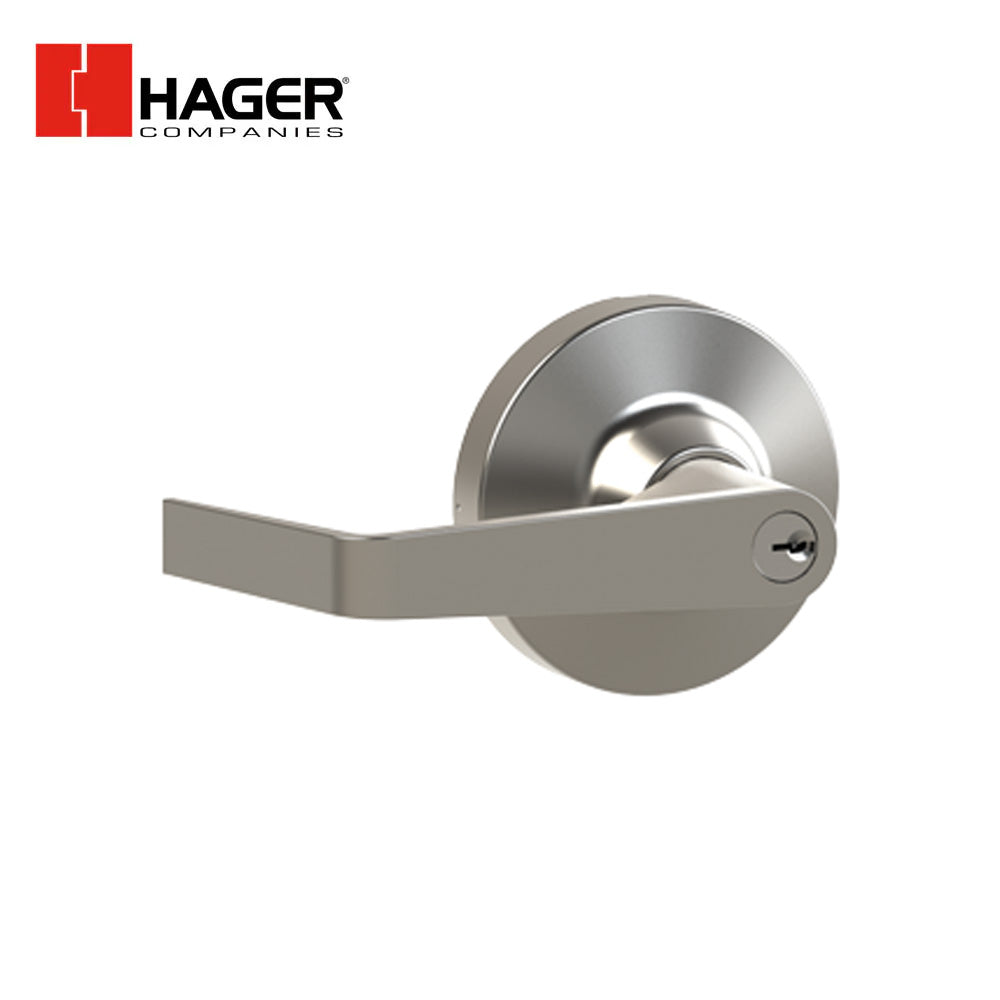

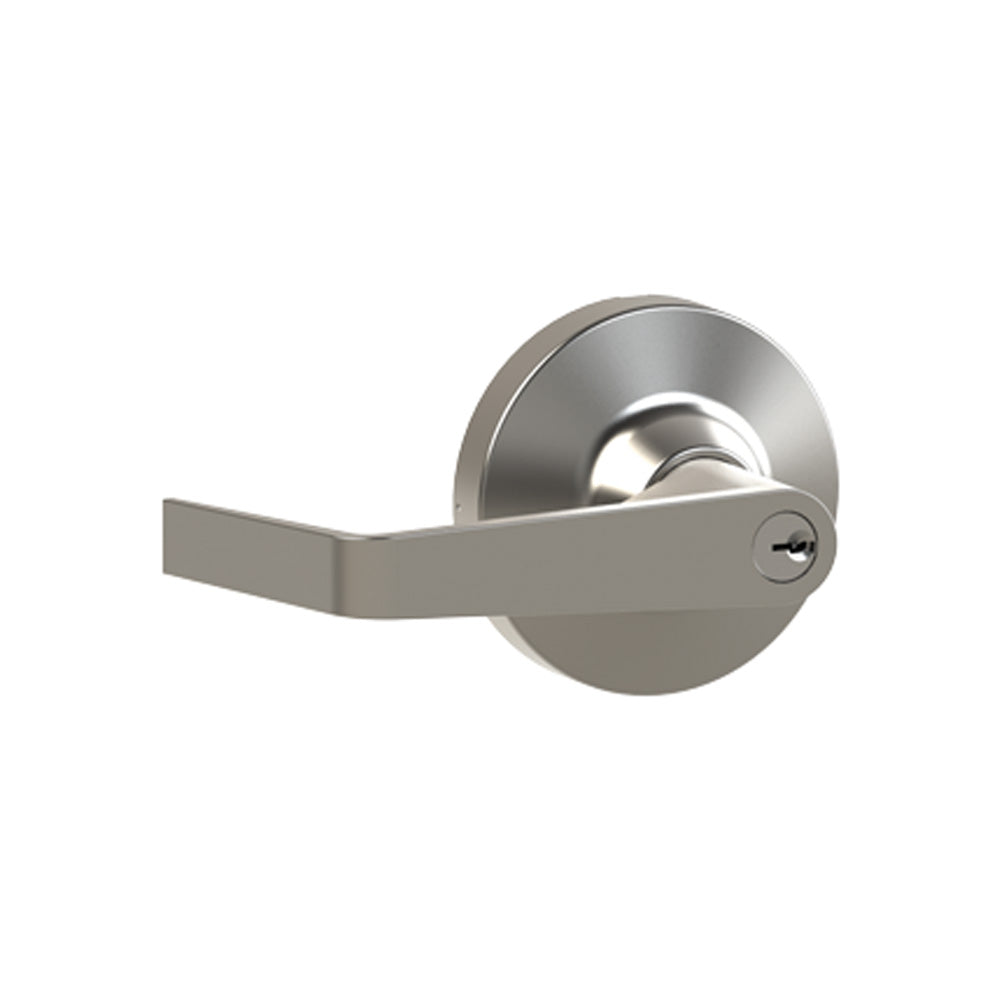

HAGER - 47KE - Key-In-Lever Entrance Trim for 4700 Series Exit Device
HAGER - 47KE - Key-In-Lever Entrance Trim for 4700 Series Exit Device
Regular price
$200.49 USD
Regular price
$240.59 USD
Sale price
$200.49 USD
Unit price
per
Couldn't load pickup availability
HAGER - 47KE - Key-In-Lever Entrance Trim for 4700 Series Exit Device
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Manufacturer Warranty | 5 Years |
Technical Specifications:
| Physical Appearance | Key-in-Lever |
| Device Type | Trim |
| Mechanical Function | Lever Classroom |
| Trim Type | Classroom Lever |
| Trim Design | WTN - Withnell Lever |
| Cylinder Type | Conventional Cylinder |
| Door Material | Metal or Wood |
| Keying | Keyed Different |
| Door Width | 30" - 36" |
| Product Type | Exit Device Trim |
| Projection | 3-1/16" |
| Rose Diameter | 3-3/8" (86 mm) |
| Certifications | Complies with ANSI A117.1 for accessible buildings and facilities (levers only) |
Cylinders/Cores:
- Conventional cylinder, C keyway - standard on levers and knob
- Small Format Interchangeable Core housing available on levers only (cylinder sold separately, 3981 or 3982)
- Other keying options available from factory
Standard Door Prep:
- 2-1/8" (54 mm) diameter (cross bore)
- Turtle Prep compatible ANSI A156.115
Notes:
- 4700 have steel bodies and zinc handles. The exception being US32D which has a stainless steel rose.
