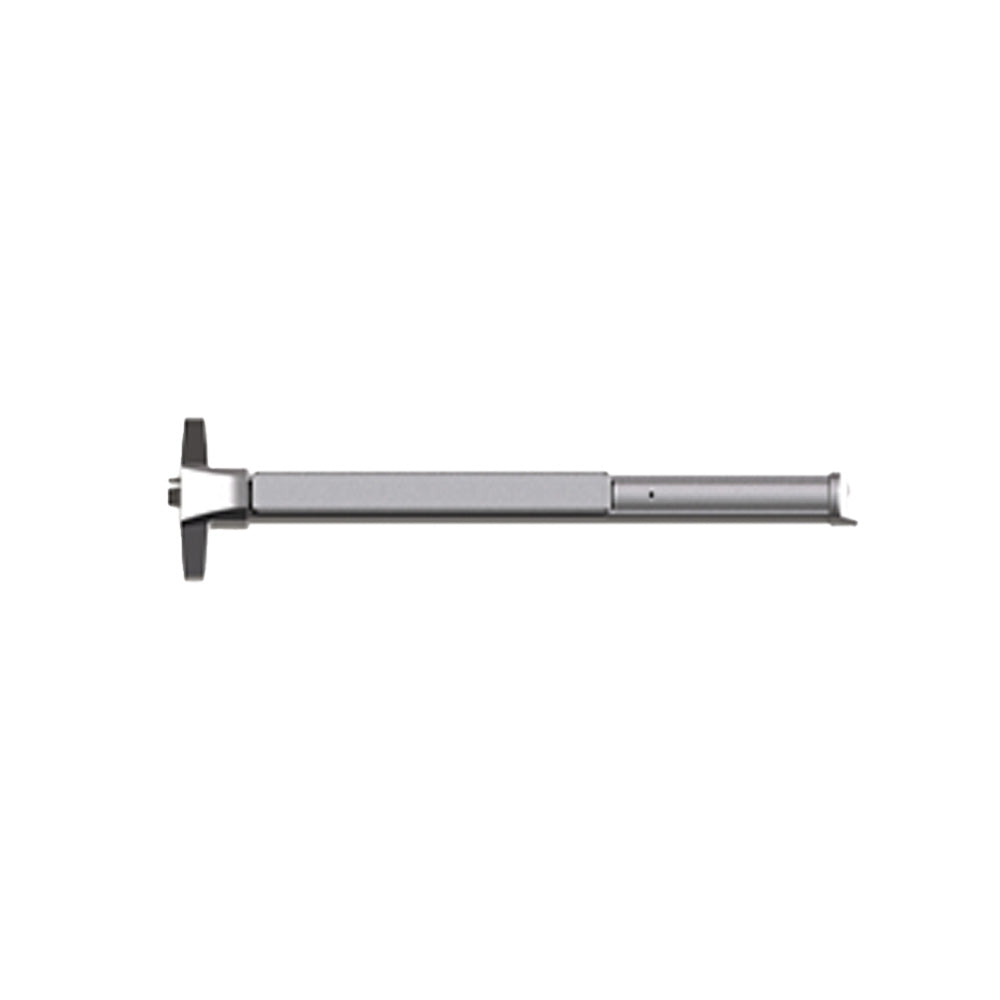

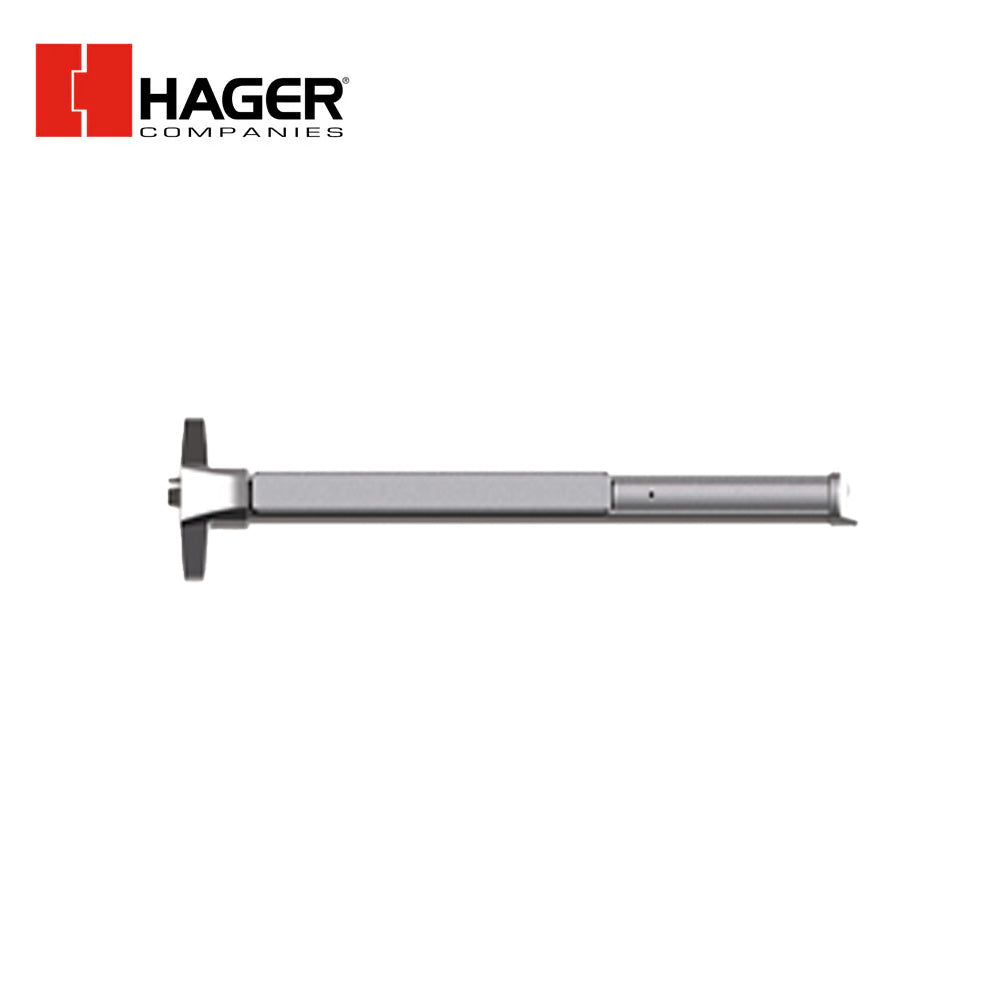

HAGER - 4601 - Rim Exit Bar Narrow Stile Pushpad and 36 Device Exit Only - Non-Handed - Grade 1 - Satin Chrome
HAGER - 4601 - Rim Exit Bar Narrow Stile Pushpad and 36 Device Exit Only - Non-Handed - Grade 1 - Satin Chrome
Regular price
$1,084.69 USD
Regular price
$1,301.63 USD
Sale price
$1,084.69 USD
Unit price
per
Couldn't load pickup availability
HAGER - 4601 - Rim Exit Bar Narrow Stile Pushpad and 36" Device Exit Only - Non-Handed - Grade 1 - Satin Chrome
Product Specifications:
| Vendor | Hager Companies |
| Manufacturer | Hager |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Application | Heavy Duty |
| Base Material | Aluminum |
| Limited Warranty | Lifetime |
| ADA Compliance | Yes |
Technical Specifications:
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 36" |
| Hand | Non Handed |
| Door Material | Metal or Wood |
| Door Width | 30" - 36" |
| Product Type | Rim Exit Devices |
| Projection | 3" (76mm) in undogged position 2-5/8" (67mm) in dogged position |
| Latchbolt Type | Top - 1/2" (13mm) throw, stainless steel Bottom - 1/2" (13mm) throw, held retracted during door swing, stainless steel |
| Fasteners | Wood and machine screws Thru-bolts |
| Door Thickness | 1-3/4" (44 mm) - Standard |
| Finish | 626 - Satin Chrome |
Certifications:
- ANSI/BHMA A156.3-2014 Grade 1
- UL305 Listed for Panic Hardware
- UL/cUL Listed for up to 3 hours for "A" labeled doors up to 10' in height
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Complies with ANSI A117.1 for accessible buildings and facilities
Stile Width:
- 2-1/8" (54mm) - Minimum stile width required for 1/2" (13mm) blade stop frame and 4950 blade stop strike
- 3-1/4" (83mm) - Minimum stile width required for single door, 5/8" (16mm) stop and 4920 standard strike
- 3-3/4" (95 mm) - Minimum stile width required for double door x mullion x 4920 strike
- 2-3/4" (70 mm) - Minimum stile width required for double doors with 2" (51mm) mullion and 4952 semi-flush mount strike
- All stile widths are measured from door edge
Dogging:
- Hex key dogging standard on panic rated devices
- Cylinder dogging available on panic rated devices - specify "CD". 3902 Mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8" (29mm) - 1-3/8" (35mm) is required
