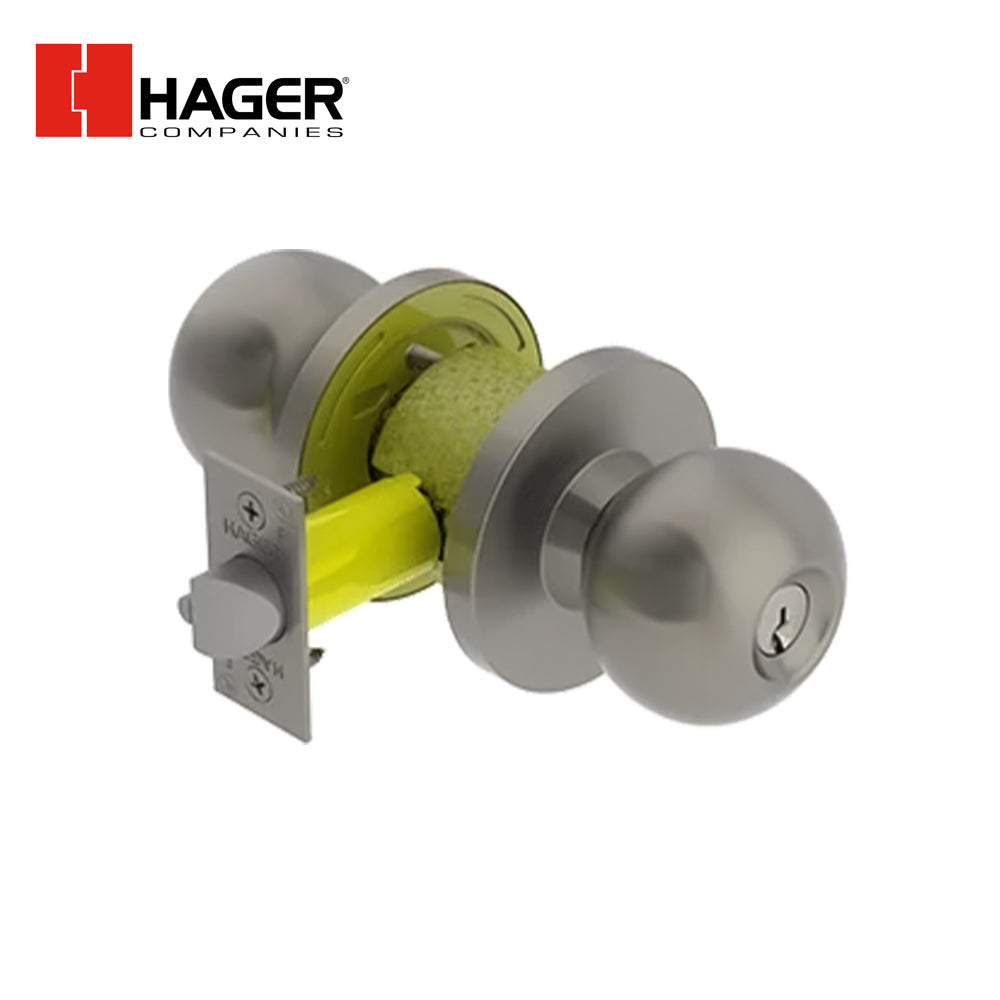

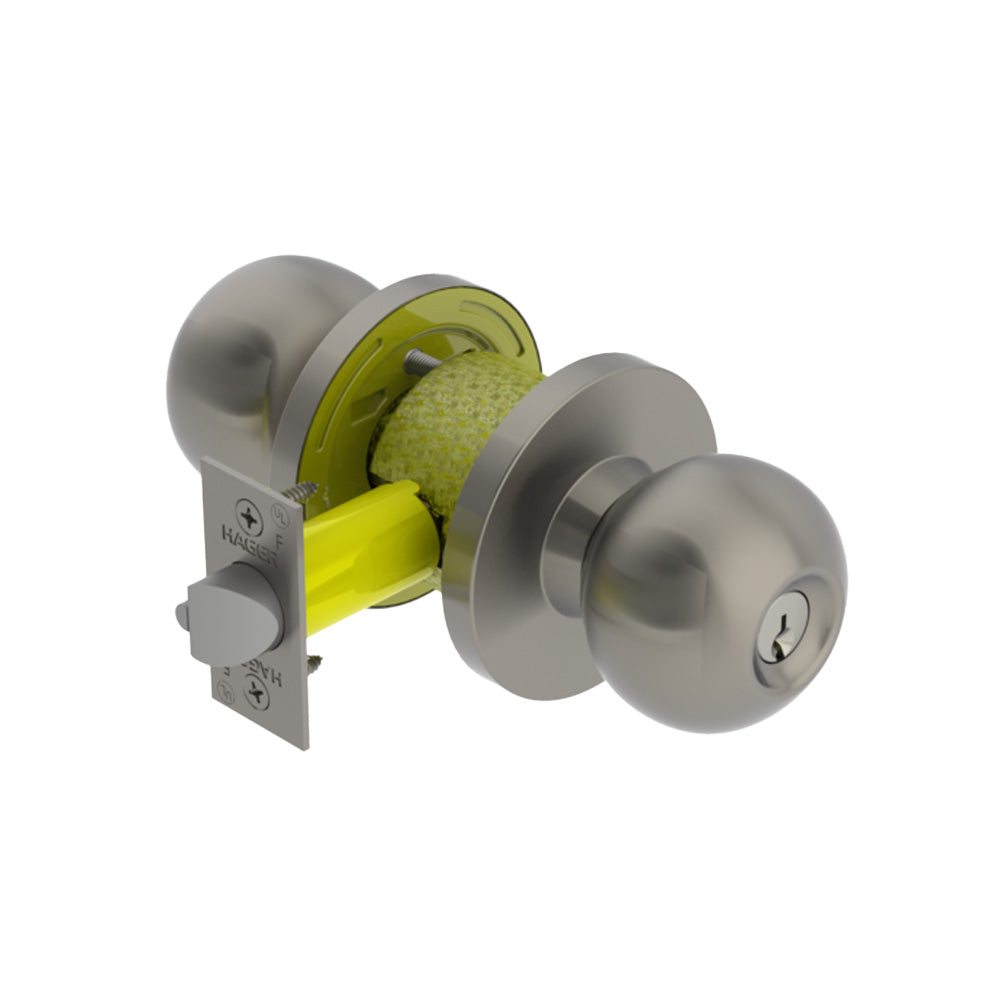

HAGER - 3580 - Storeroom Cylindrical Lock with 2-3/4" Backset and Keyed Different - ASA strike - Grade 2 - Satin Stainless Steel

HAGER - 3580 - Storeroom Cylindrical Lock with 2-3/4" Backset and Keyed Different - ASA strike - Grade 2 - Satin Stainless Steel

$62.85 USD
$75.42 USD $62.85 USD
Sale Sold out

HAGER - 3580 - Storeroom Cylindrical Lock with 2-3/4" Backset and Keyed Different - ASA strike - Grade 2 - Satin Stainless Steel

Product Specifications:
Vendor Hager Companies
Manufacturer Hager
Grade Grade 2
Installation Commercial
Unit of Measure Each
Fire Rated 3 Hours {A}
Technical Specifications:
Function Storeroom (F86)
Knob style APL-Apollo
Product Type Cylindrical Lock
Application Standard Duty Commercial
Door Thickness 1-3/8" - 1-3/4" (35 mm - 45mm)
Strike 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
Product Material Zinc
Keyway Schlage C - Standard, other keyways optional
Keying Keyed Different
Cylinder Material Brass
Rose Diameter 3-11/32" (85 mm)
Knob/Lever Size 2-1/4"
Latch Throw 1/2" Throw
Strike Type ASA Strike
Latch Corner Square and Round
Exposed Trim Wrought Brass, Bronze, and Stainless Steel
Lever Options Archer, August and Withnell
Notes No exposed mounting screws
Non-handed
Lock Chassis Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
Included Components (2) Operating Keys
Certifications:
  • BHMA Certified ANSI A156.2, Series 4000 Grade 2
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • ANSI A250.13 Severe Windstorm Component
  • UL10C Positive Pressure Rated
  • Miami Dade County, FL NOA #17-1226.23
Cylinders/Cores:
  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Latchbolt Type:
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed
Backsets:
  • 2-3/4" (70mm)
  • 2-3/8" (60mm)
  • 3-3/4" (94mm)
  • 5" (128mm)
