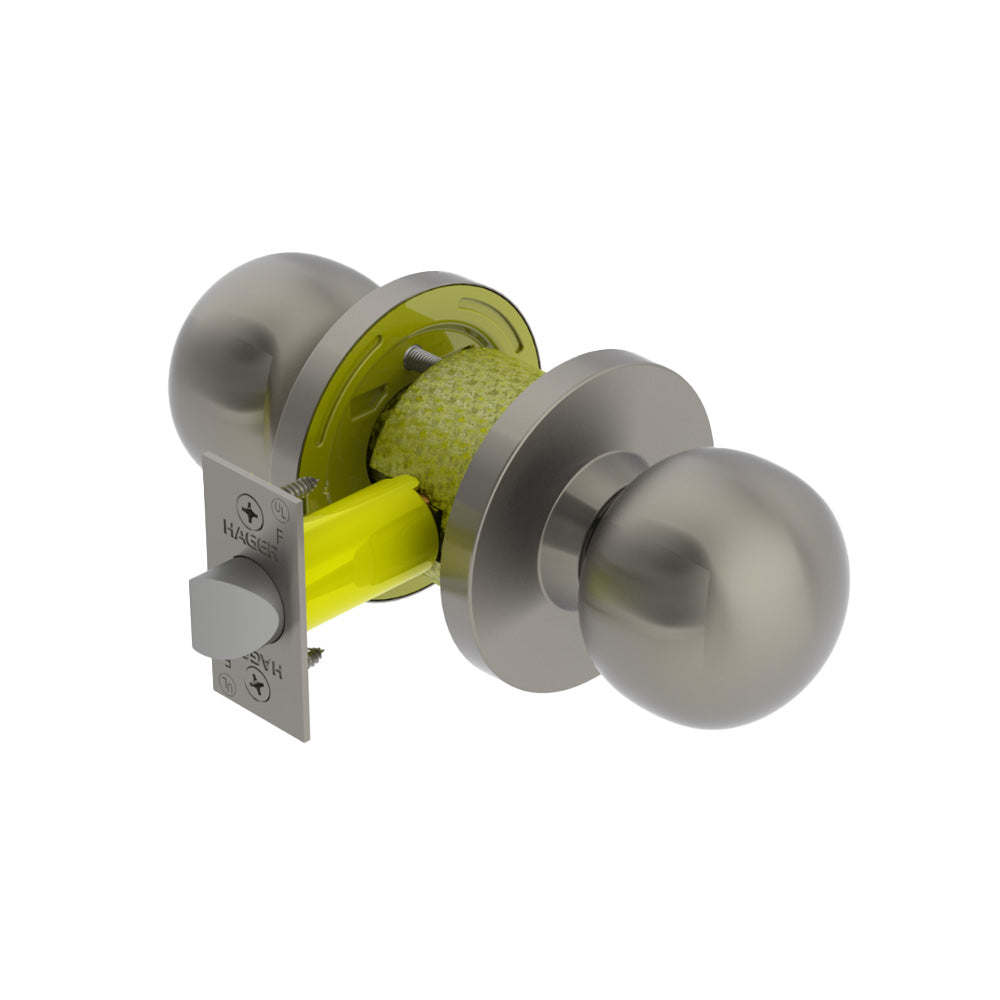

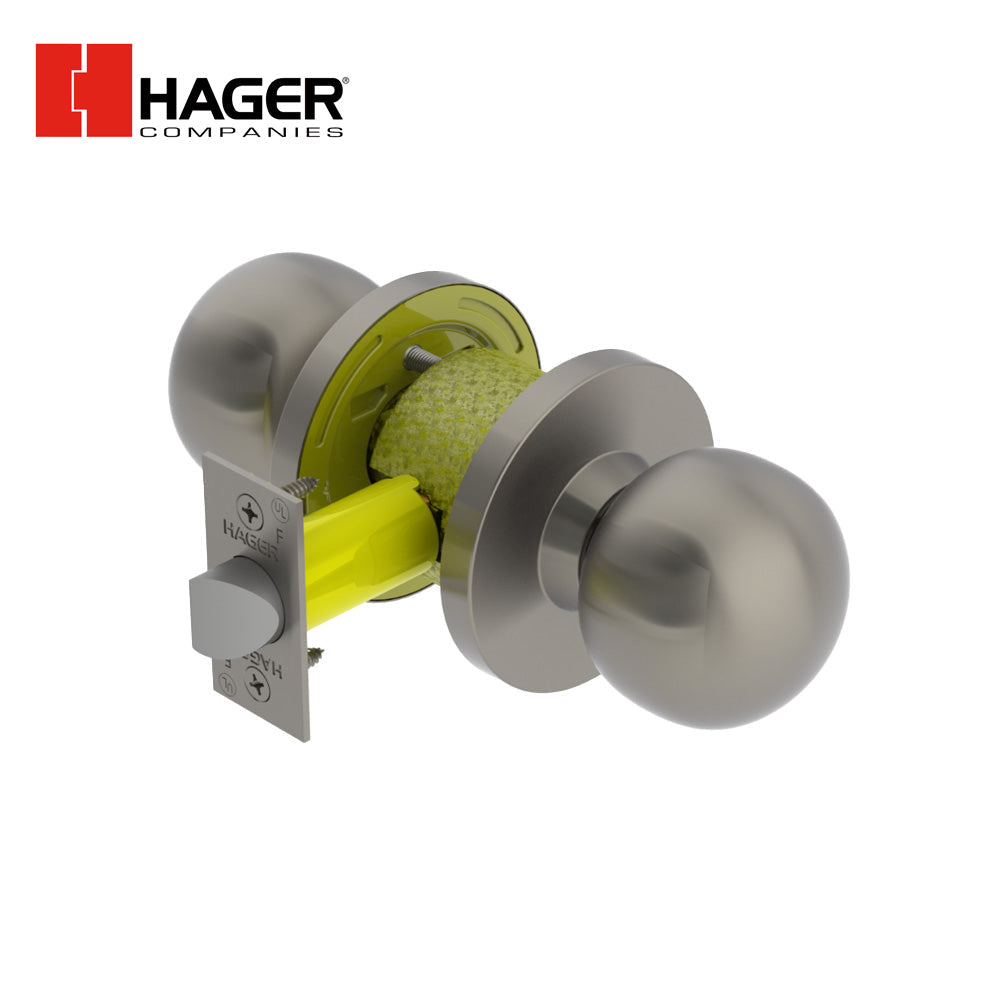

HAGER - 3510 - Apollo Passage Cylindrical Lock and 2-3/4" Backset - ASA strike - Grade 2 - Satin Stainless Steel

HAGER - 3510 - Apollo Passage Cylindrical Lock and 2-3/4" Backset - ASA strike - Grade 2 - Satin Stainless Steel

$41.62 USD
$49.94 USD $41.62 USD
Sale Sold out

HAGER - 3510 - Apollo Passage Cylindrical Lock and 2-3/4" Backset - ASA strike - Grade 2 - Satin Stainless Steel

Product Specifications:
Vendor Hager Companies
Manufacturer Hager
Grade Grade 2
Installation Commercial
Unit of Measure Each
Fire Rated 3 Hours {A}
Technical Specifications:
Function 10-Passage
Knob style APL-Apollo
Product Type Cylindrical Lock
ANSI Function F75
Application Standard Duty Commercial
Door Thickness 1-3/8" - 1-3/4" (35 mm - 45mm)
Strike 3935 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
Product Material Zinc
Rose Diameter 3-11/32" (85 mm)
Latch Number 3947
Strike Number 3935
Strike Type ASA Strike
Function Family Passage/Hall/Closet
Latch Corner Square and Round
Knob/Lever Size 2-1/4"
Latch Throw 1/2" Throw
Exposed Trim Wrought Brass, Bronze, and Stainless Steel
Lever Options Archer, August and Withnell
Features No Exposed Mounting Screws; Removable Through Bolts;
Zinc Dichromated Lock Chassis for Corrosion Resistance
Notes No exposed mounting screws
Non-handed
Lock Chassis Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
Included Components (2) Operating Keys
Function Description Latch retracted by knobs/levers at all times
Certifications:
  • BHMA Certified ANSI A156.2, Series 4000 Grade 2
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • ANSI A250.13 Severe Windstorm Component
  • UL10C Positive Pressure Rated
Latchbolt Type:
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
Backsets:
  • 2-3/4" (70mm)
  • 2-3/8" (60mm)
  • 3-3/4" (94mm)
  • 5" (128mm)
