HAGER

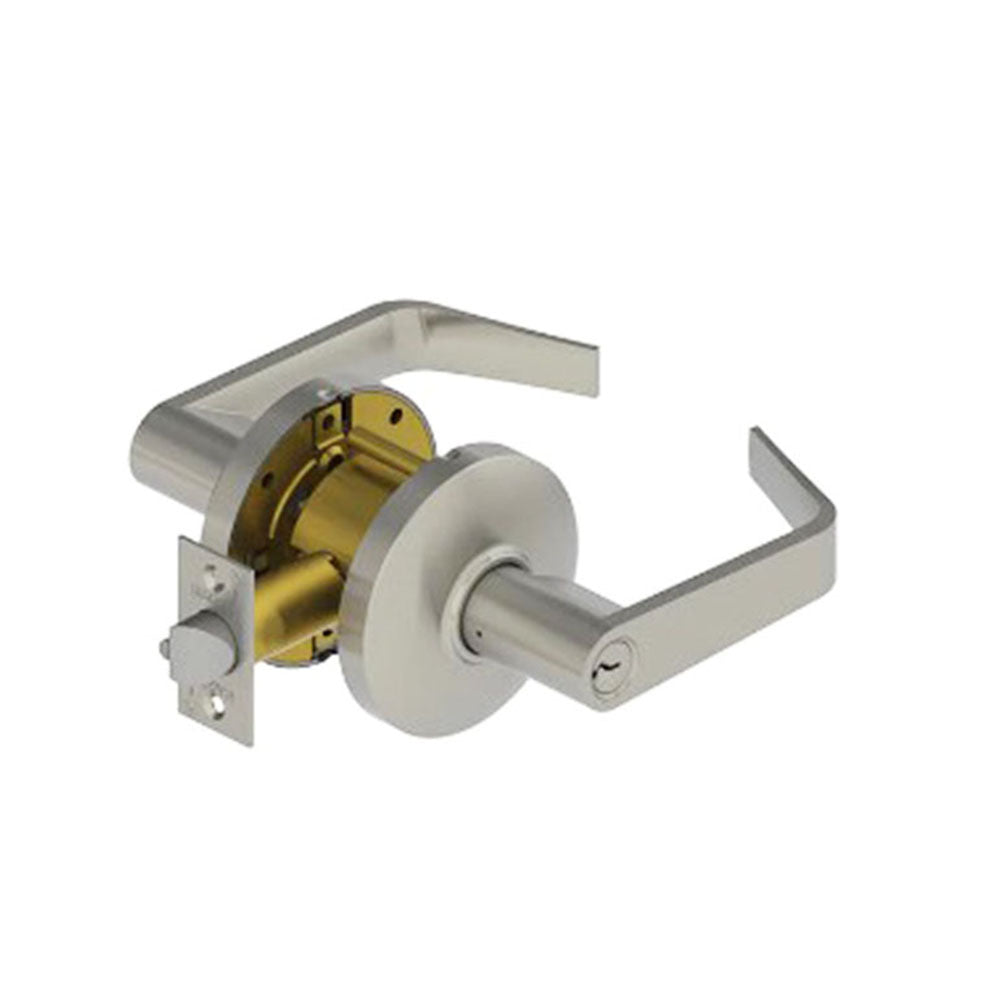

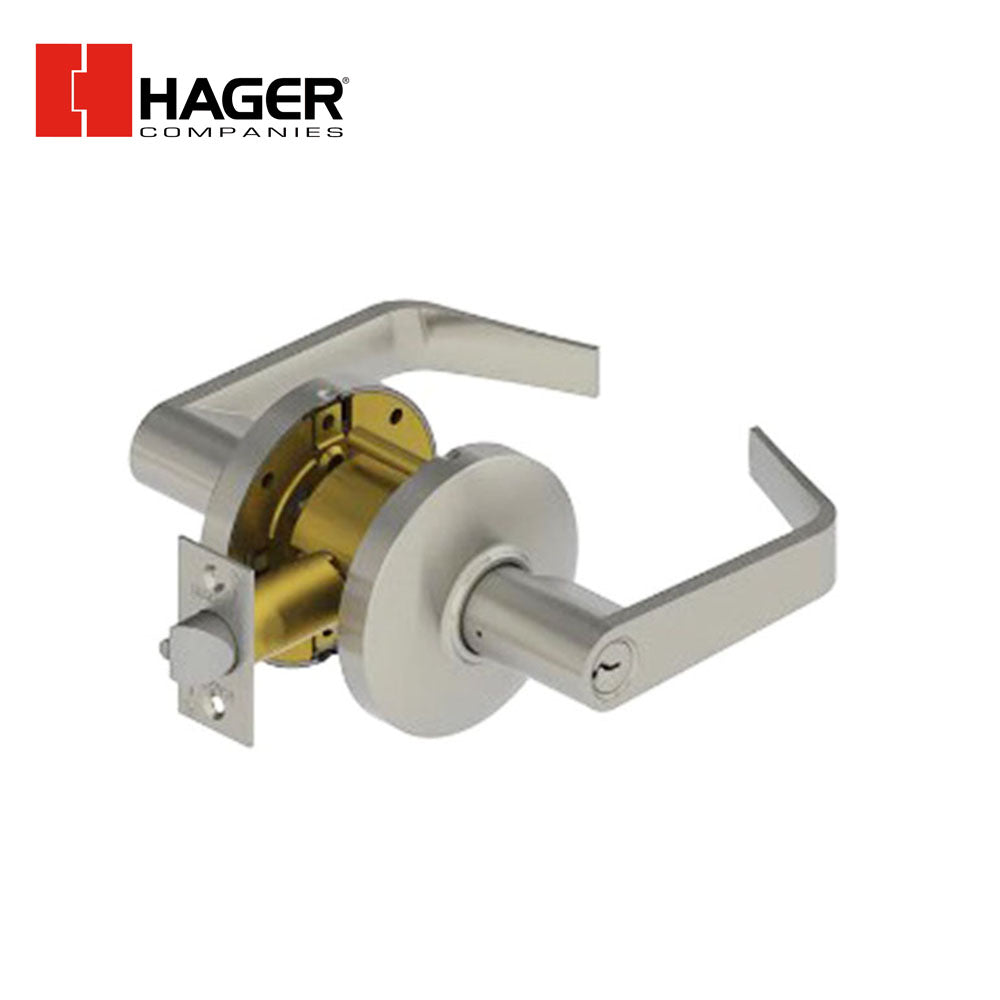

HAGER - 3495 - Classroom Security Cylindrical Lock with 6 Pin - Non-Handed - Lever-Withnell - Grade 1 - Satin Chrome
HAGER - 3495 - Classroom Security Cylindrical Lock with 6 Pin - Non-Handed - Lever-Withnell - Grade 1 - Satin Chrome
Regular price
$348.39 USD
Regular price
$418.07 USD
Sale price
$348.39 USD
Unit price
per
Couldn't load pickup availability
HAGER - 3495 - Classroom Security Cylindrical Lock with 6 Pin - Non-Handed - Lever-Withnell - Grade 1 - Satin Chrome
Product Specifications:
| Manufacturer | Hager |
| SKU | 3495 WTN 26D |
| UID | HAG3495WTN26D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Taiwan |
| Unit of Measure | Each |
| UL Listing Type | UL 10C, UL 10B |
| ANSI Number | A156.2, A117.1, A250.13 |
| Restrictions | None |
| BAA Qualified | No |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
Technical Specifications:
| Function | 95-Classroom Security |
| ANSI Function | F110 - Classroom Intruder |
| Lever/Knob Design | WTN - Withnell Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Cylinder Type | 6-Pin |
| Num Pins | 6 |
| Std. Keyway | Schlage C Keyway |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-3/8"-2" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Bolt Projection | 1/2" Latch |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 3935 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
