HAGER

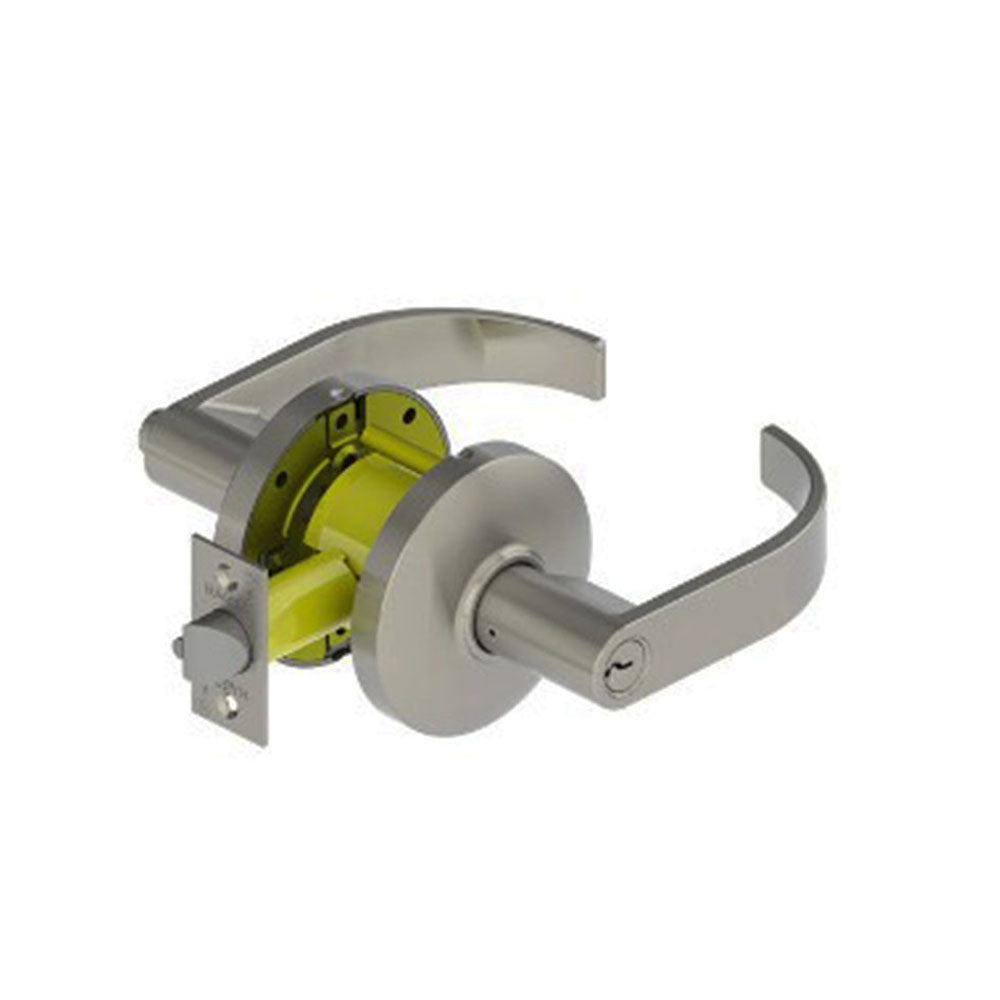

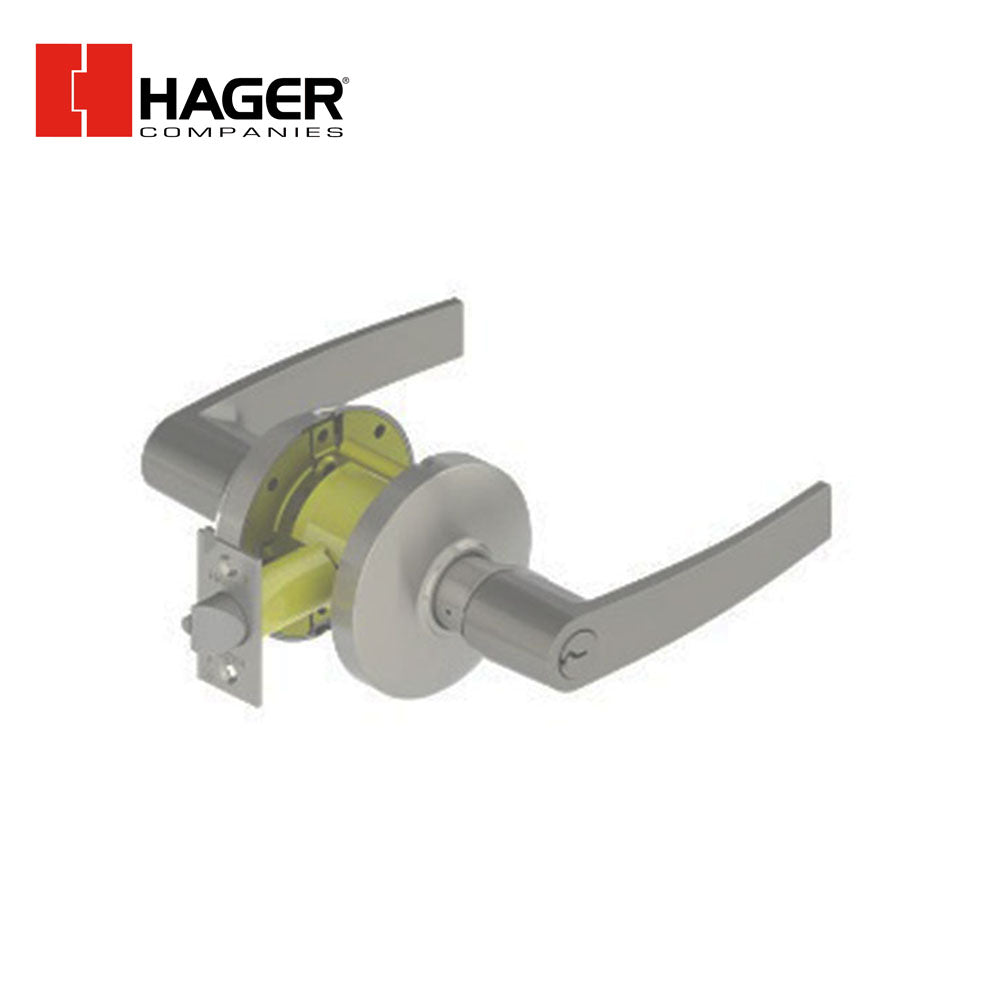

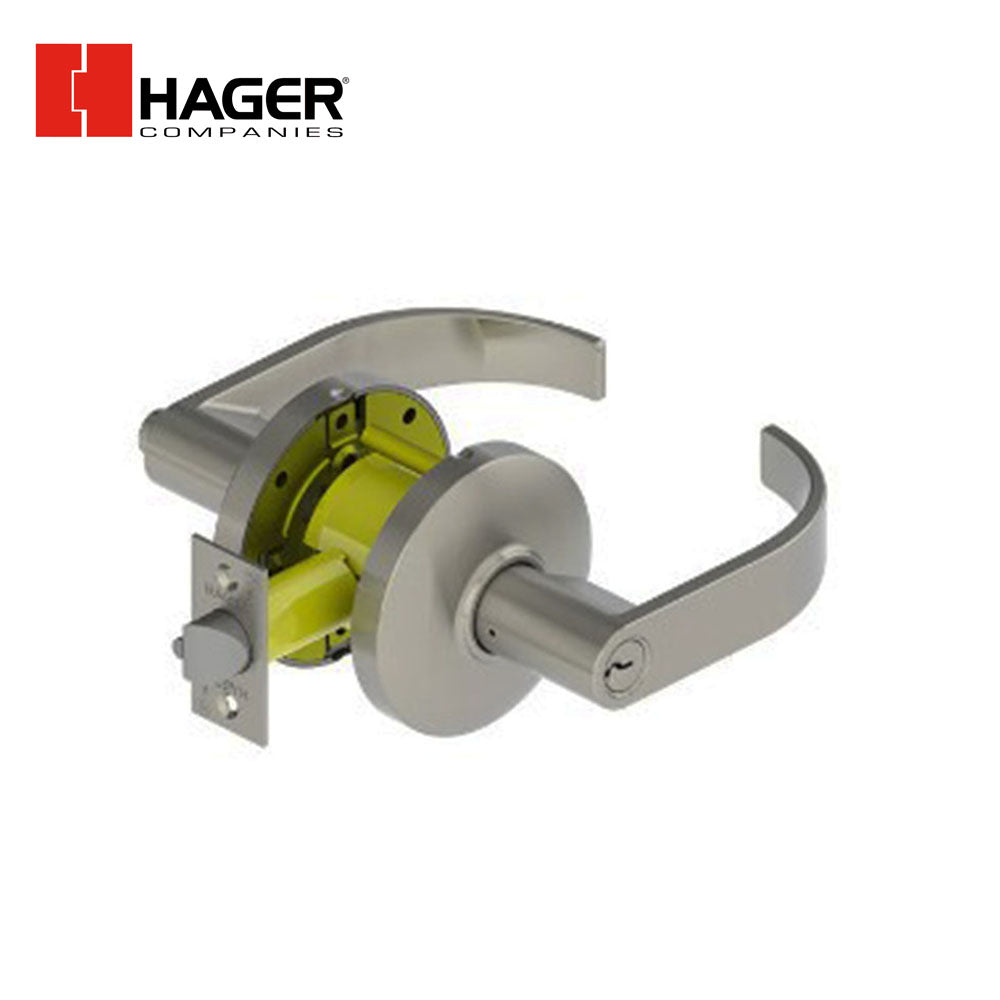

HAGER - 3410 - Passage/Closet Latch - Non-keyed - Non-Handed - Diameter Rose 3-17/32 Inch - Grade 1 - Satin Chrome
HAGER - 3410 - Passage/Closet Latch - Non-keyed - Non-Handed - Diameter Rose 3-17/32 Inch - Grade 1 - Satin Chrome
Regular price
$213.16 USD
Regular price
$255.79 USD
Sale price
$213.16 USD
Unit price
per
Couldn't load pickup availability
HAGER - 3410 - Passage/Closet Latch - Non-keyed - Non-Handed - Diameter Rose 3-17/32" - Grade 1 - Satin Chrome
Product Specifications:
| Manufacturer | Hager |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Taiwan |
| Unit of Measure | Each |
| UL Listing Type | UL 10C, UL 10B |
| ANSI Number | A156.2, A117.1, A250.13 |
| Restrictions | None |
| BAA Qualified | No |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
Technical Specifications:
| Function | 10-Passage/Closet Latch |
| ANSI Function | F75 - Passage |
| Lever/Knob Design | Archer August Withnell |
| Lever/Knob Design Family | Curved Return Straight Straight Return |
| Cylinder Type | Non-keyed |
| Handing | Non-Handed |
| Door Thickness | 1-3/8"-2" |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Bolt Projection | 1/2" Latch |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 3935 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
